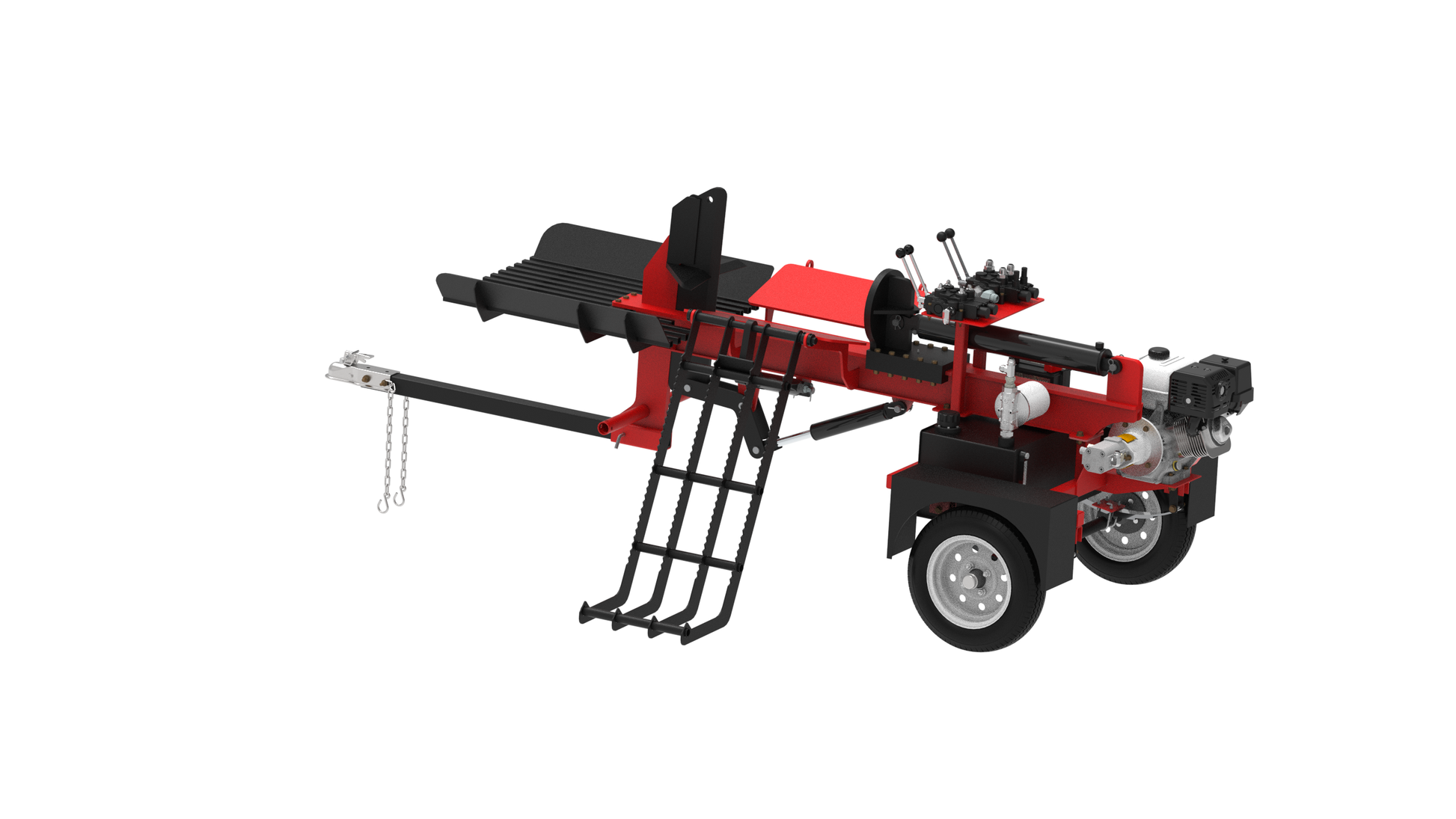

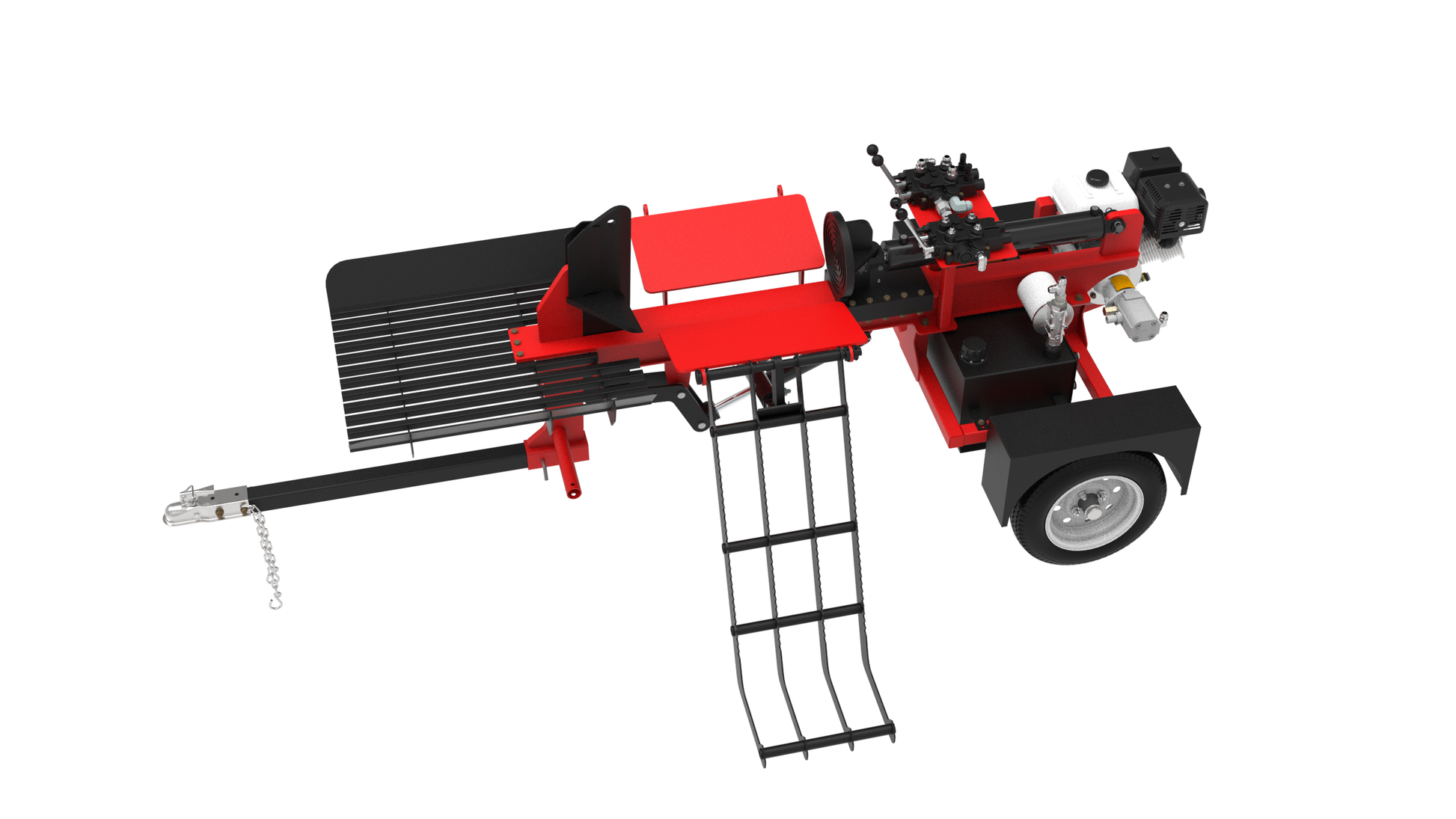

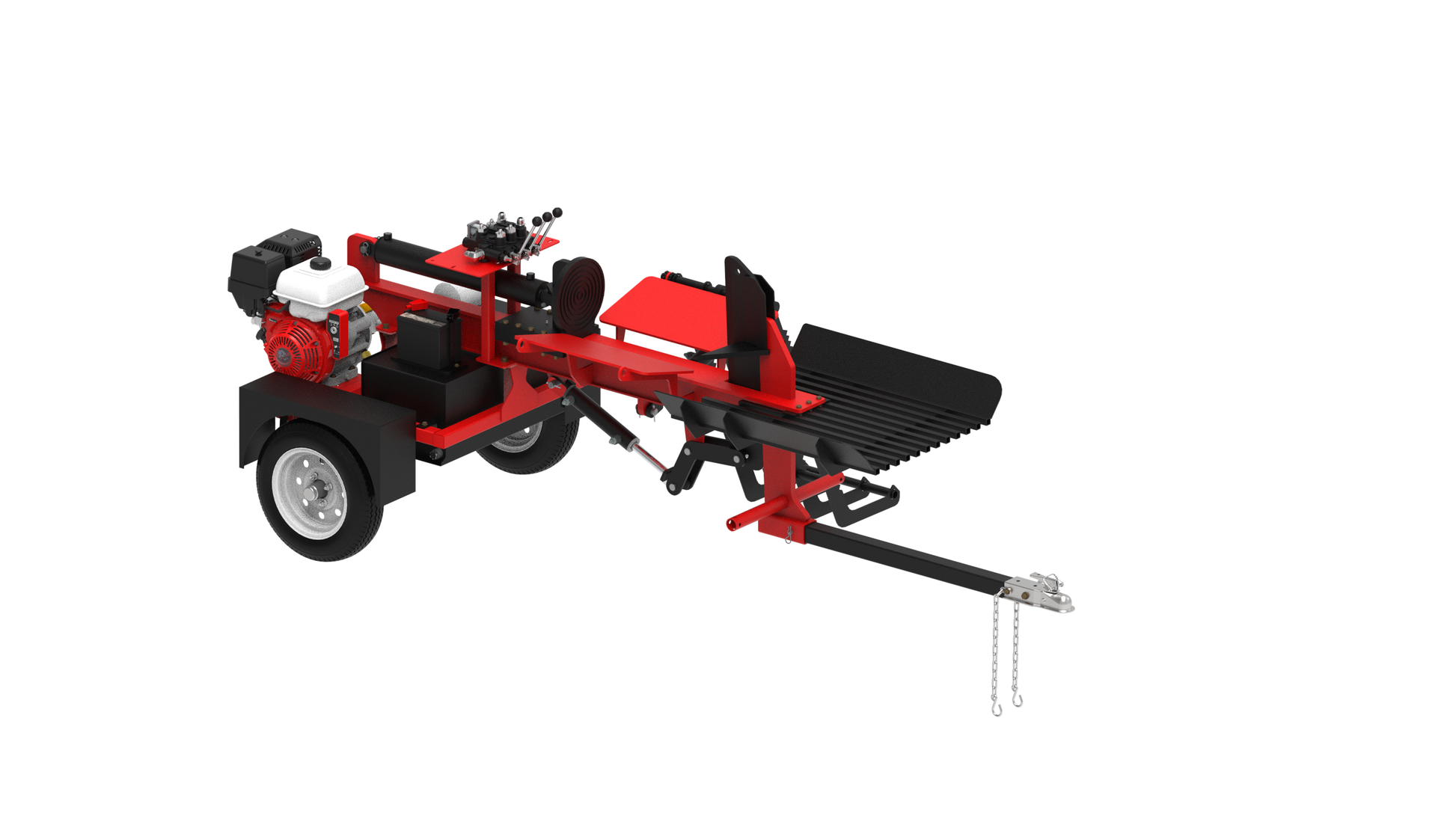

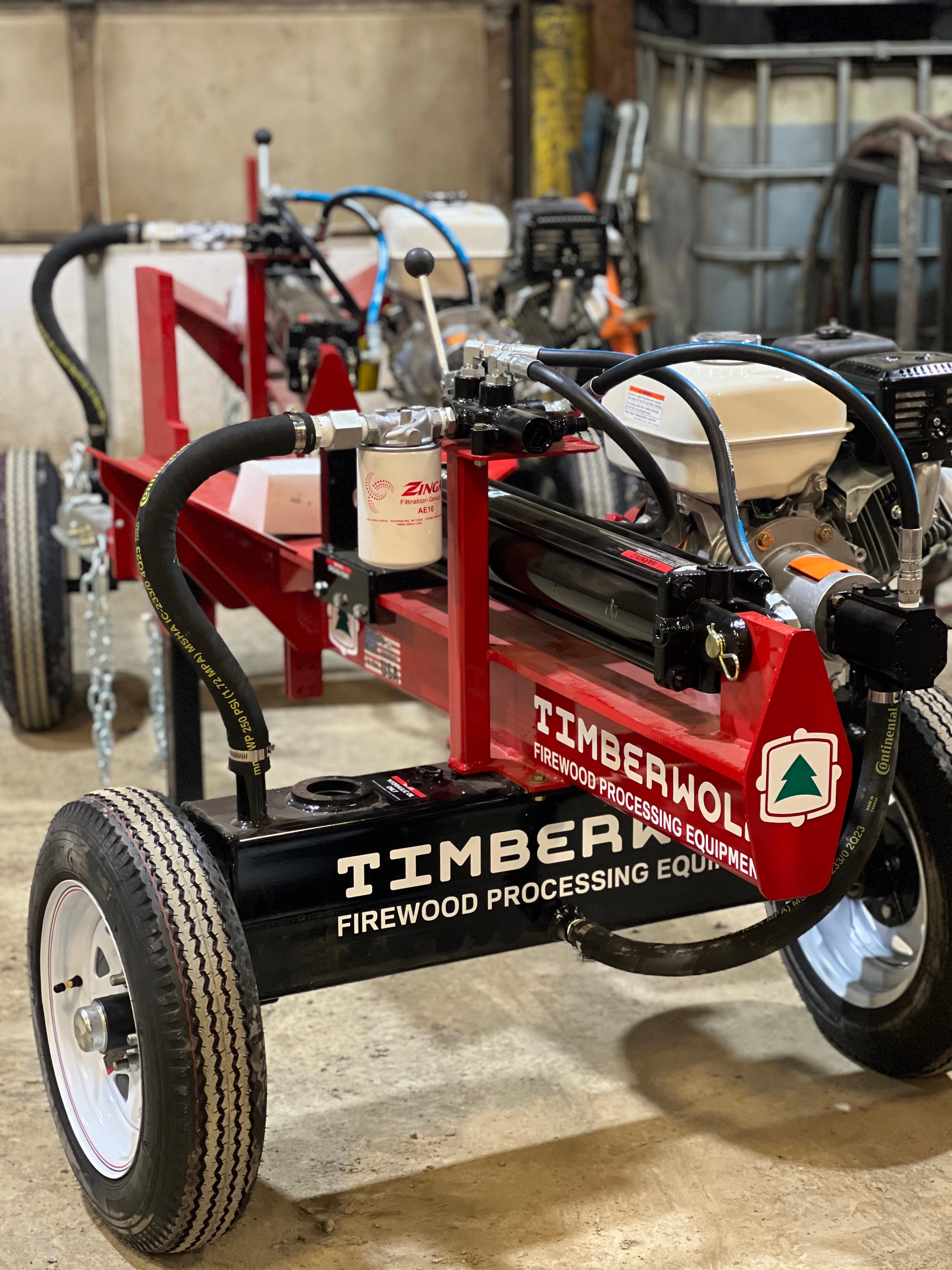

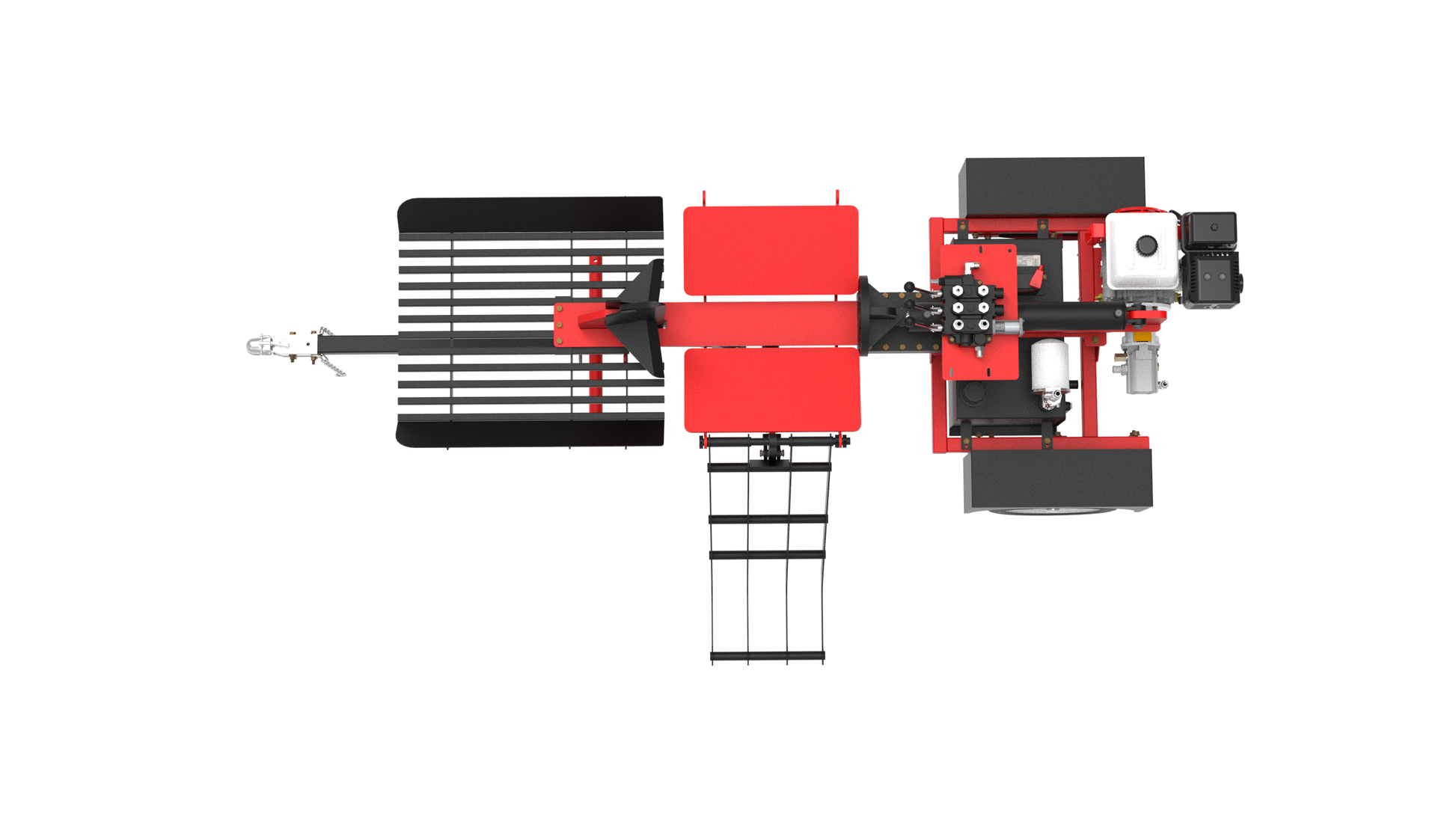

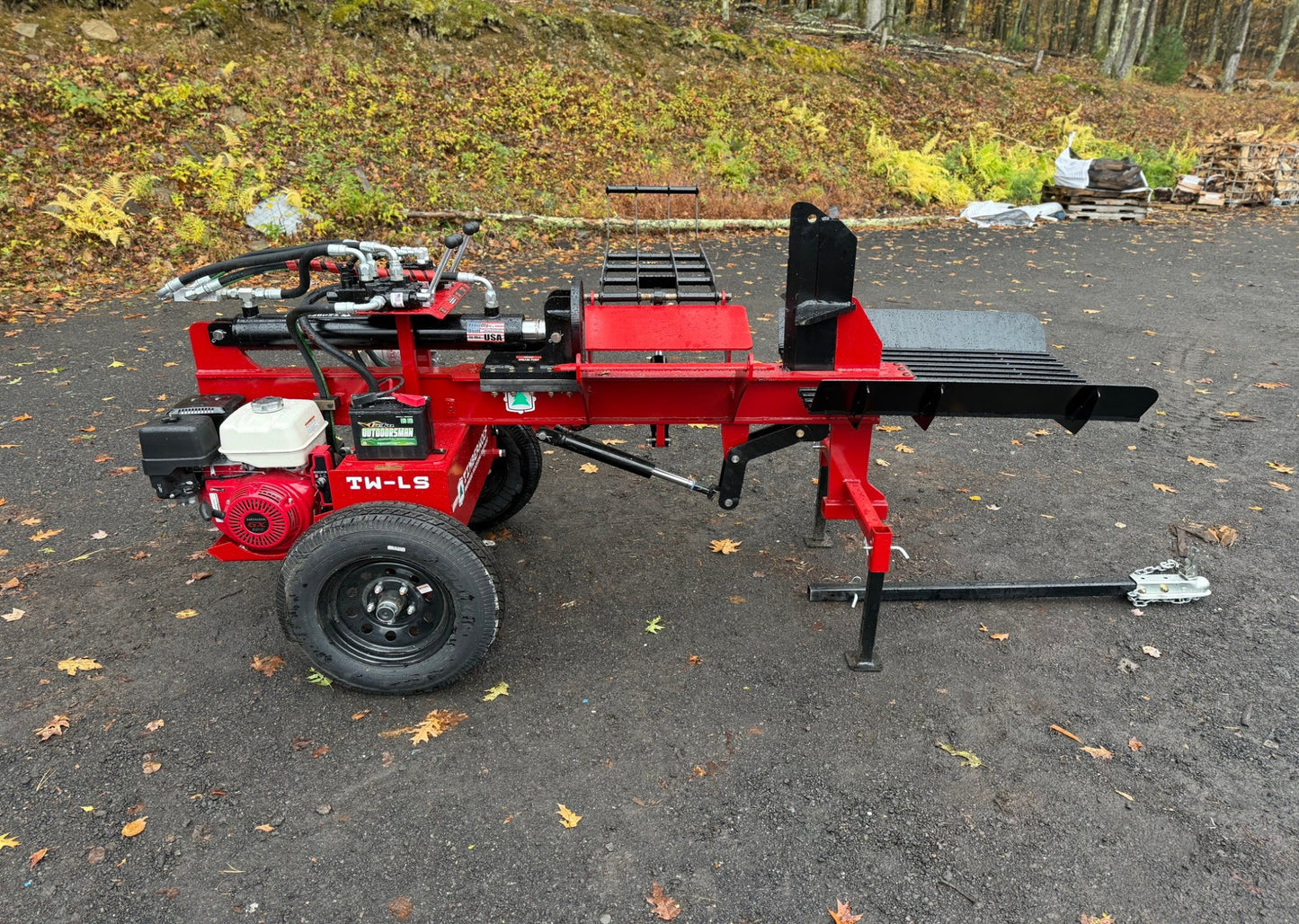

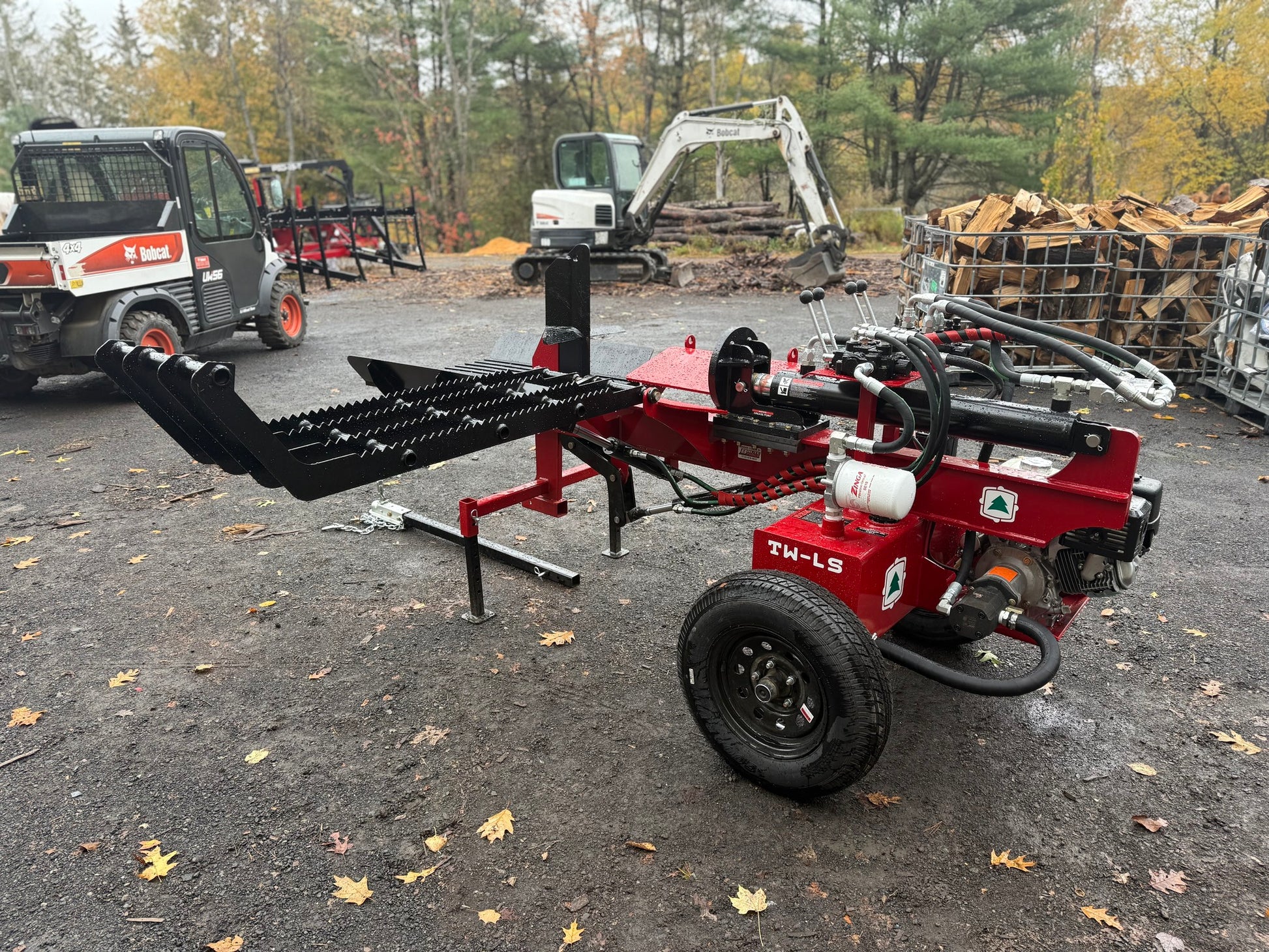

Timberwolf Firewood Processing Equipment

TW-LS

TW-LS

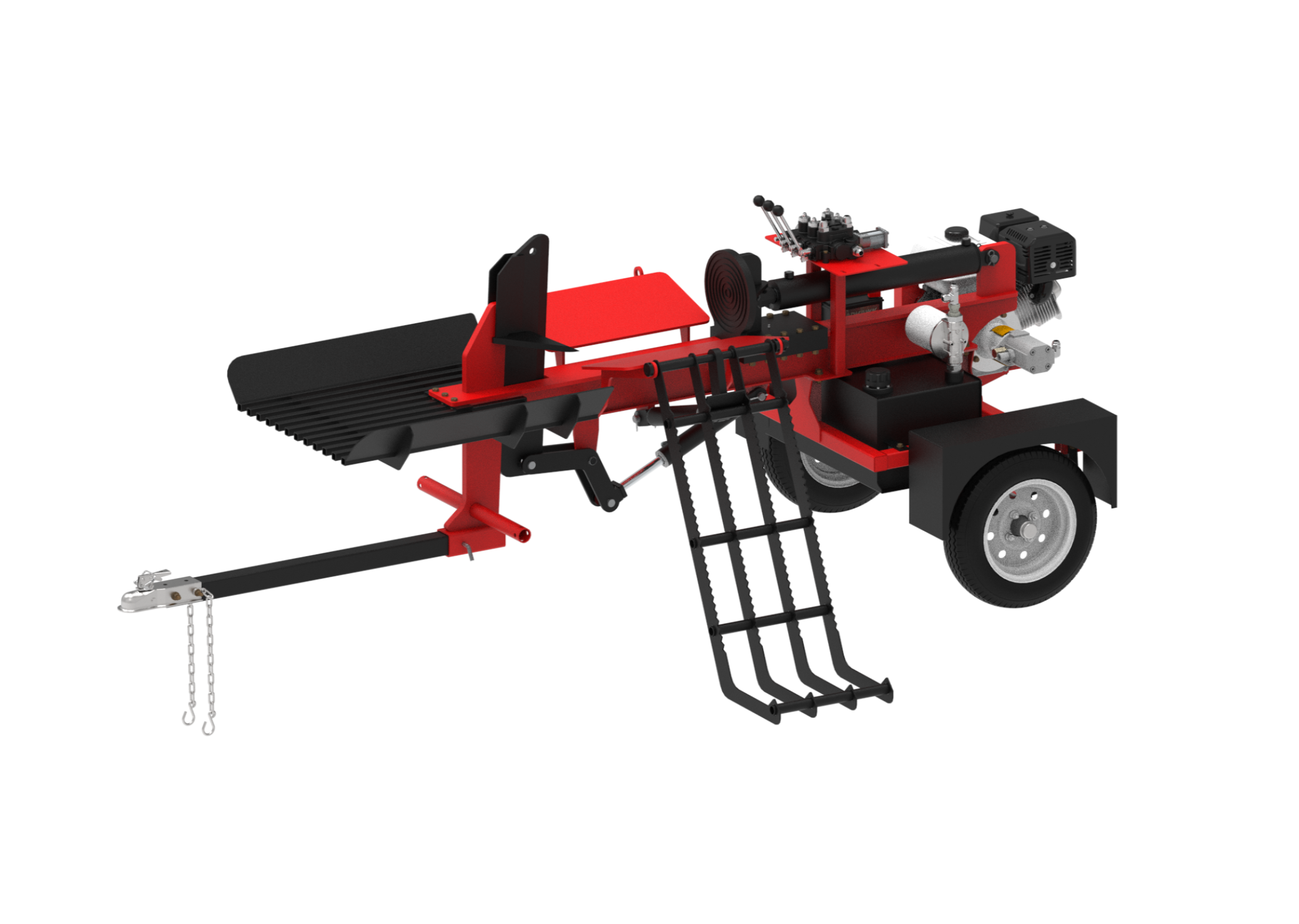

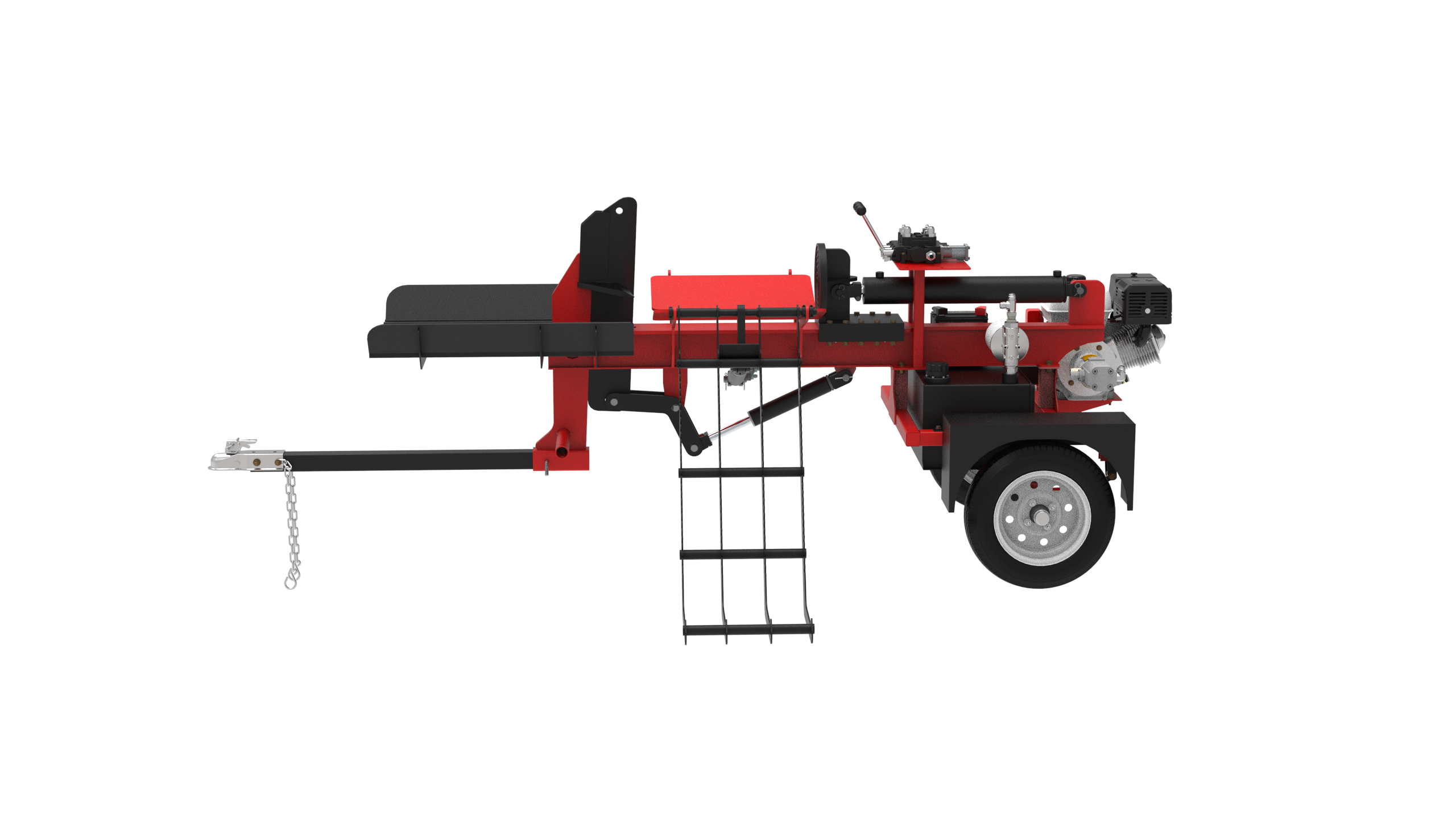

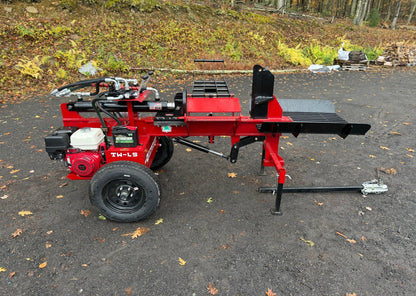

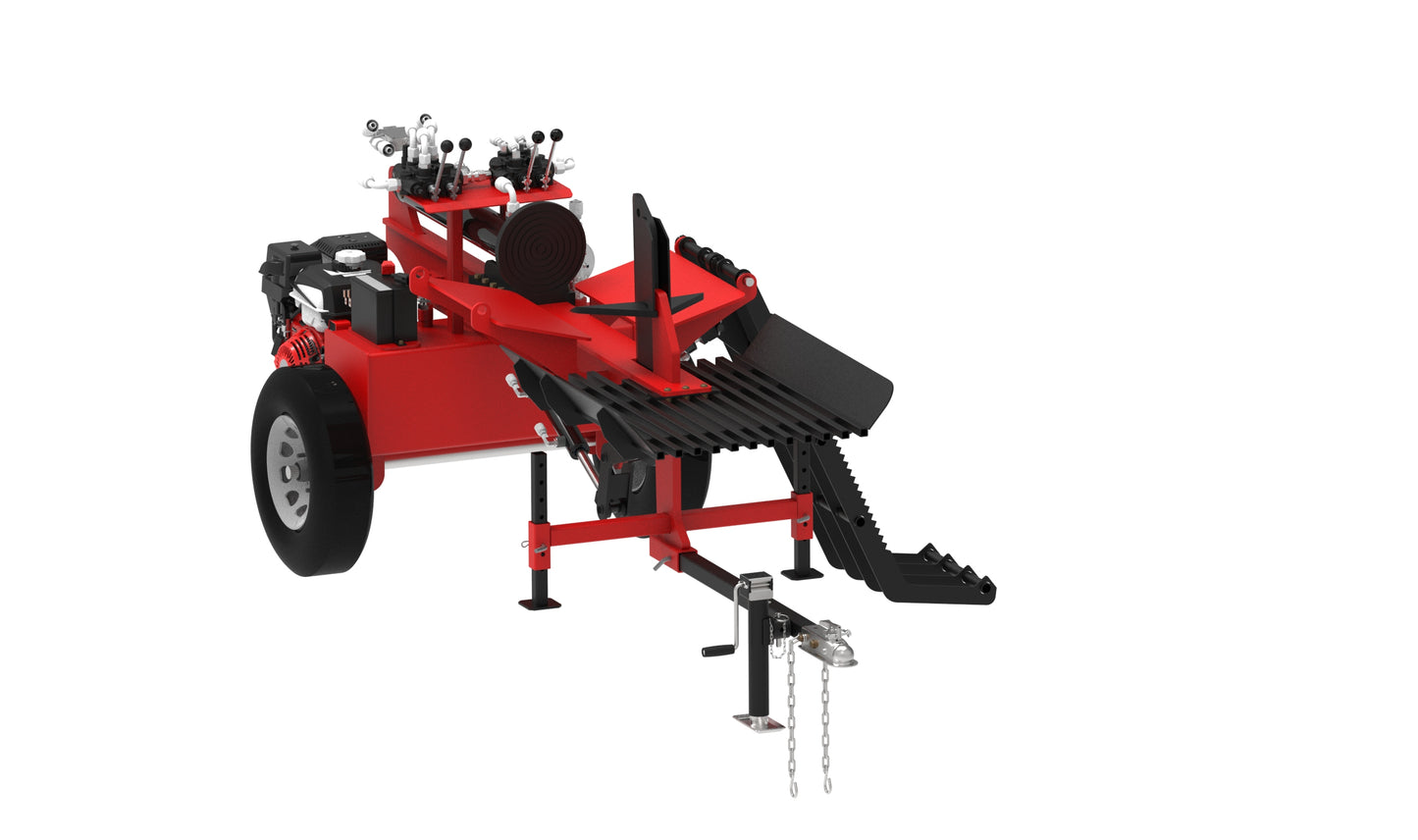

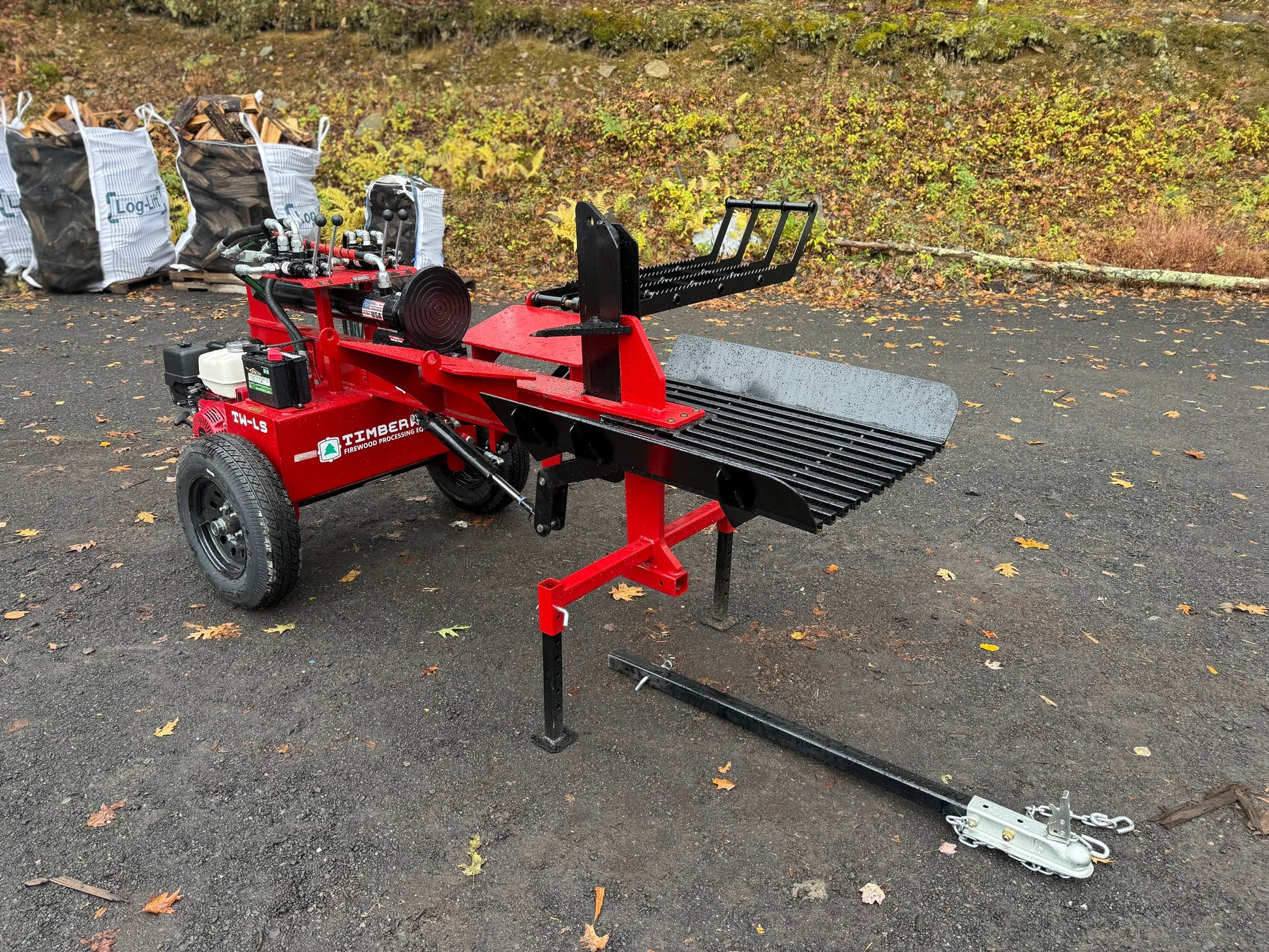

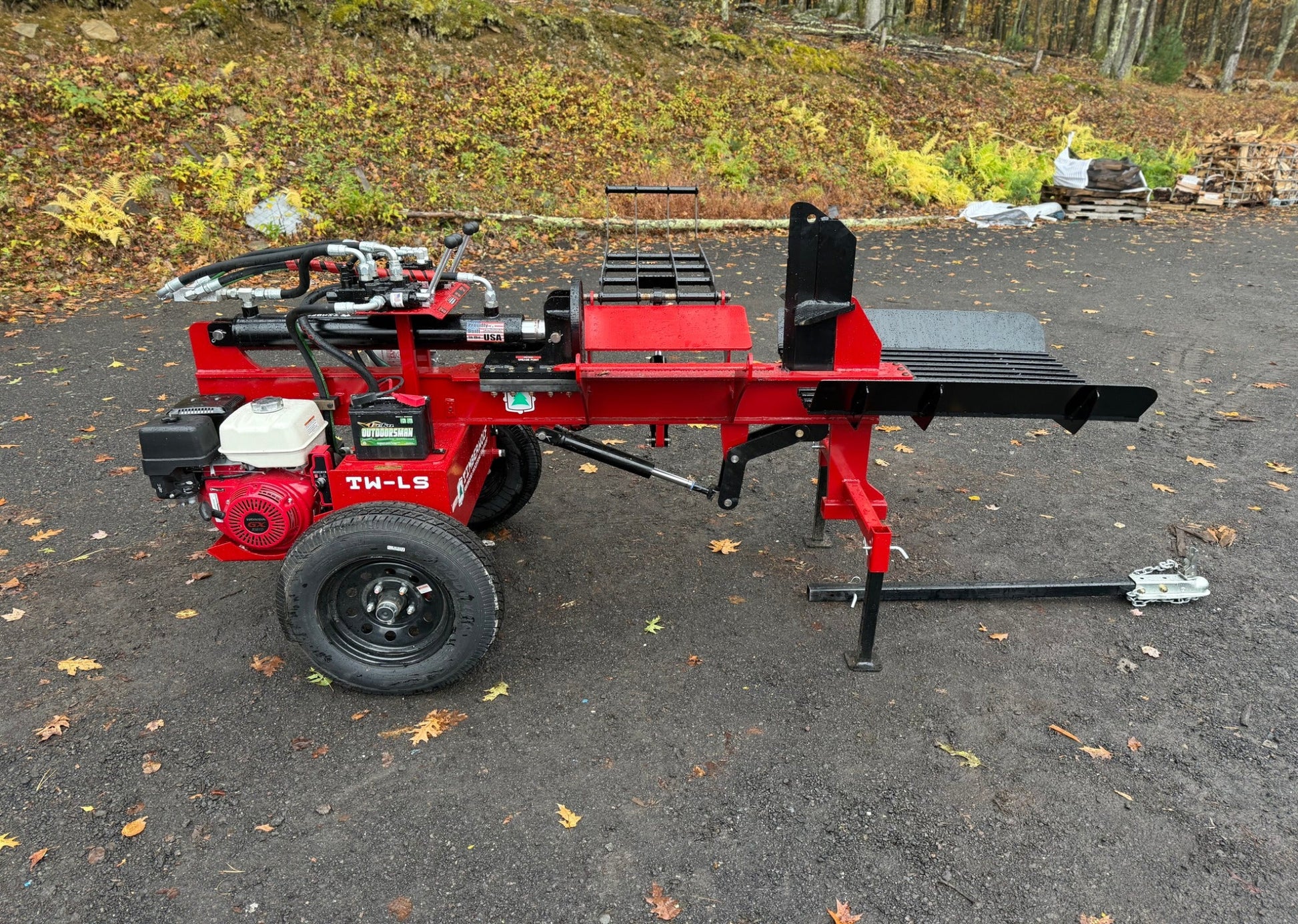

Log Splitter

Machine includes 4-way wedge, table grate, and hydraulic log lift

Regular price $5,495.95 USD
Regular price Sale price $5,495.95 USD
Sale Sold out
Engine Options
Cylinder Options
Auto Cycle
View full details
  • This entry-level firewood machine is a compact, economical option for homeowners and hobbyists splitting wood for their own use, or commercial firewood producers running a firewood business. The TW-LS is heavy-duty built to withstand daily firewood production without skipping a beat.

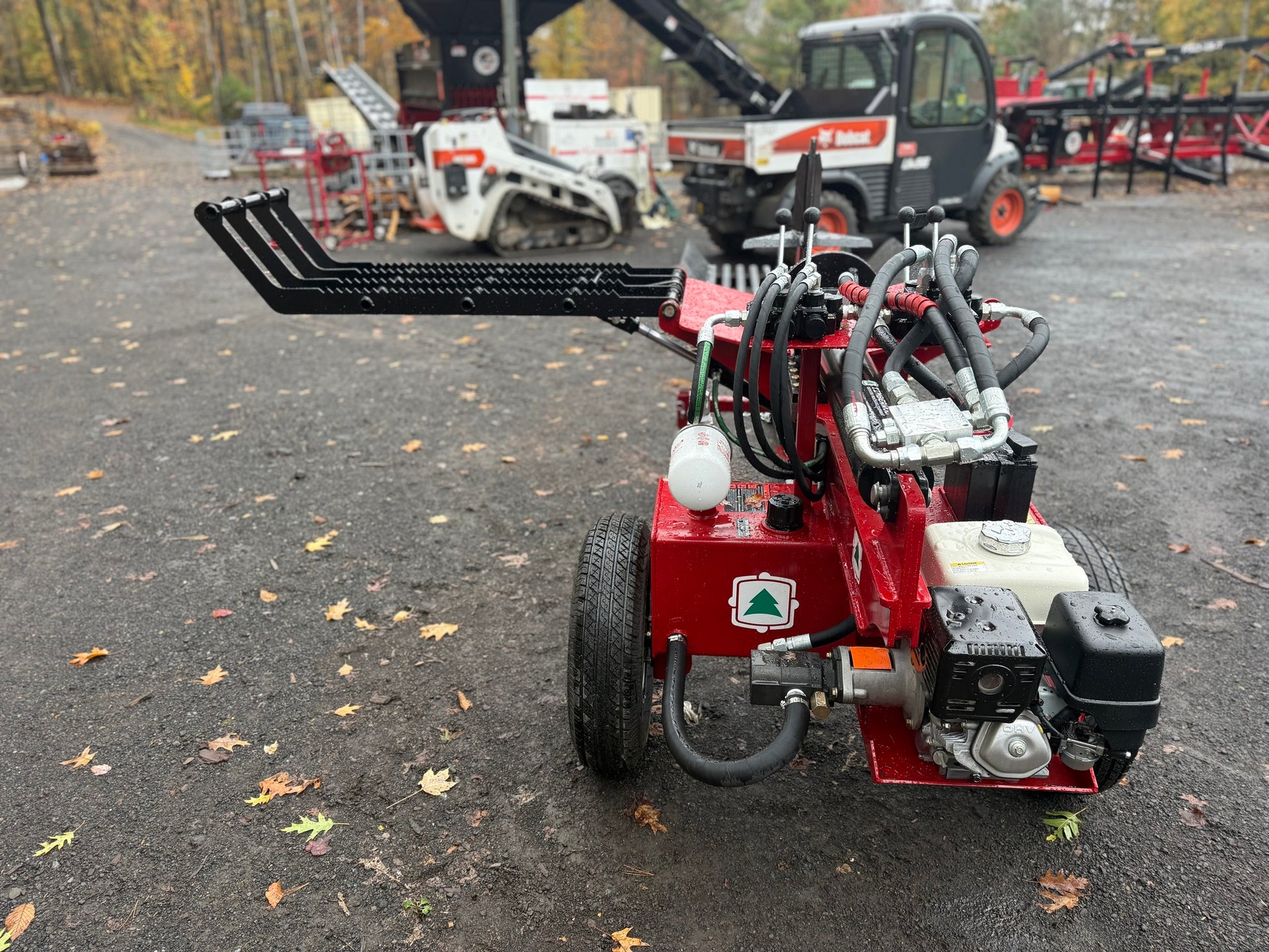

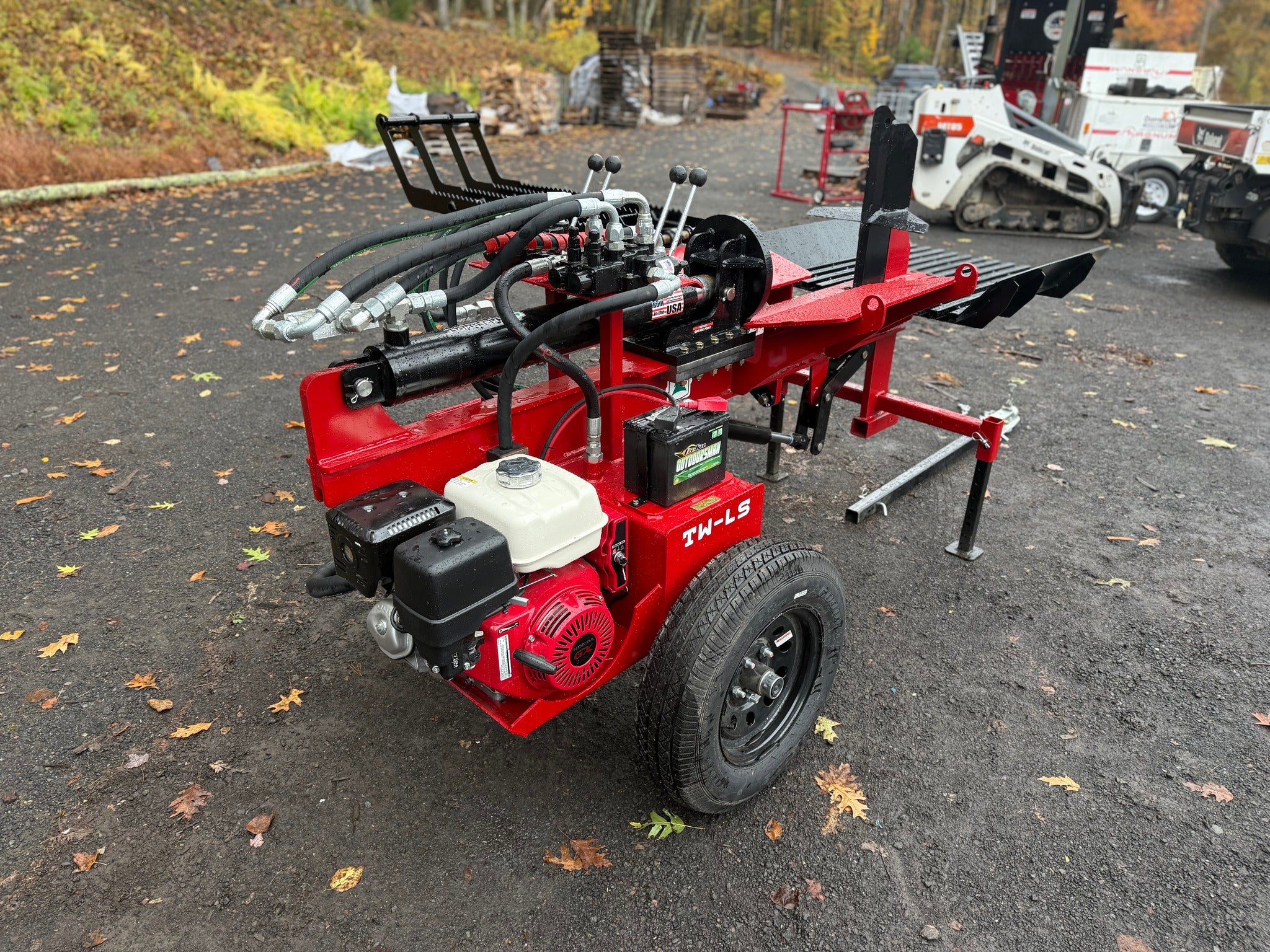

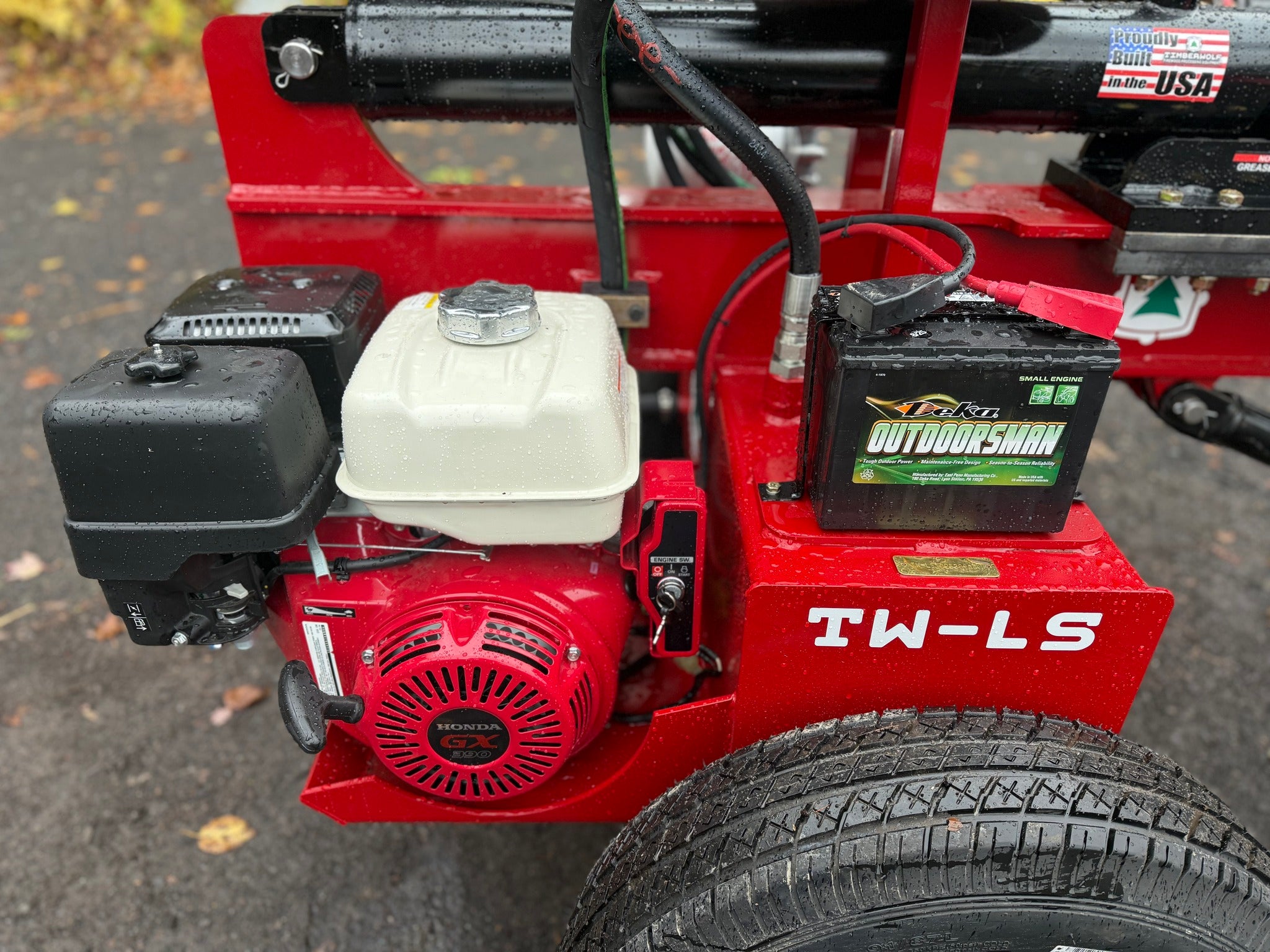

  • The Timberwolf TW-LS compact log splitter comes in two variations: the LS-270 and LS-390. Both models provide operators with excellent firewood production without the hefty start-up price tag. The LS-270 is powered by an economical and quiet 8.5HP Honda GX270 engine. Easy to operate and maintain, this fuel-efficient engine delivers plenty of power without requiring premium fuel, as well as smooth and continuous operation because of the low fuel consumption. The LS-390 includes the 11HP Honda GX390, which features high power output, low oil and fuel consumption, reduced vibration and noise level, and excellent exhaust emissions performance.

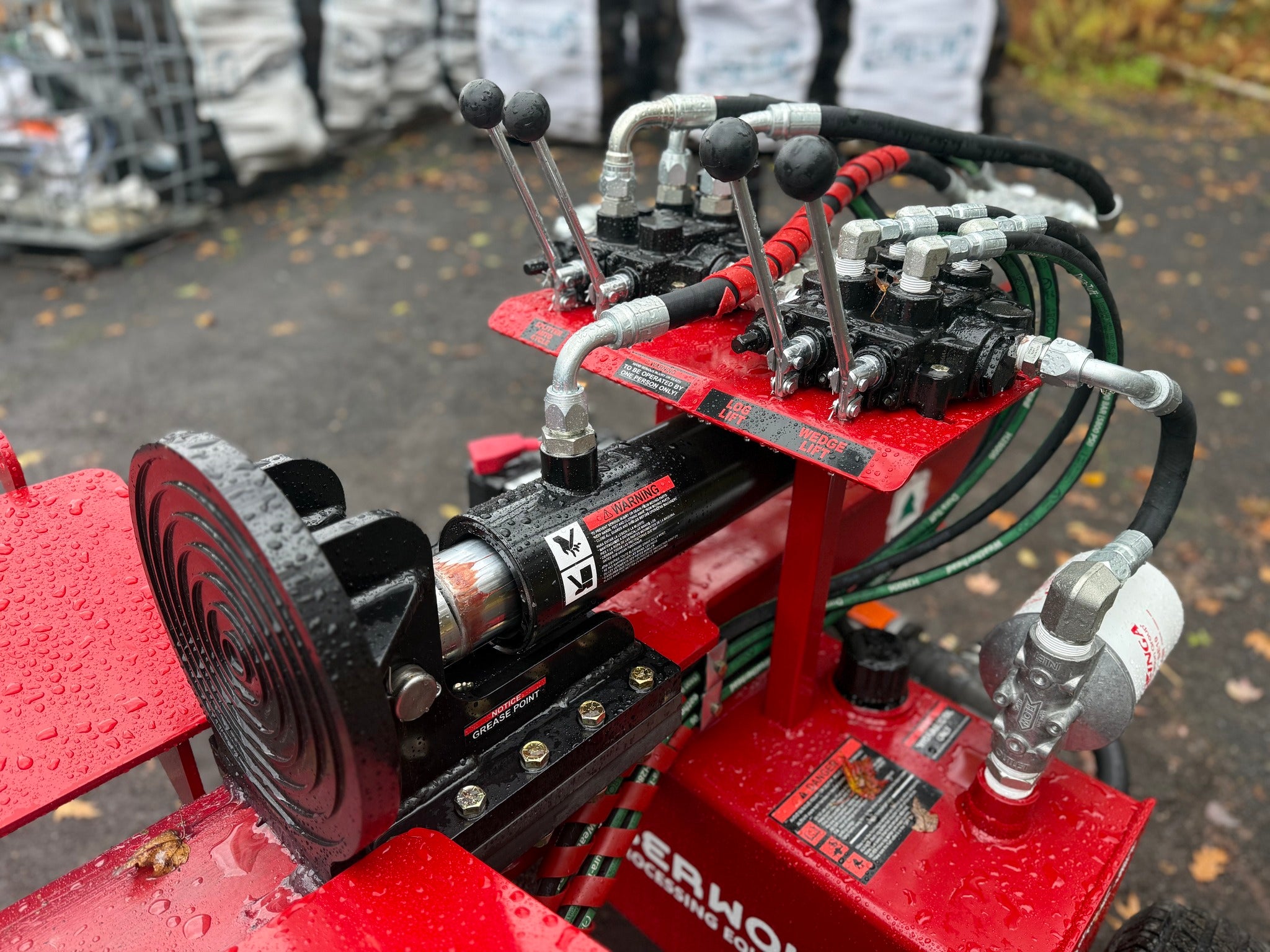

  • The compact log splitter is powered by a 3.5” or 4" hydraulic cylinder. Combined with a pump flow of 22 GPM and a 26” stroke, the portable wood splitter has a cycle time of 5/8 seconds and 37,700 pounds of splitting force.

  • Because of these commercial-grade features on our entry-level log splitter, the TW-LS can produce a full cord of wood in just an hour.

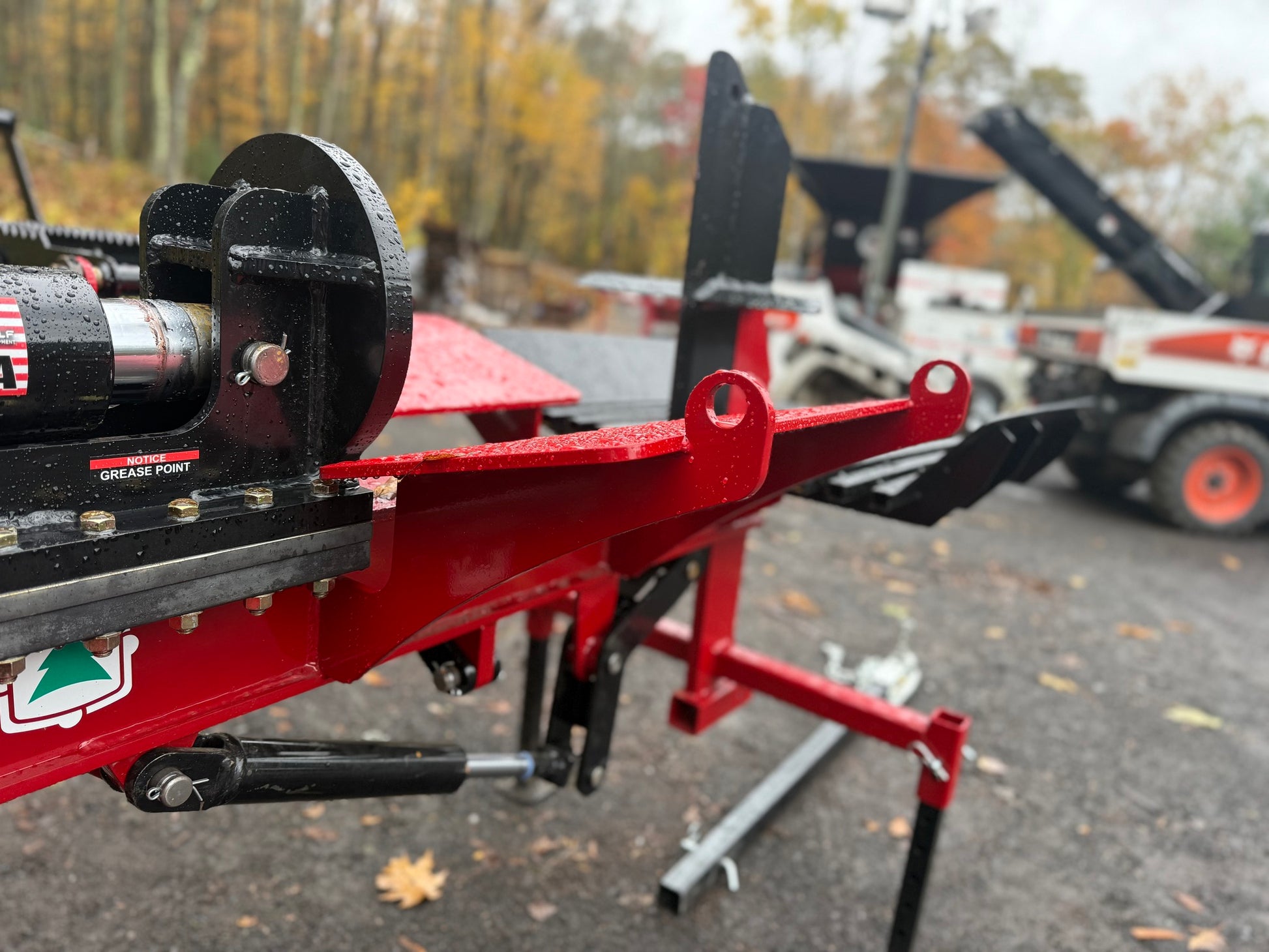

  • A 4-Way, hydraulically adjustable wedge comes standard with the TW-LS.

  • A hydraulic log lift allows operators to lift and load 250-pound logs with ease.

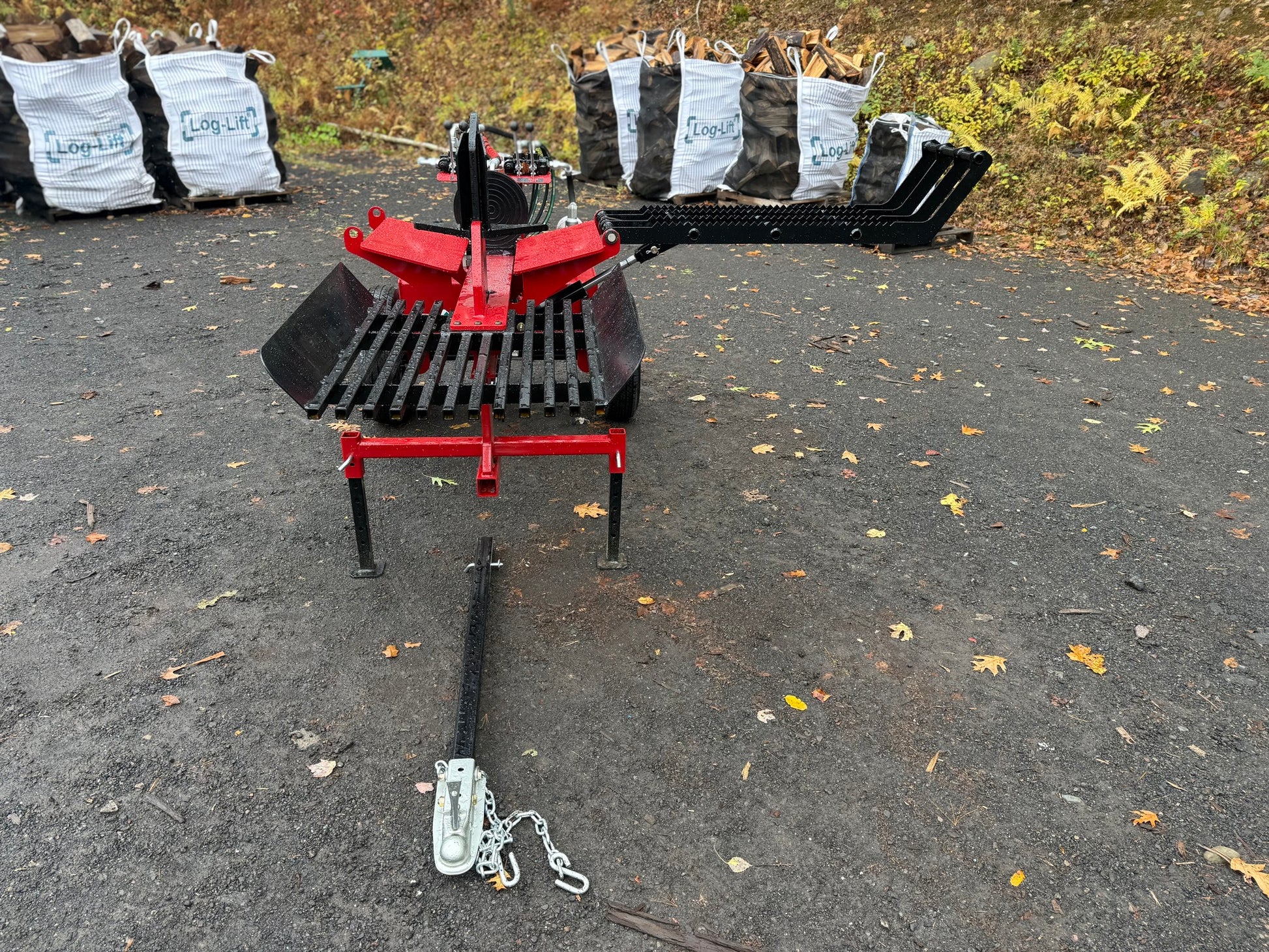

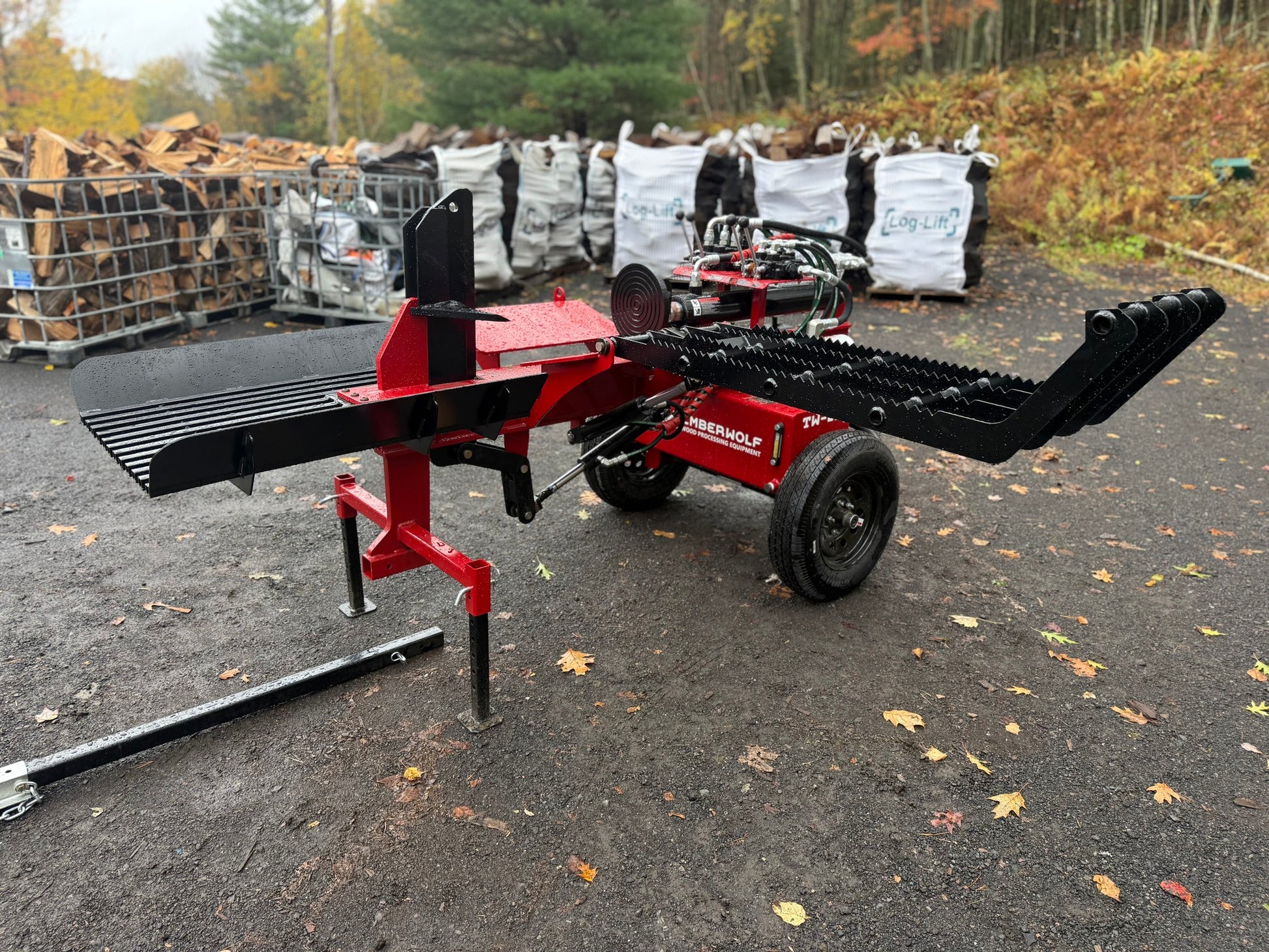

  • The TW-LS's table grate provides a catch pan for logs that need to be resplit, as well as a filter for fine materials, which will fall through the table grate. The table grate funnels materials into one clean pile, perfect for loading firewood onto a wood conveyor or into a truck bed.

Compact Splitting without a Drop in Production

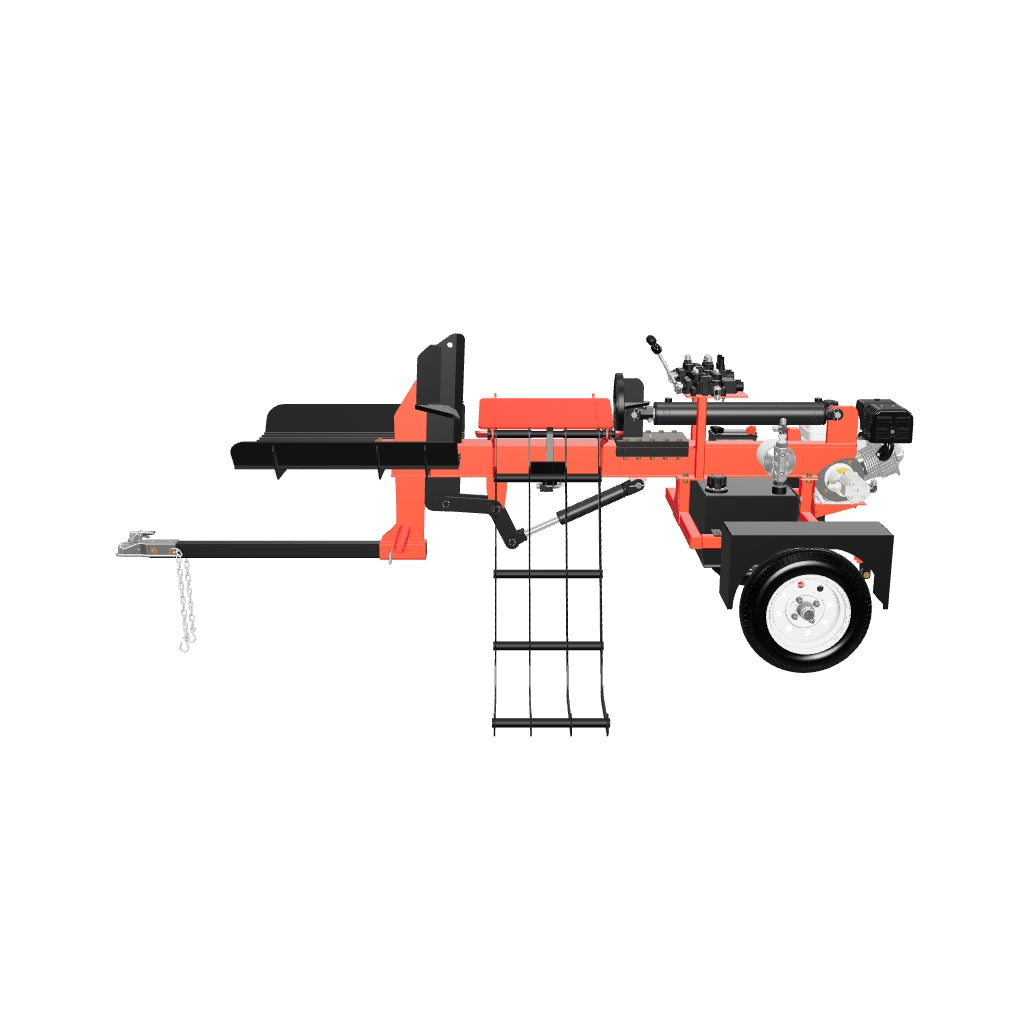

Add optional Auto Cycle to your Timberwolf LS-270 or LS-390 firewood splitter to bring your productivity to new heights.

Our Autocycle system automatically cycles the splitting ram both forward (to push the log into the wedge) and backward (to retract the ram after each split), essentially allowing you to place a new log on the splitting chamber without needing to manually operate a lever to initiate the cycle each time, making the splitting process faster and more efficient.

A Splitter That Works as Hard as You DO

The Timberwolf TW-LS Log Splitter Series produces excellent firewood without the hefty start-up price tag. This machine is perfect for everyone from homeowners and hobbyists to commercial firewood producers.

Profiting from a Single-Person Operation

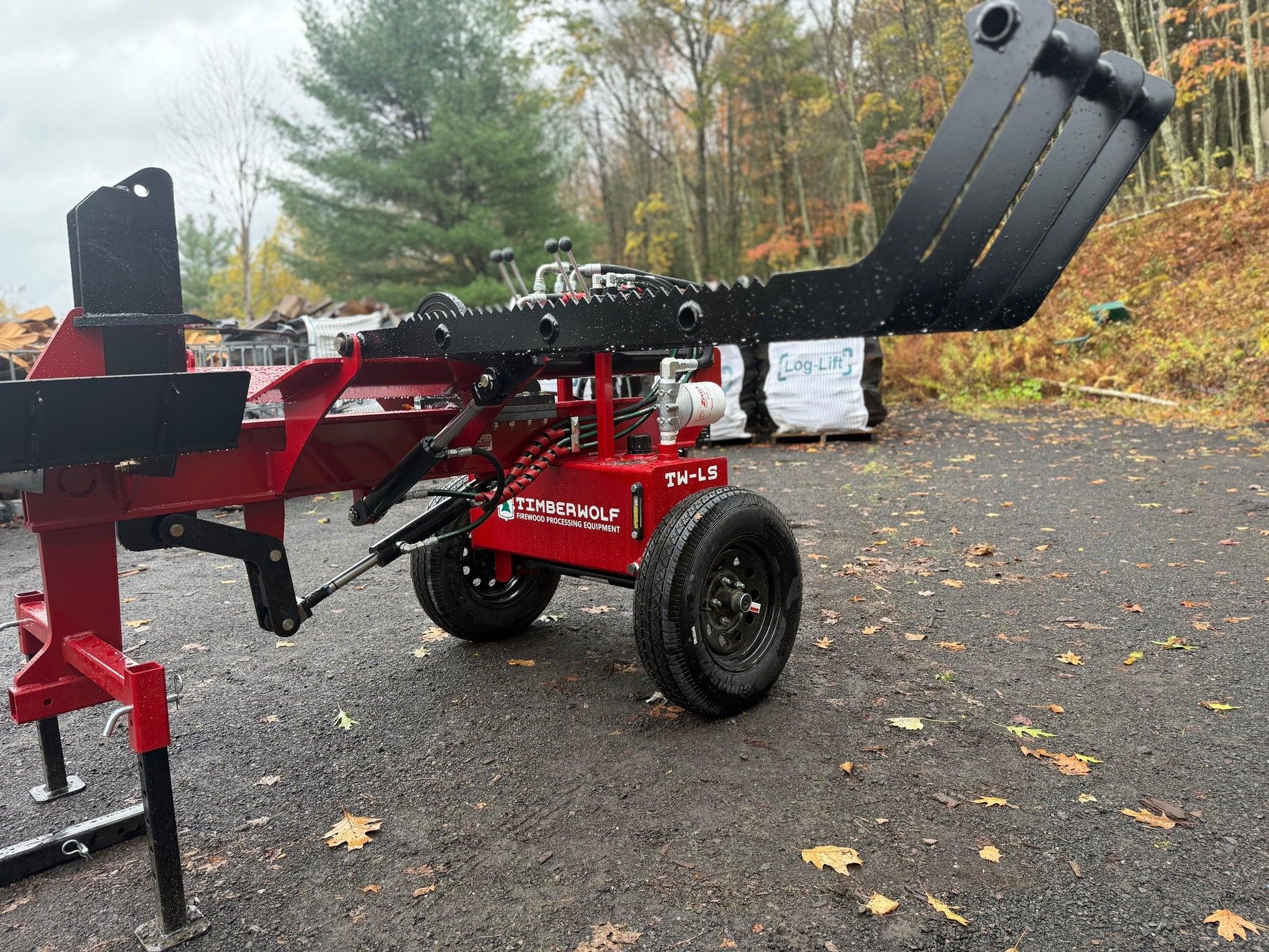

The home log splitter is equipped with a hydraulic log lift capable of handling 250-pound blocks. This allows single-person operations to, one, move large blocks, and, two, quickly ready logs for splitting, resulting in a higher cord output.

The small log splitter's splitting chamber centers logs for splitting once they are dumped by the log lift, so operators can do less and split more firewood.

Build Your Firewood Processing Operation

The TW-LS wood splitter is the essential entry-level log splitter, not because the machine isn't "as good" as a commercial log splitter, but because the base model allows users to enjoy the commercial features of the residential firewood splitter without breaking the bank.

The possibilities are endless with the Timberwolf LS-270 and LS-390 compact log splitters.

  • Engine Power (HP) 8.5/11
    Pump Flow (GPM) 22
    Stroke (in) 26
    Cylinder Bore (in) 3.5/4
    Splitting Force (lbs) 37,700
    Cycle Time (sec) 5/8
    Average Output (Cord/Hr) 1
    Weight (lbs) 1,350
  • Standard Features

    • 4-Way Wedge
    • Hydraulic log lift
    • Table grate
    • Hydraulic wedge lift
    • Self-centering splitting chamber
  • Capabilities

    • 1 Cord per hour
    • 5/8-Second cycle time
    • Splitting force: 37,700 pounds
  • Power

    • 8.5/11 HP engine
    • 3.5"/4" cylinder with 26" stroke
    • 22 GPM pump flow
    • Cycle time: 5/8 seconds
    • Splitting force: 37,700 pounds
