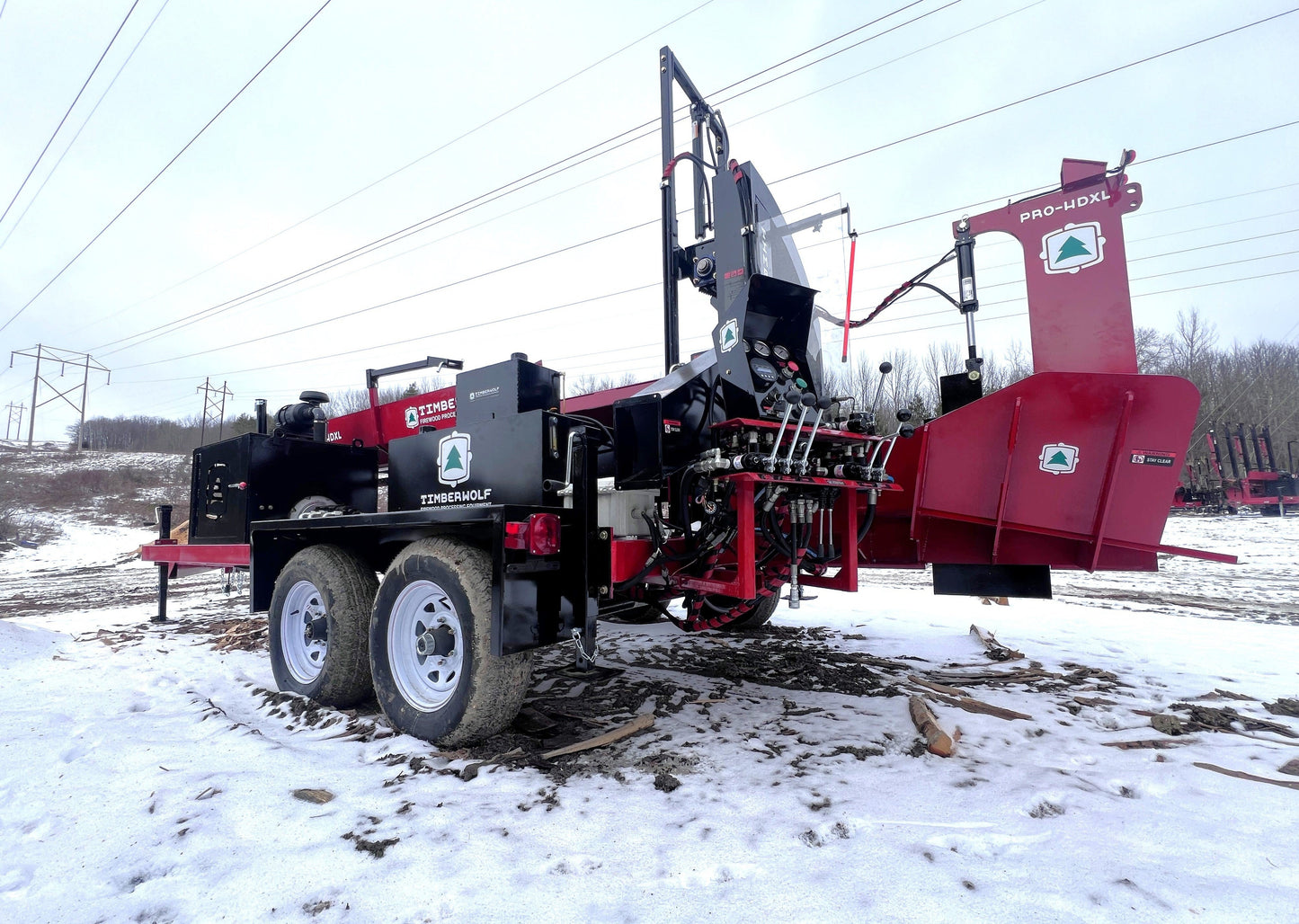

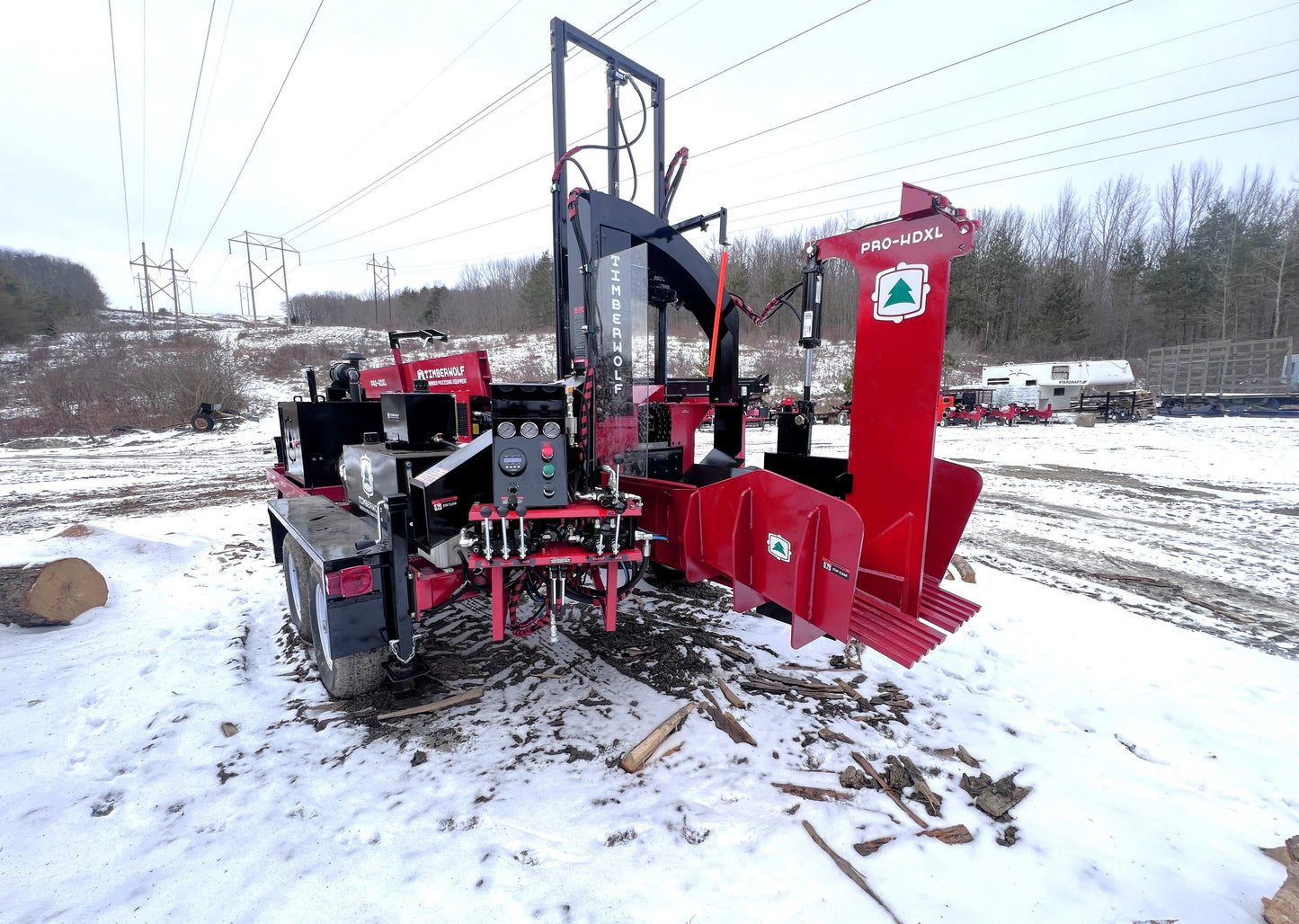

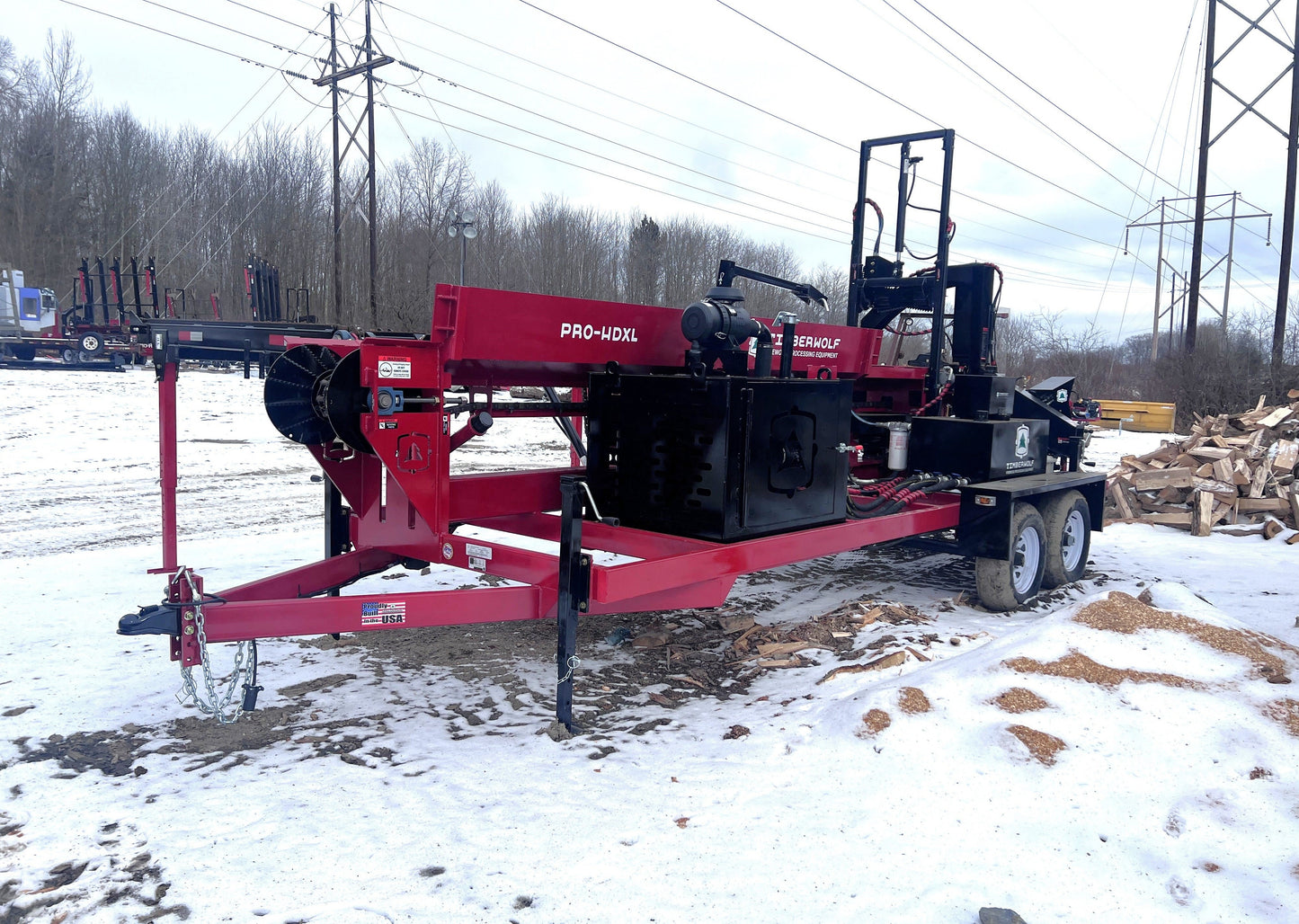

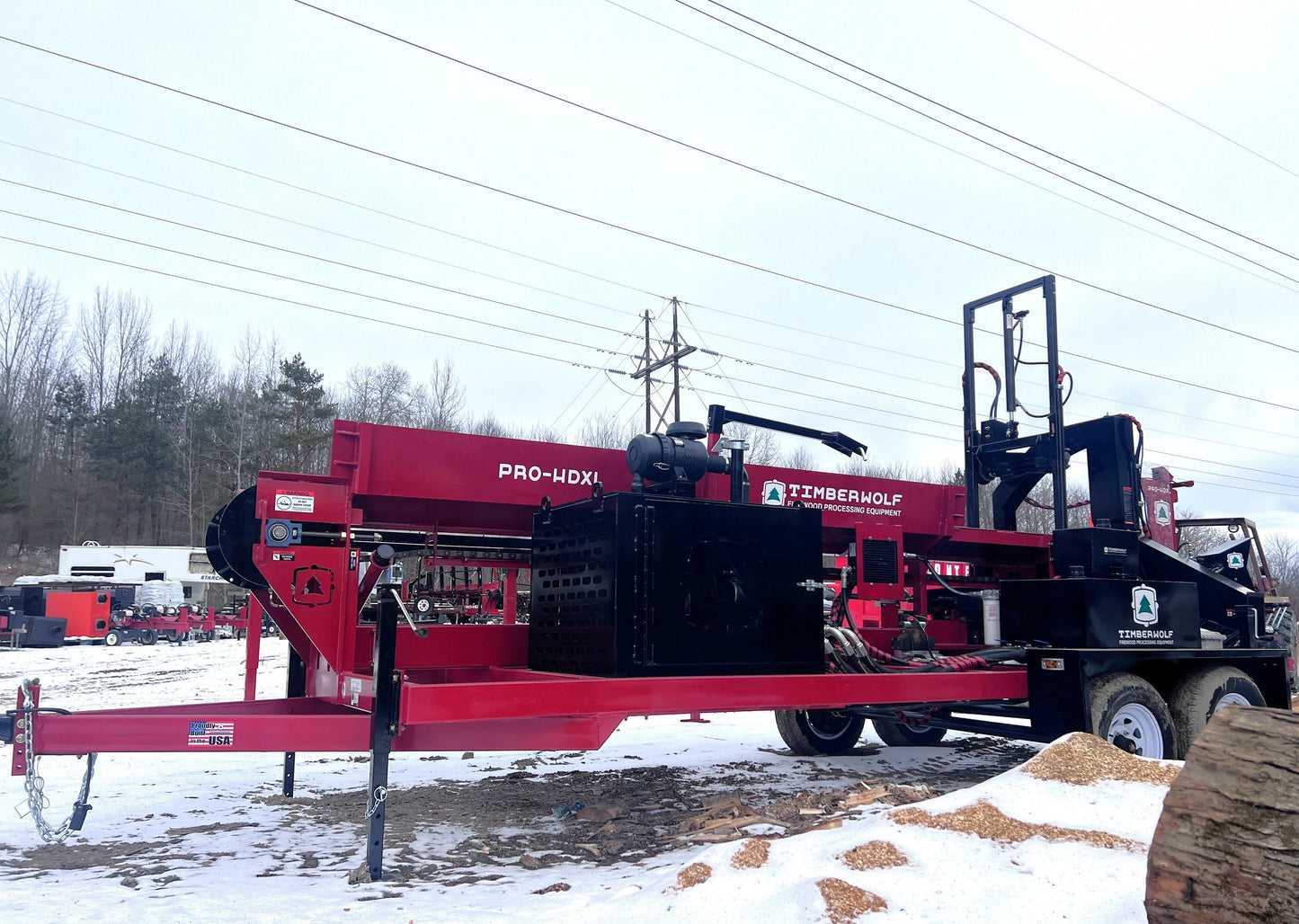

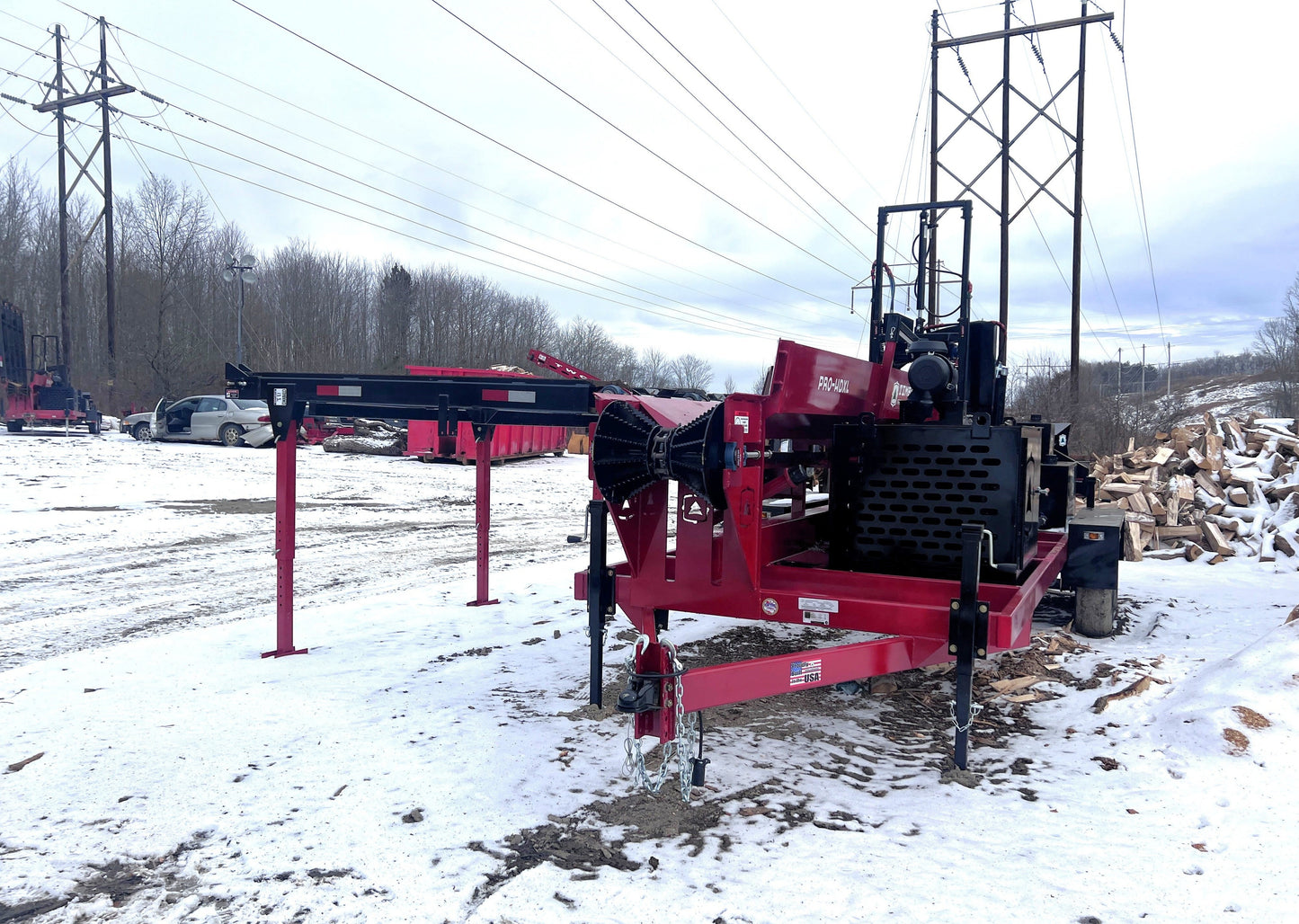

Timberwolf Firewood Processing Equipment

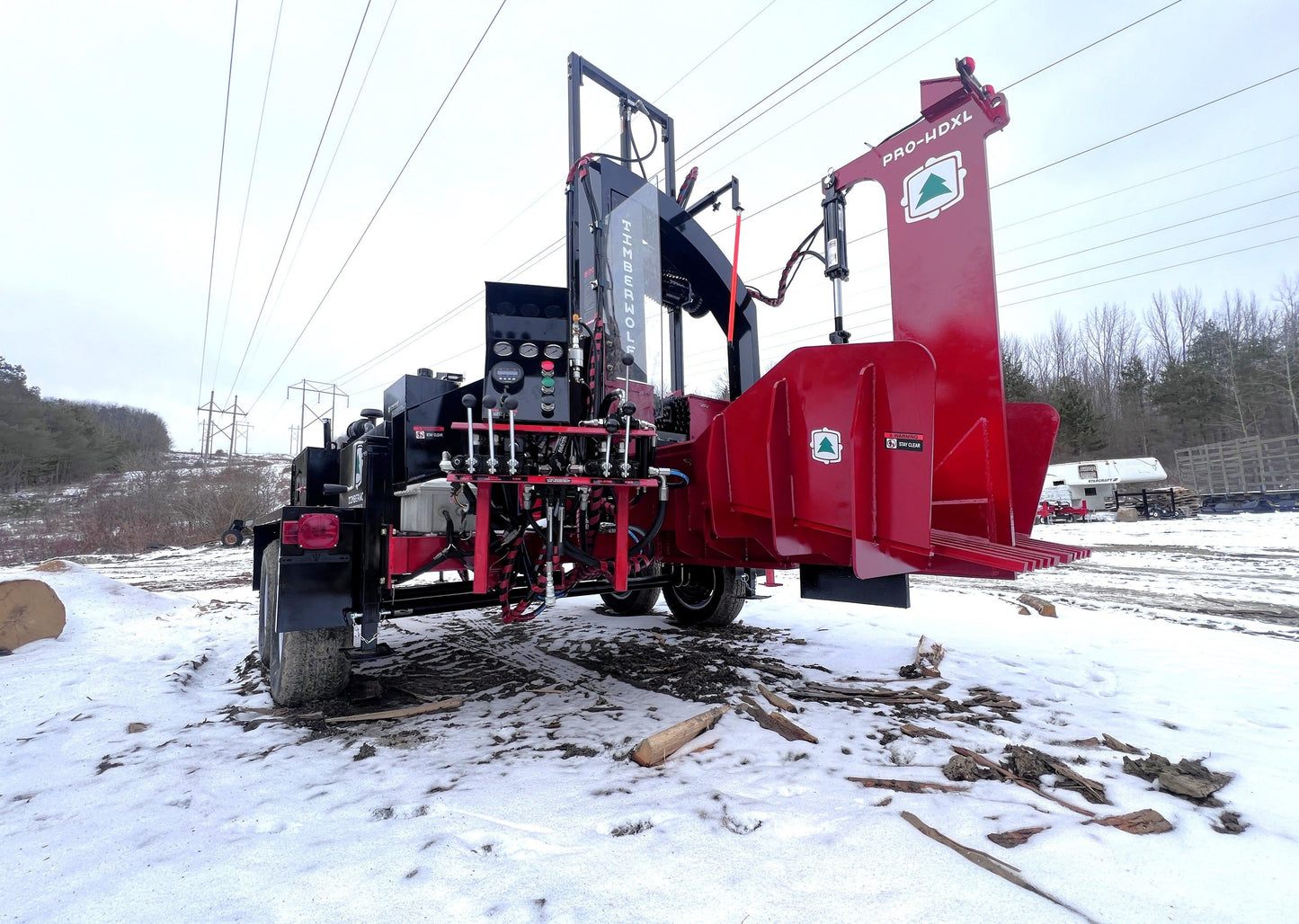

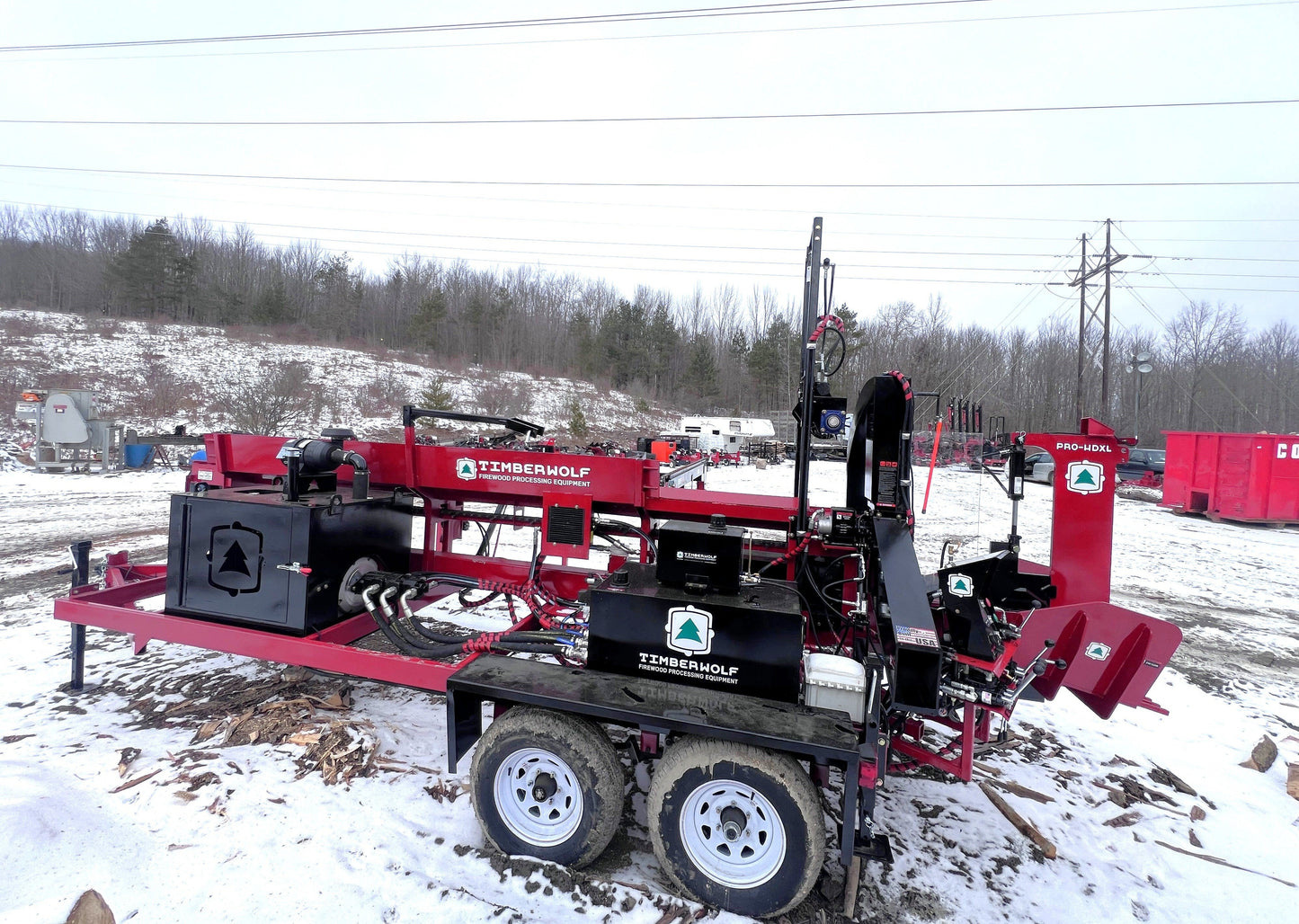

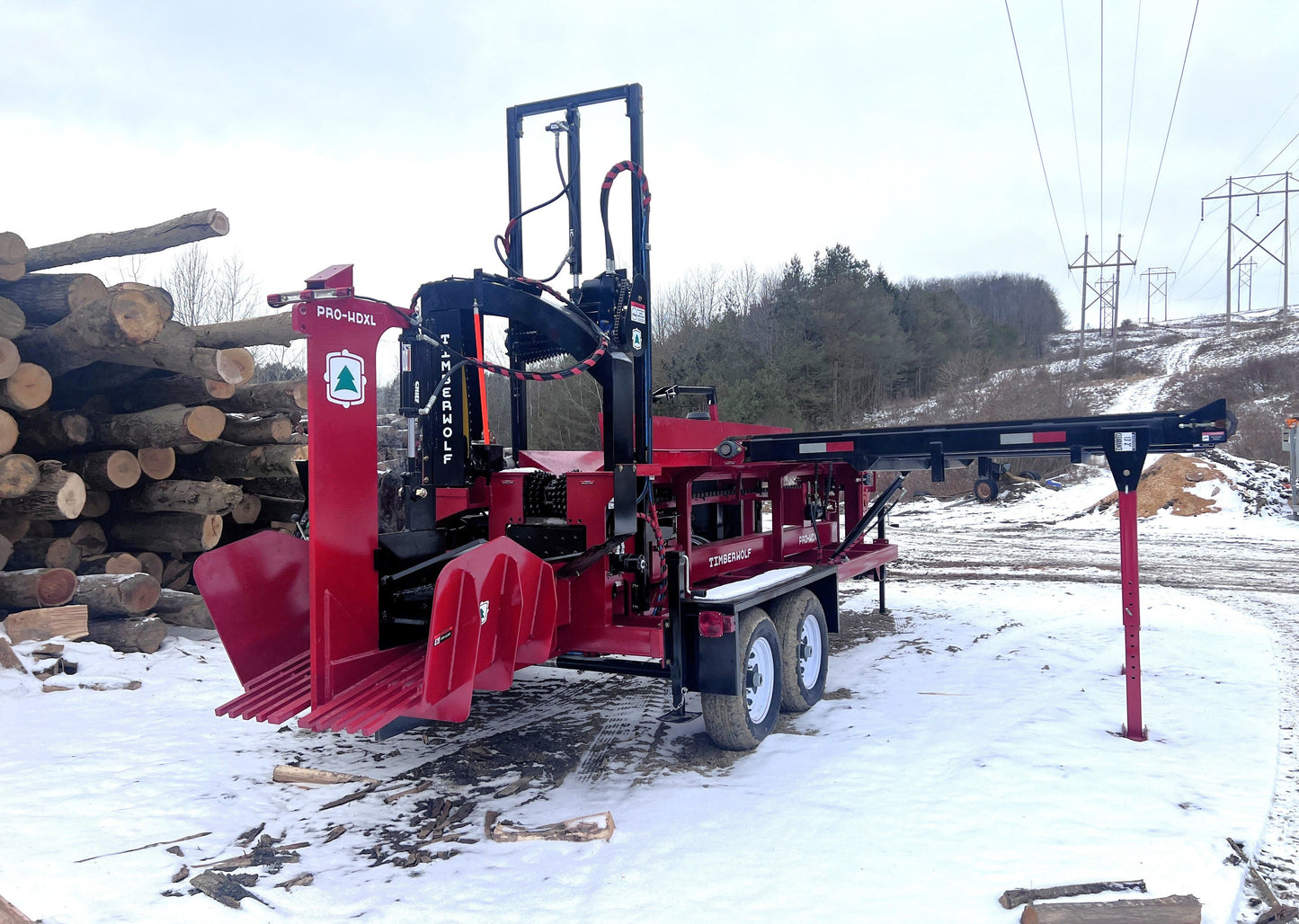

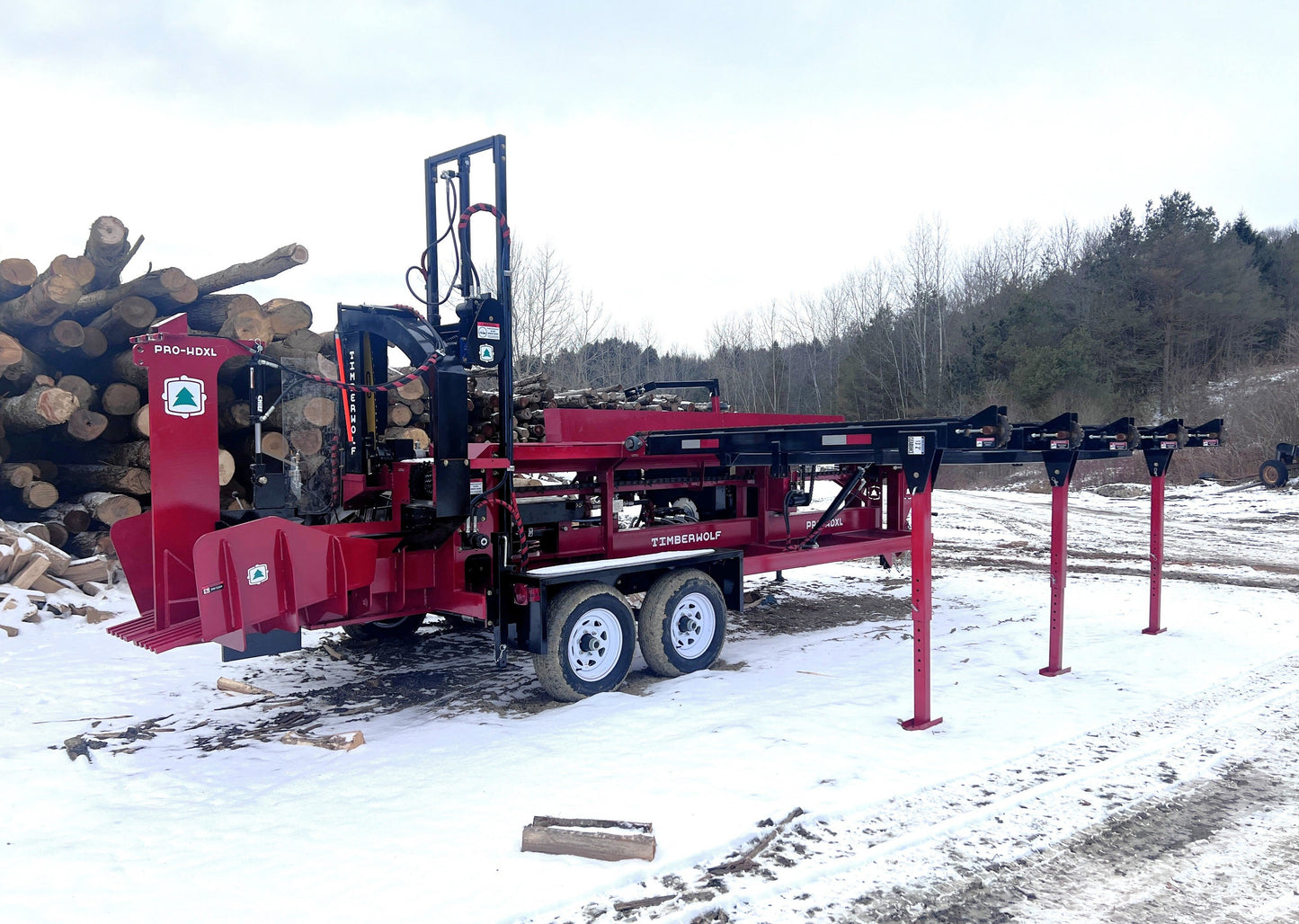

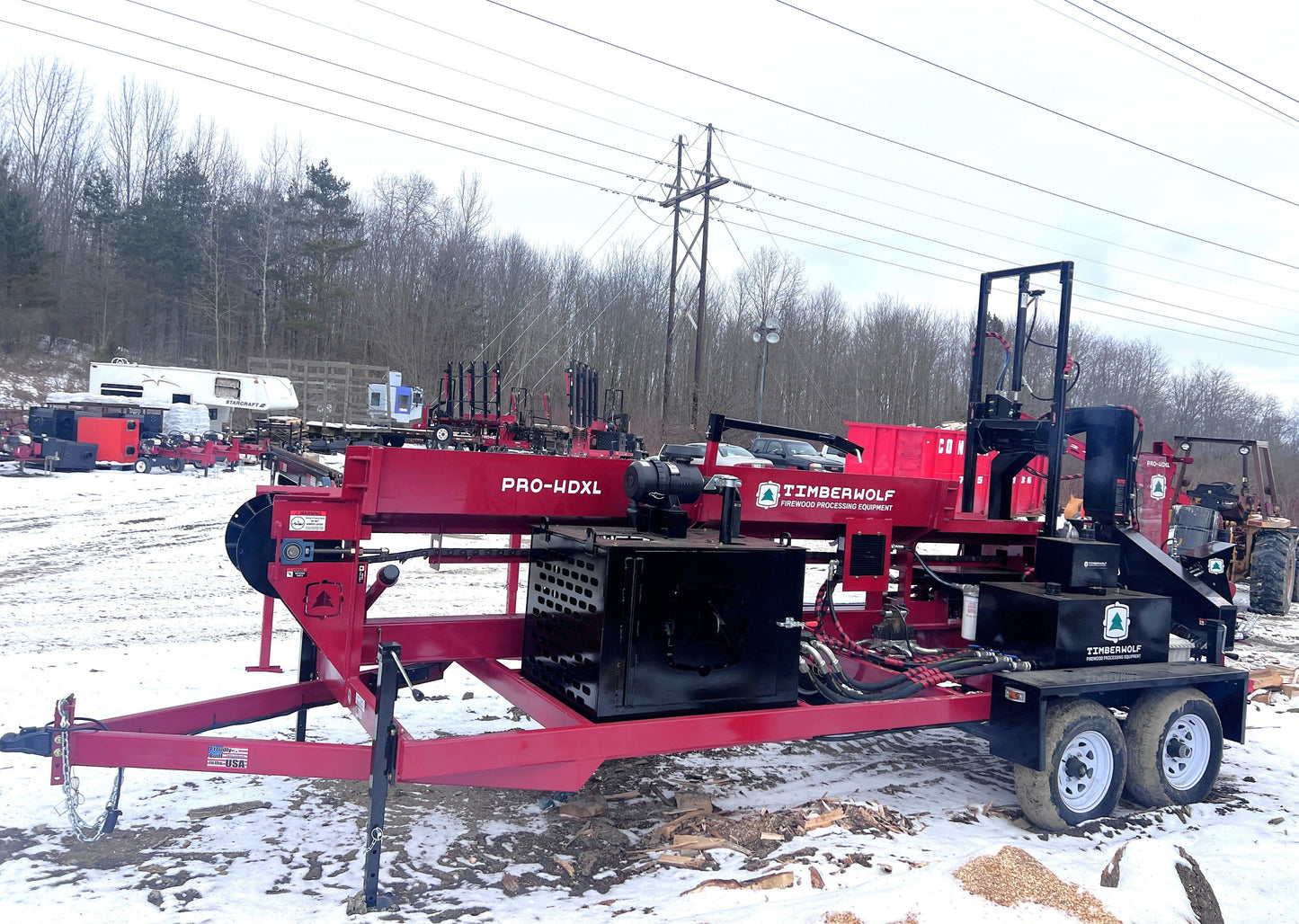

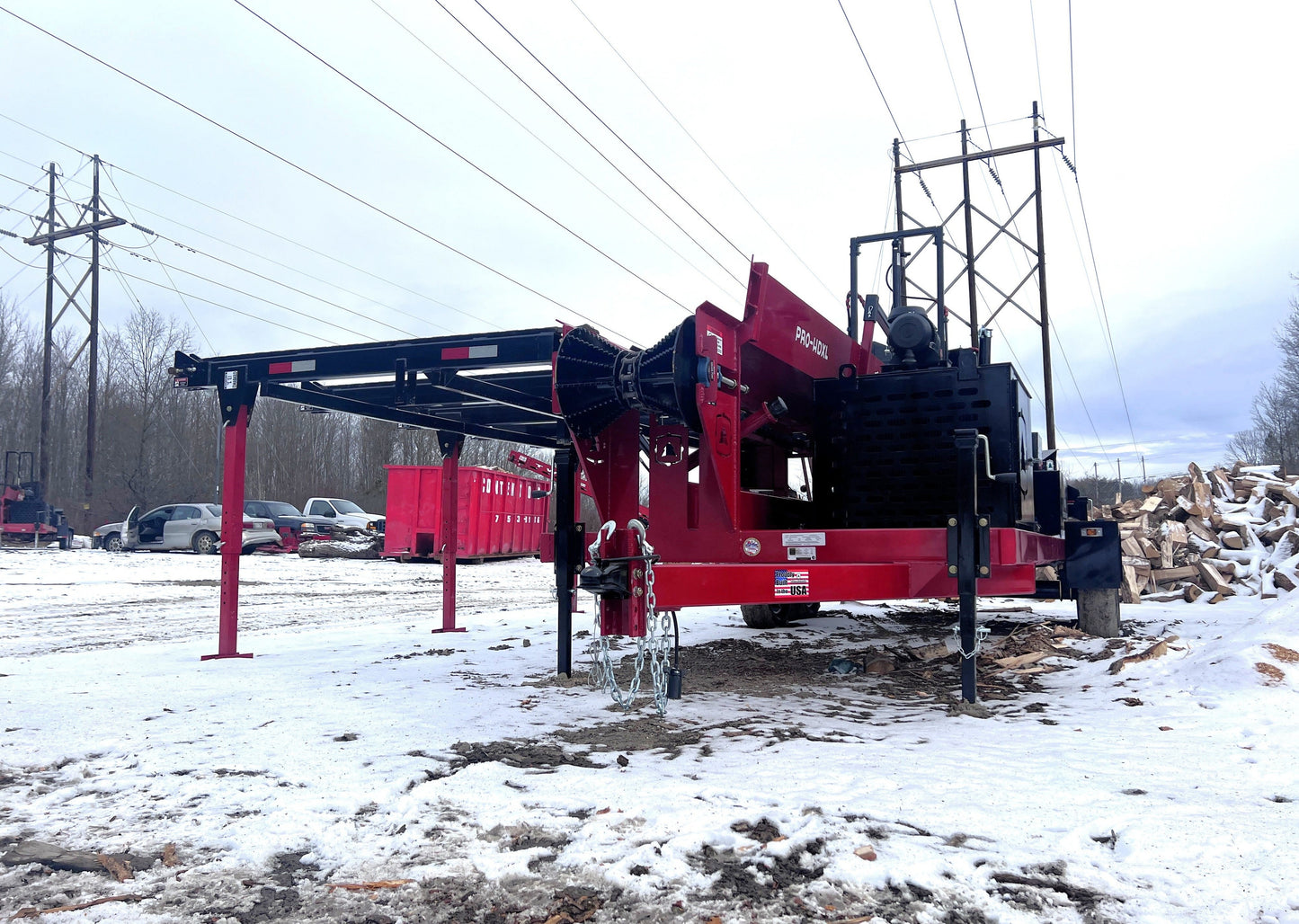

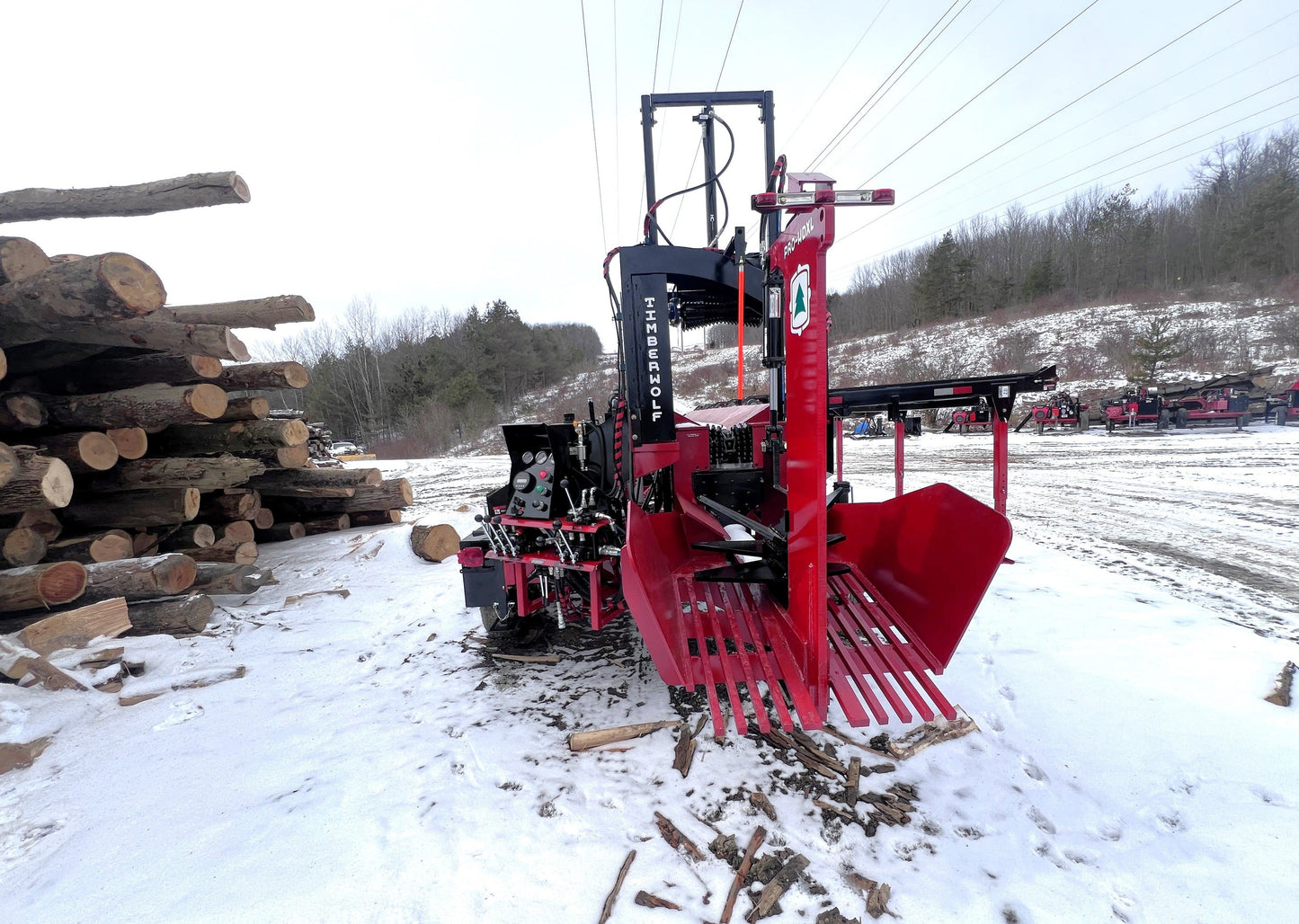

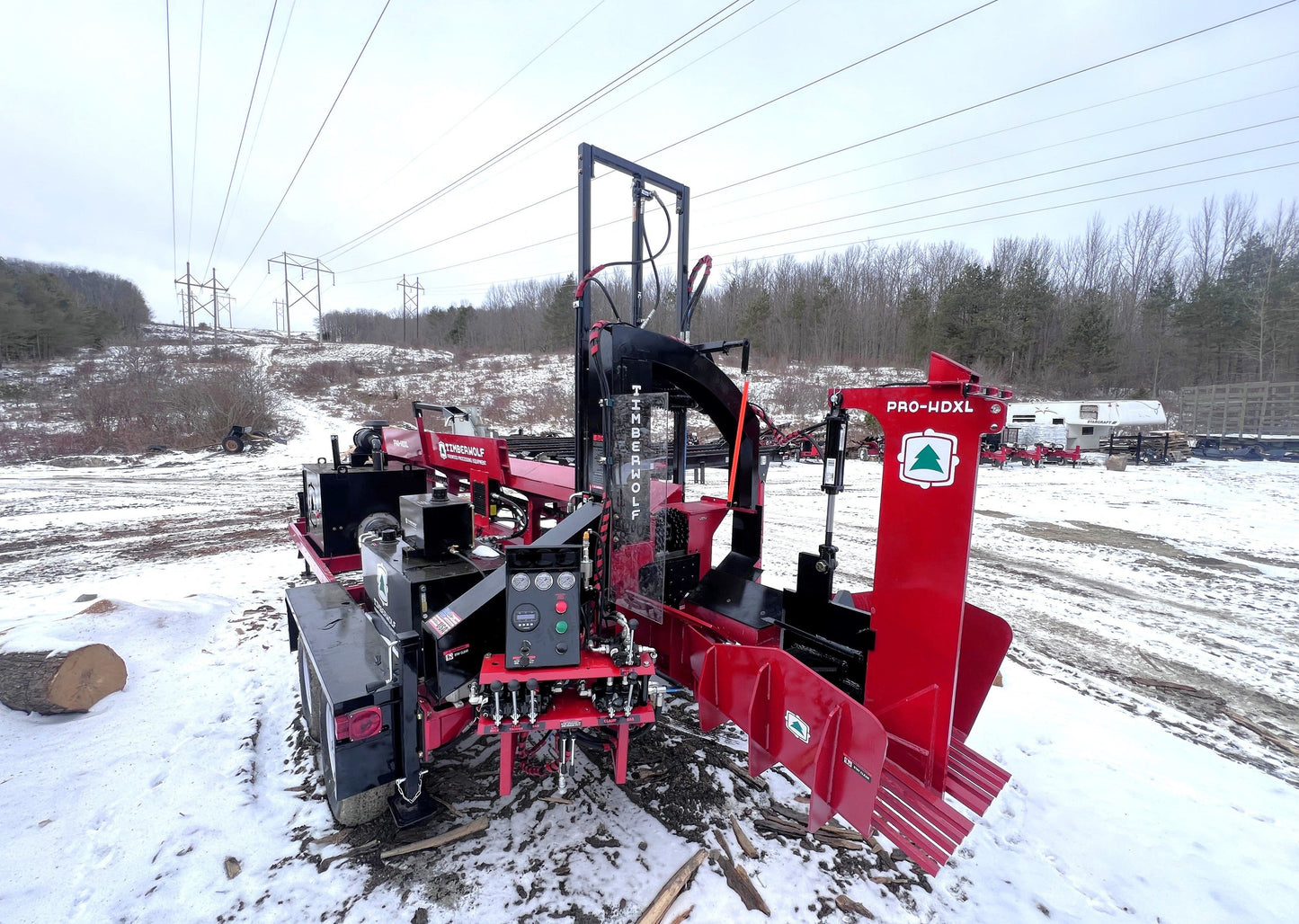

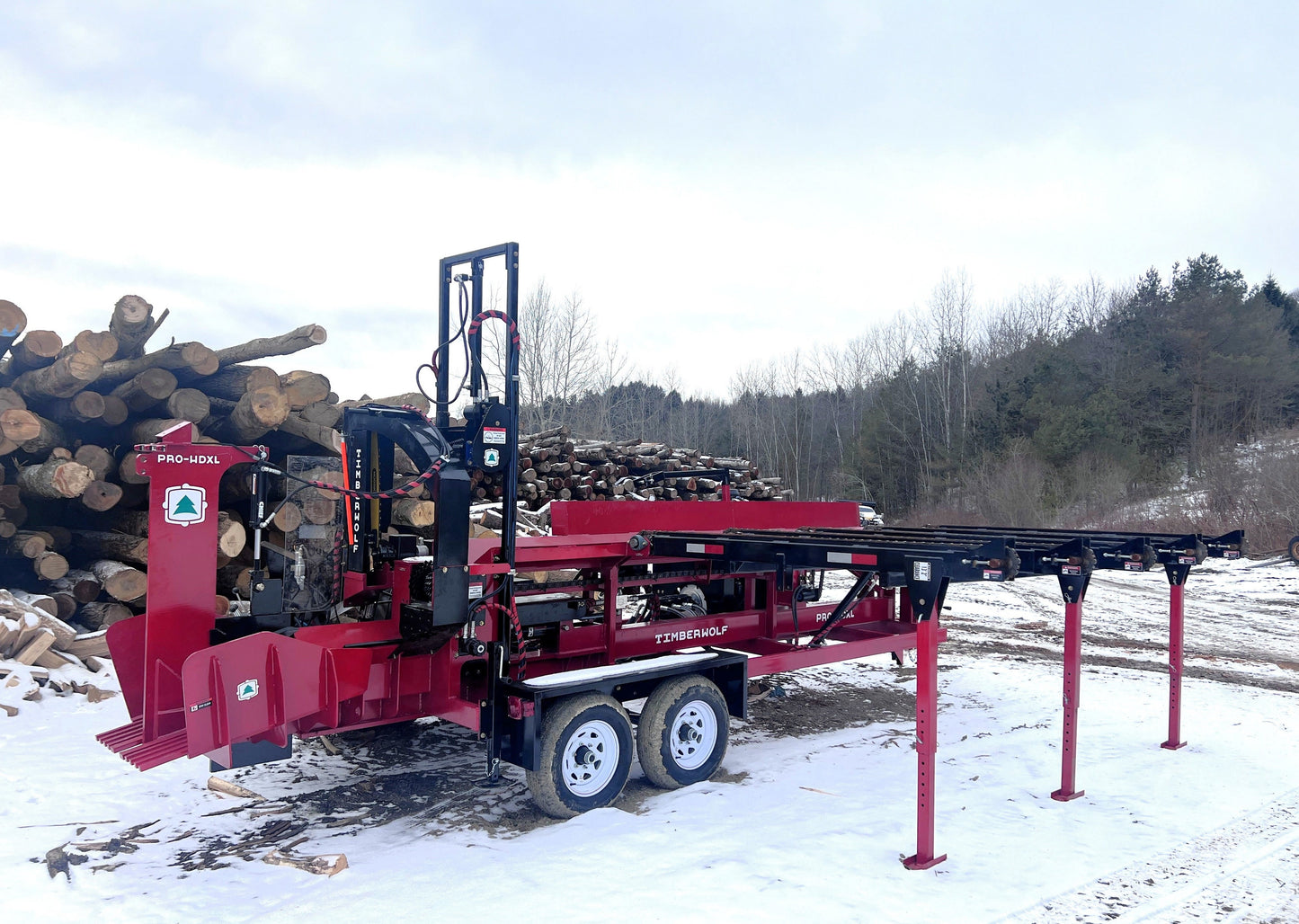

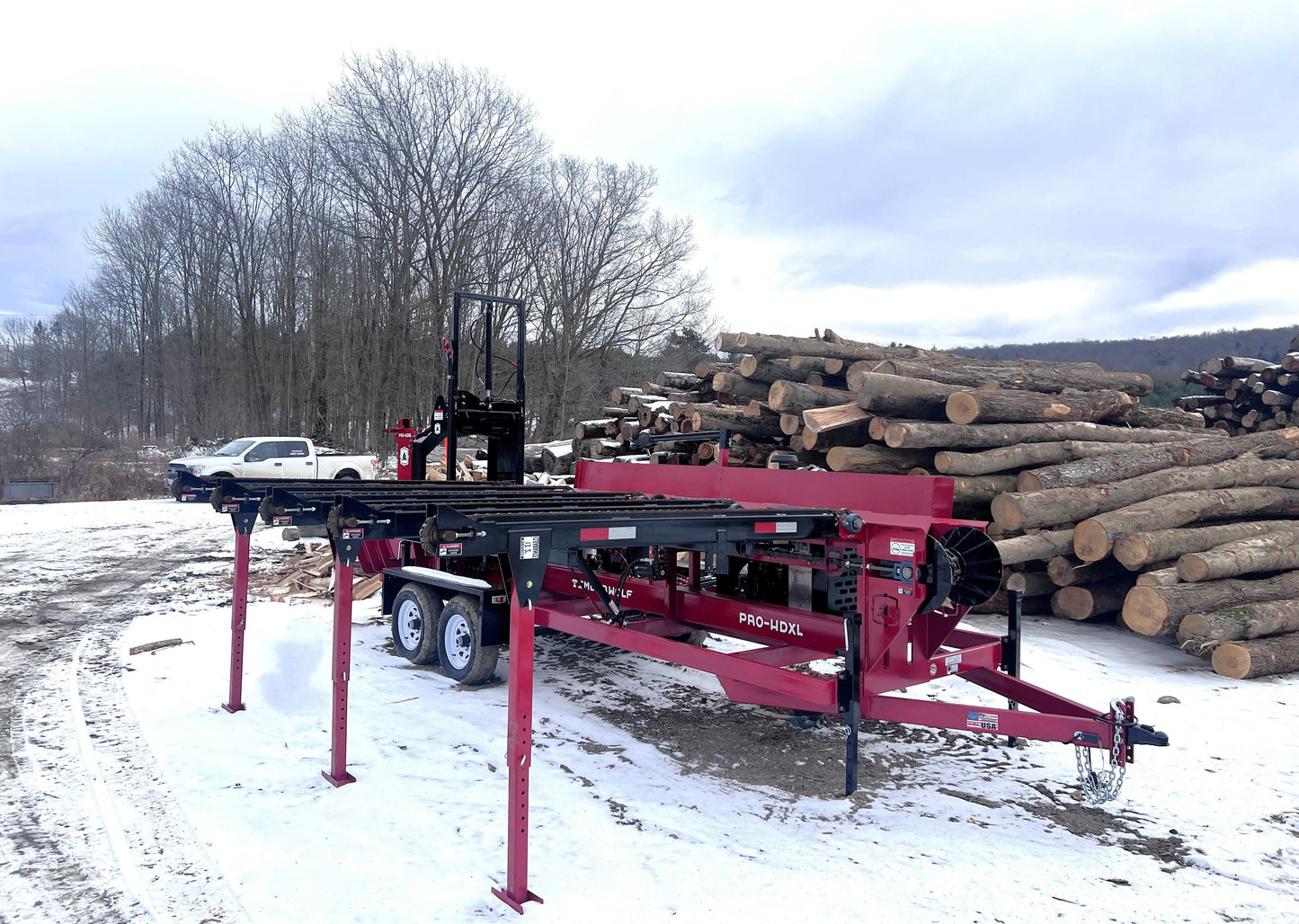

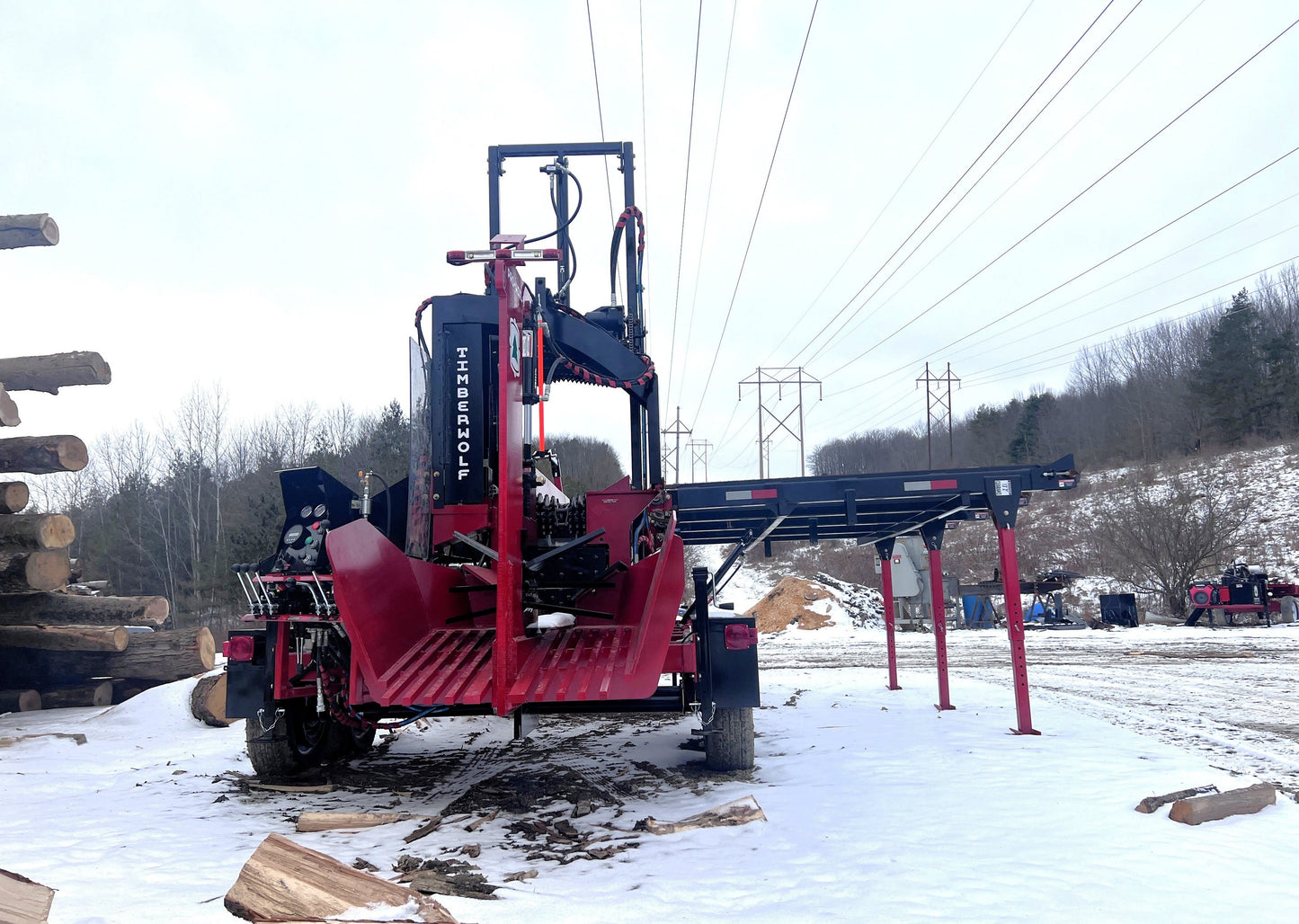

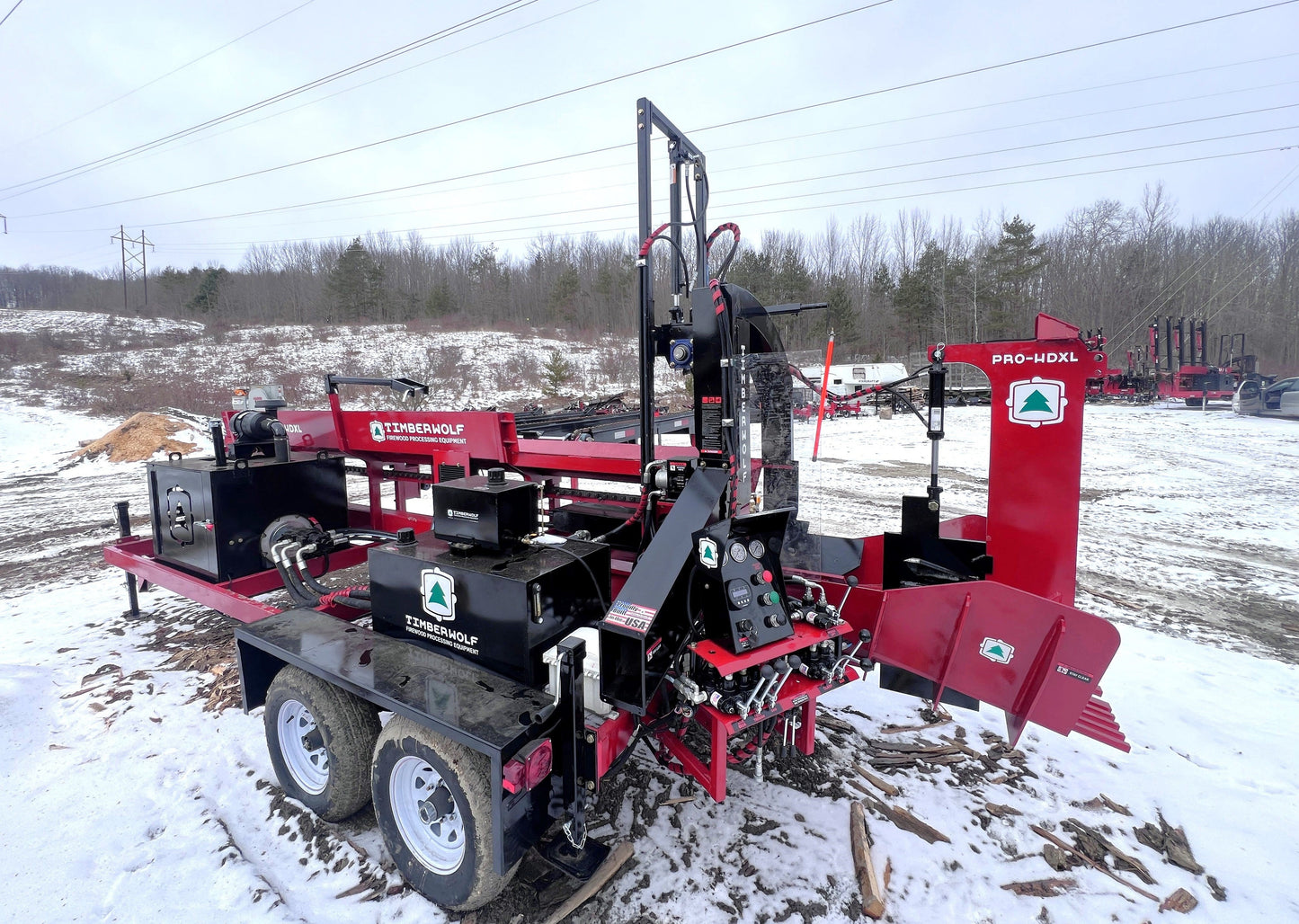

Pro-HD XL

Pro-HD XL

Firewood Processor

Machine & Price includes 4-Way Wedge.

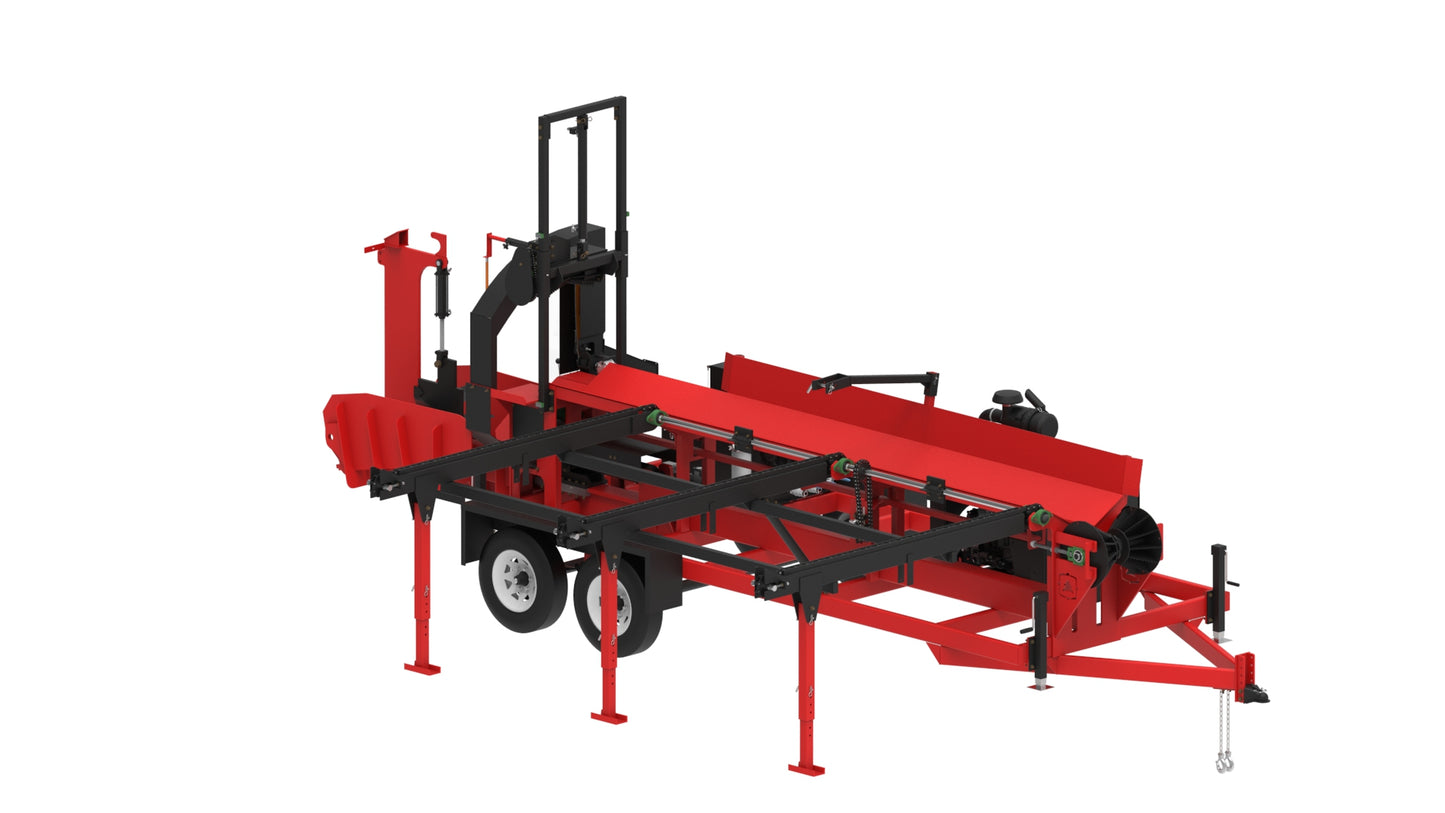

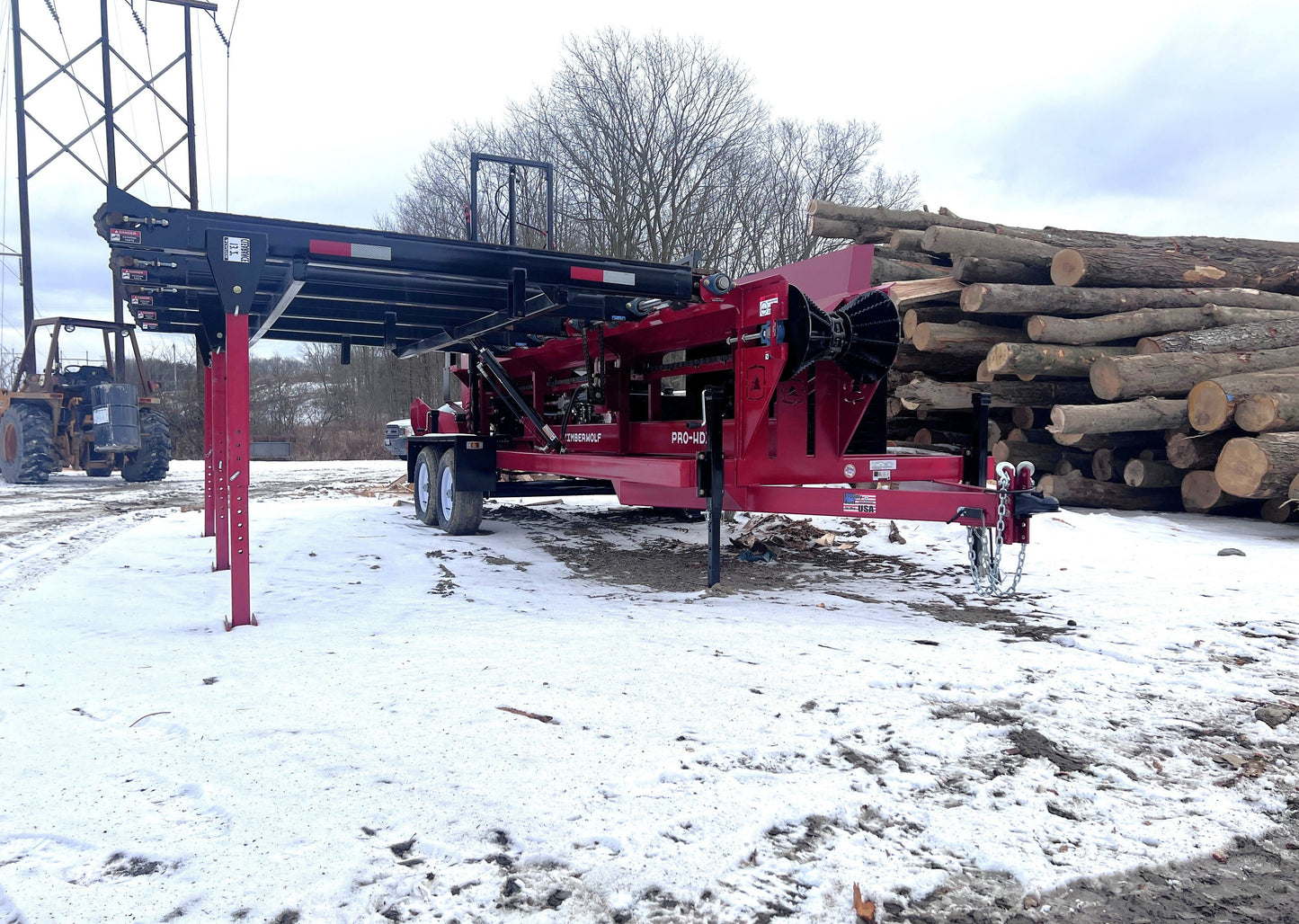

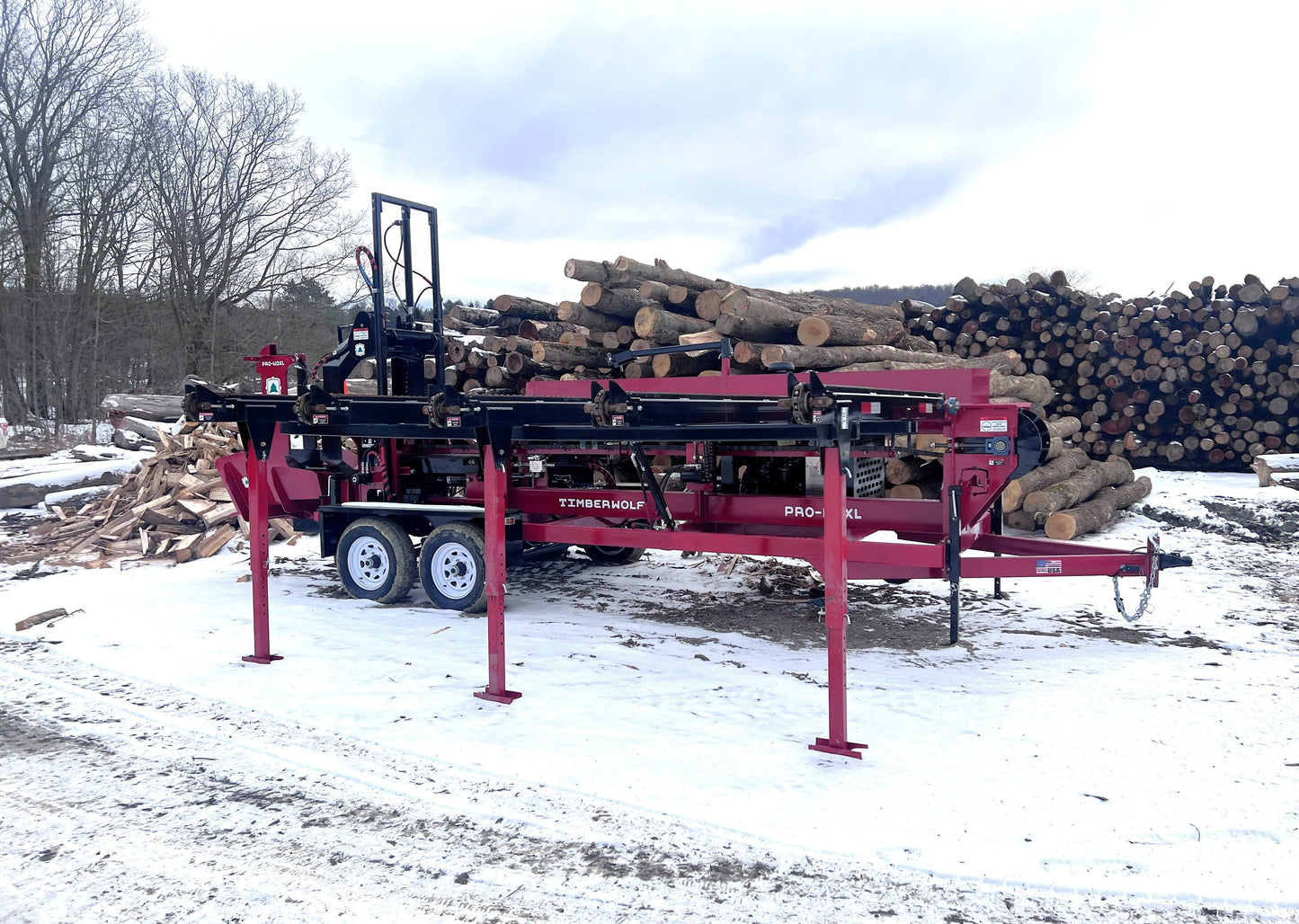

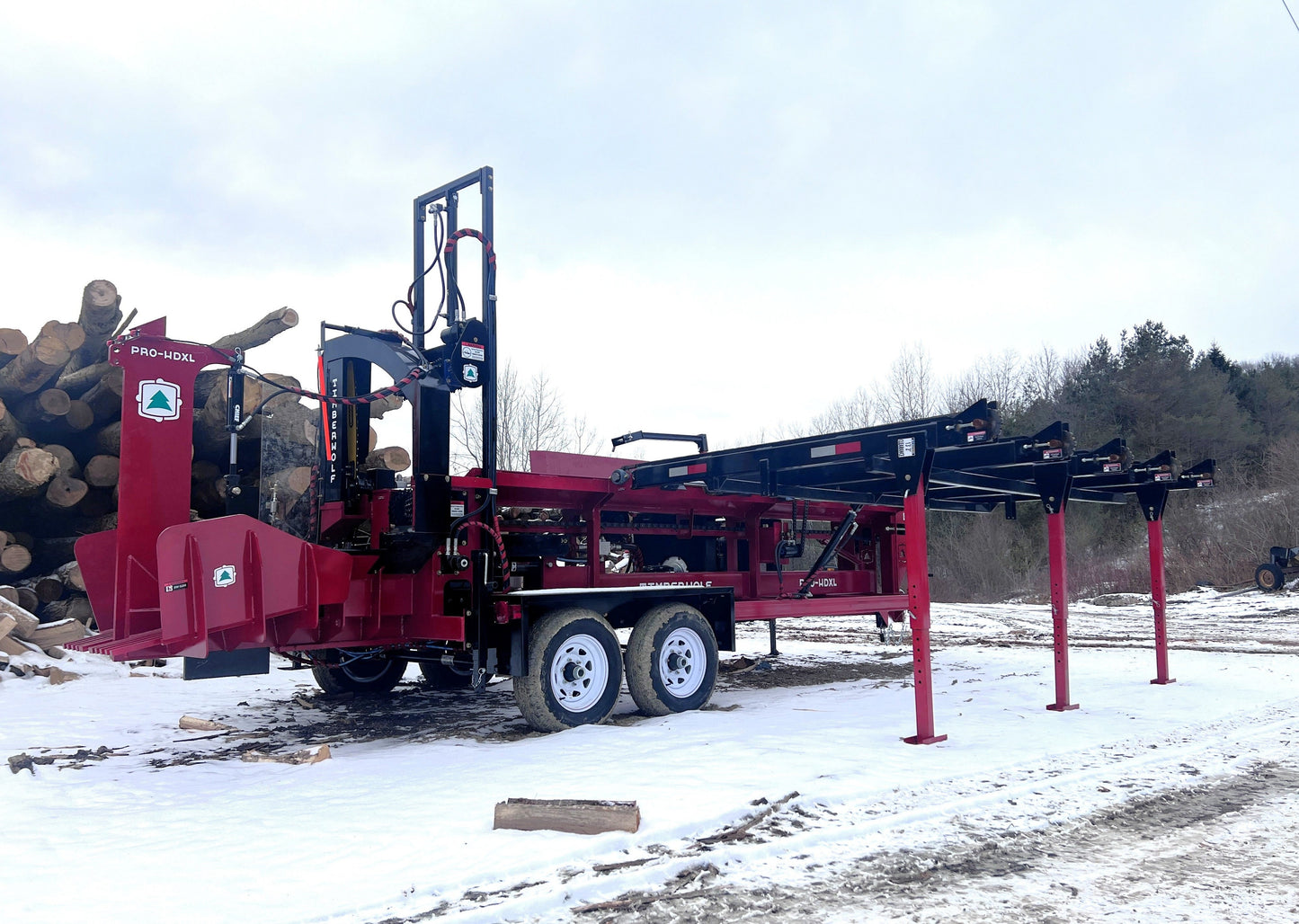

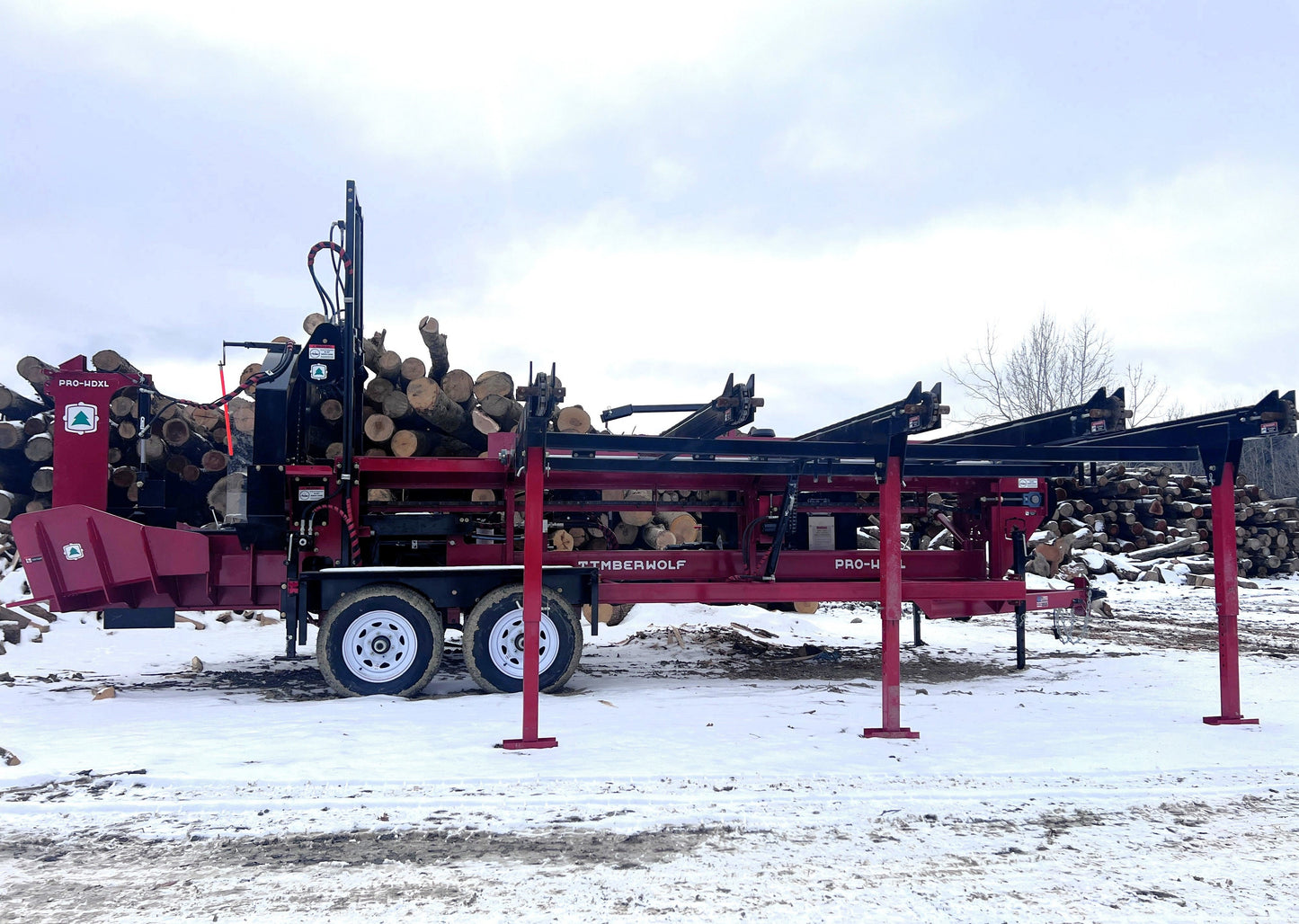

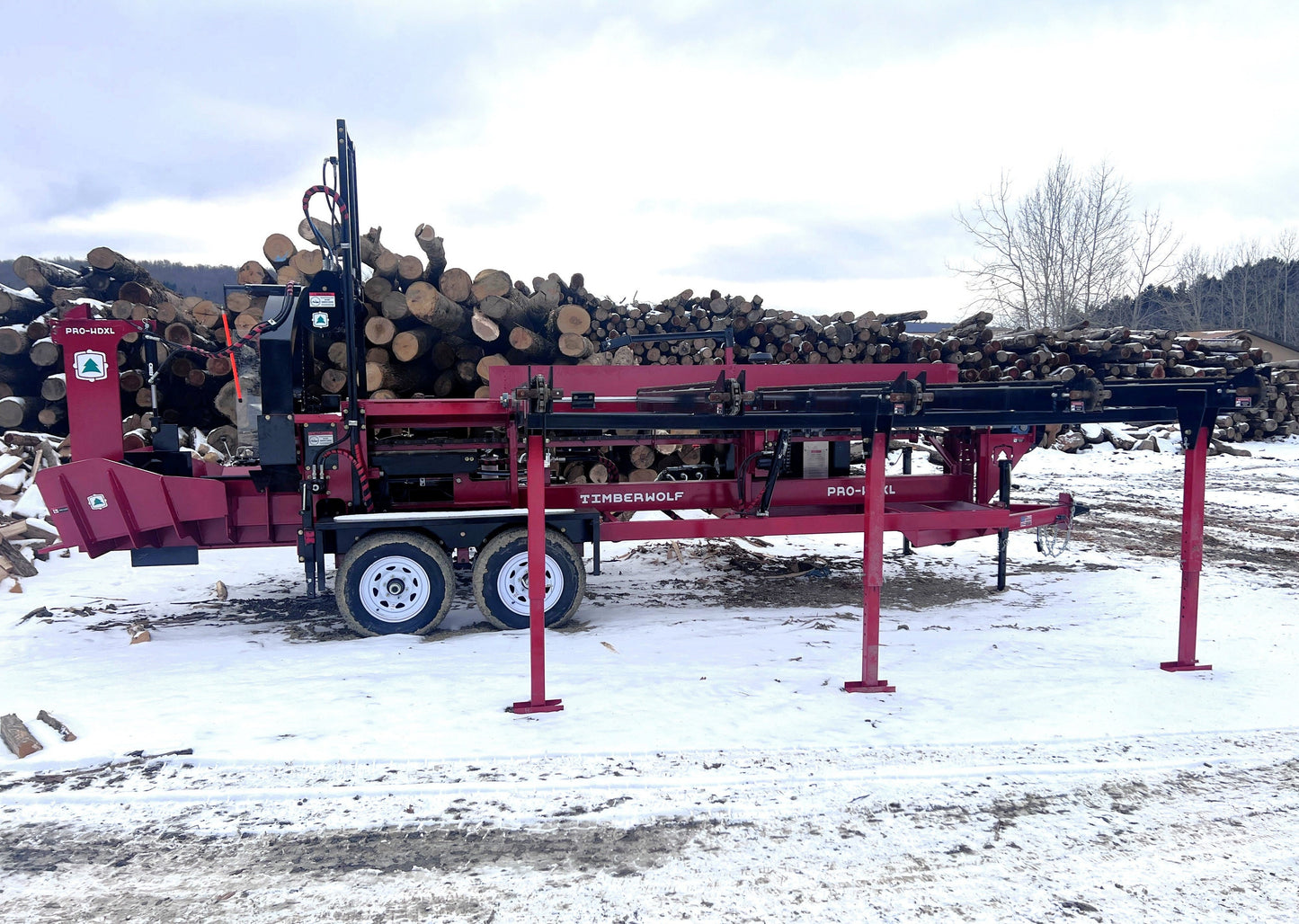

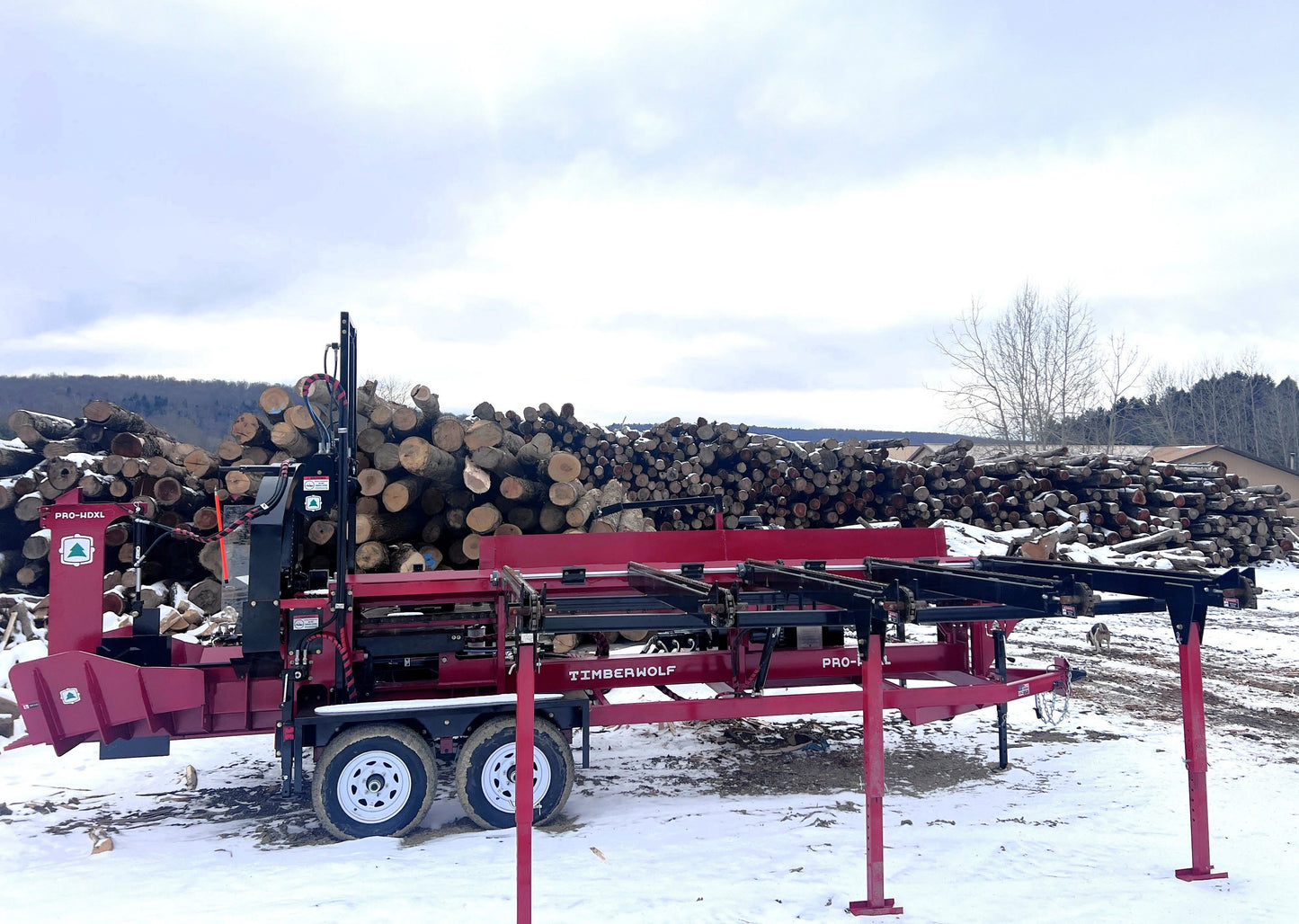

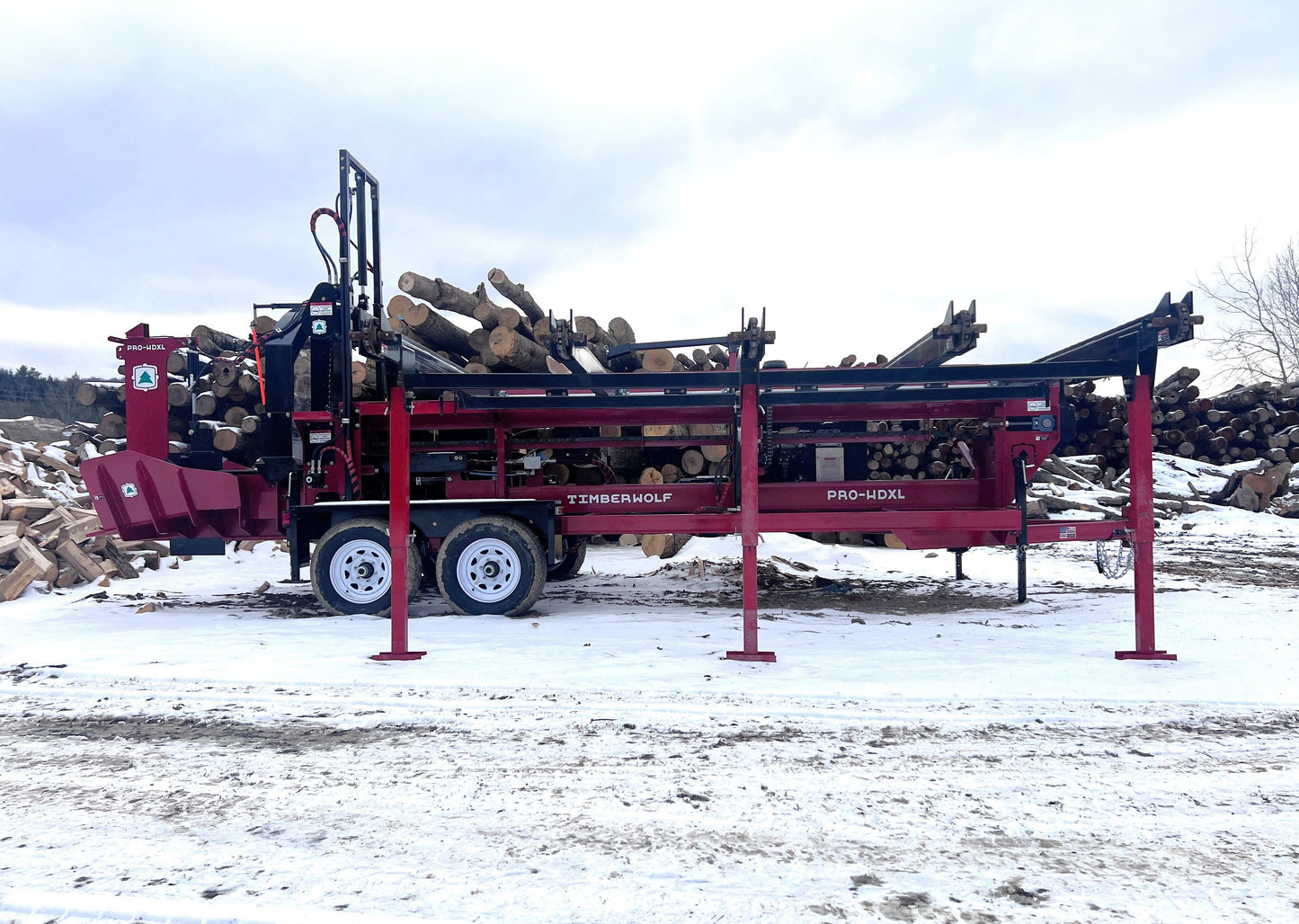

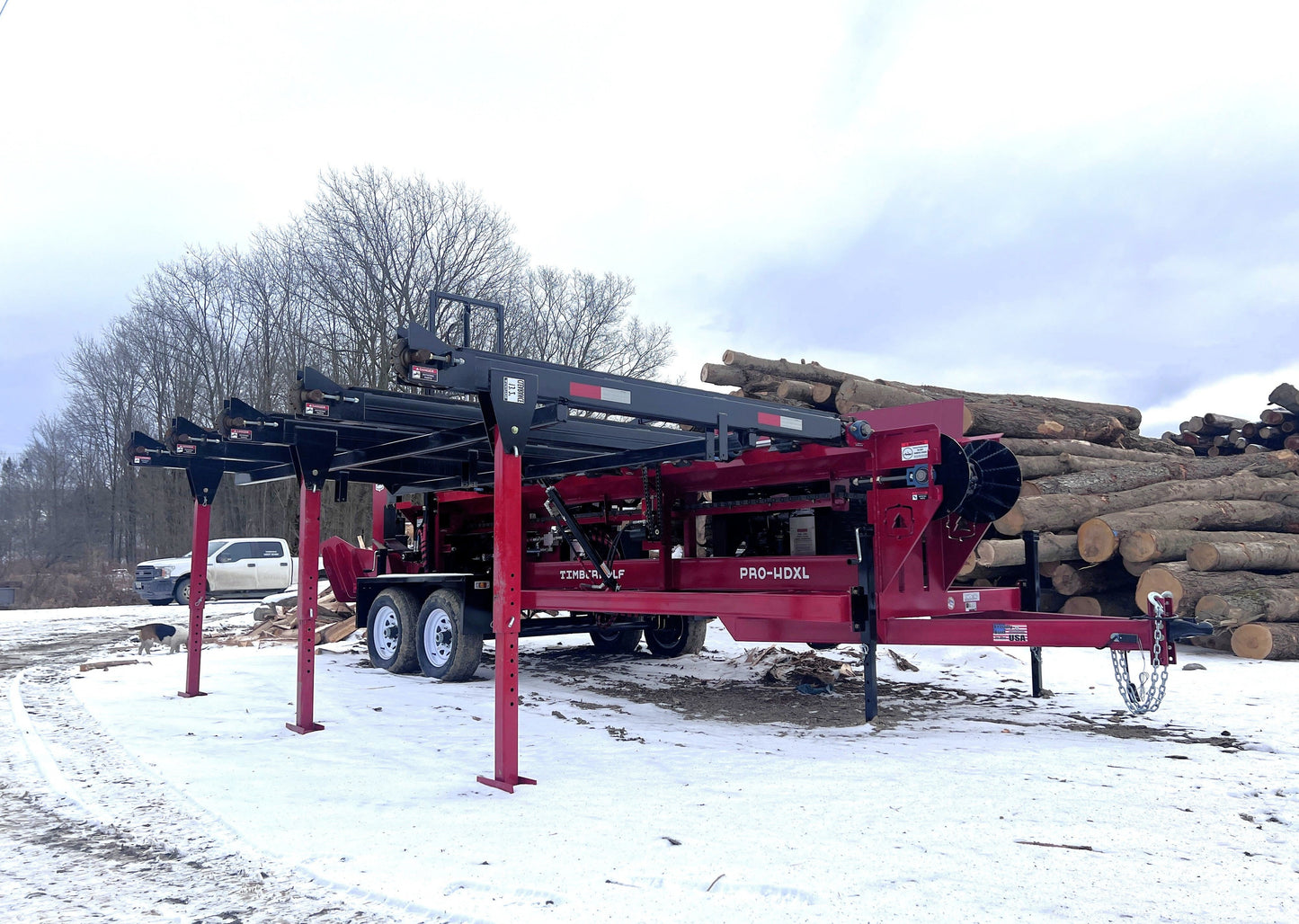

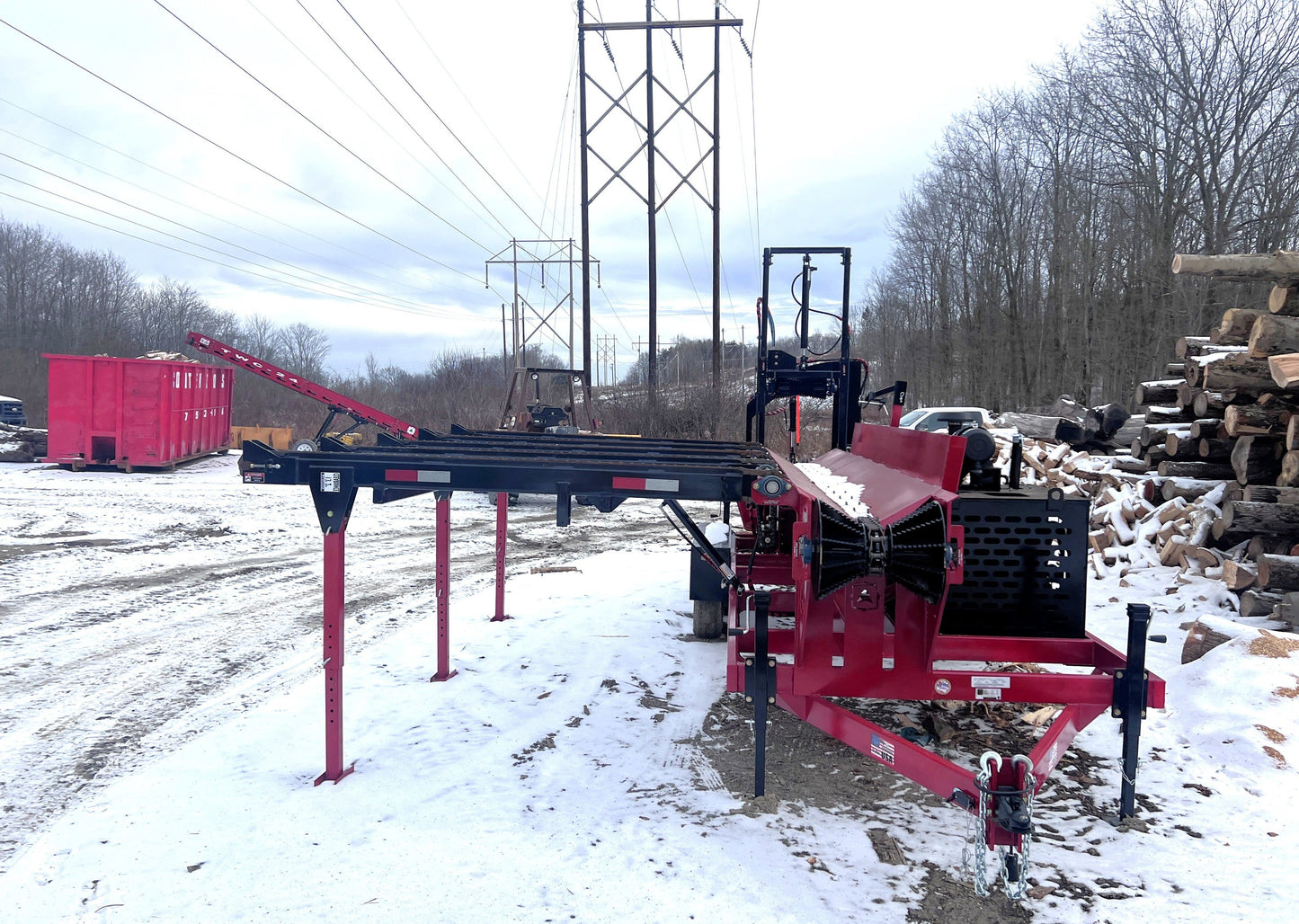

Photos show optional 5-Strand Live Deck.

Regular price $99,995.95 USD
Regular price Sale price $99,995.95 USD
Sale Sold out
Shipping calculated at checkout.
Cylinder Options
Live Deck Options
Integrated Conveyor Option
View full details
  • The Pro-HD XL is a commercial firewood processor that takes the tried and true frame and features of the Pro-HD and amplifies the power and speed of the wood processor’s functions with a 74 HP Hatz diesel engine. Yup, not only can the Pro-HD XL handle 24” diameter logs and logs longer than 32’, but it can do it with a cycle time as low as 3 seconds, which results in outputting 4+ cords per hour.
  • The Pro-HD XL industrial firewood processor is designed to handle logs larger than 32’ thanks to its hourglass-shaped back roller and Timberwolf's driven top roll clamping system. With 1,000 pounds of pressure, the driven roller clamp can handle even crooked logs. When set to "float," it applies 300 pounds of pressure, allowing for easy adjustments to ensure precise cuts every time.
  • The hourglass-shaped back roller of the log processor is designed to guide logs toward the top roll clamping system. Equipped with teeth, the back roller can effectively manipulate the logs’ positioning by moving them either forward or backward for adjustments. This allows operators to feed logs longer than 32’ with the feed trough via two driven rollers, and then secure forward-moving logs with the roller clamp for clean and precise firewood processing.

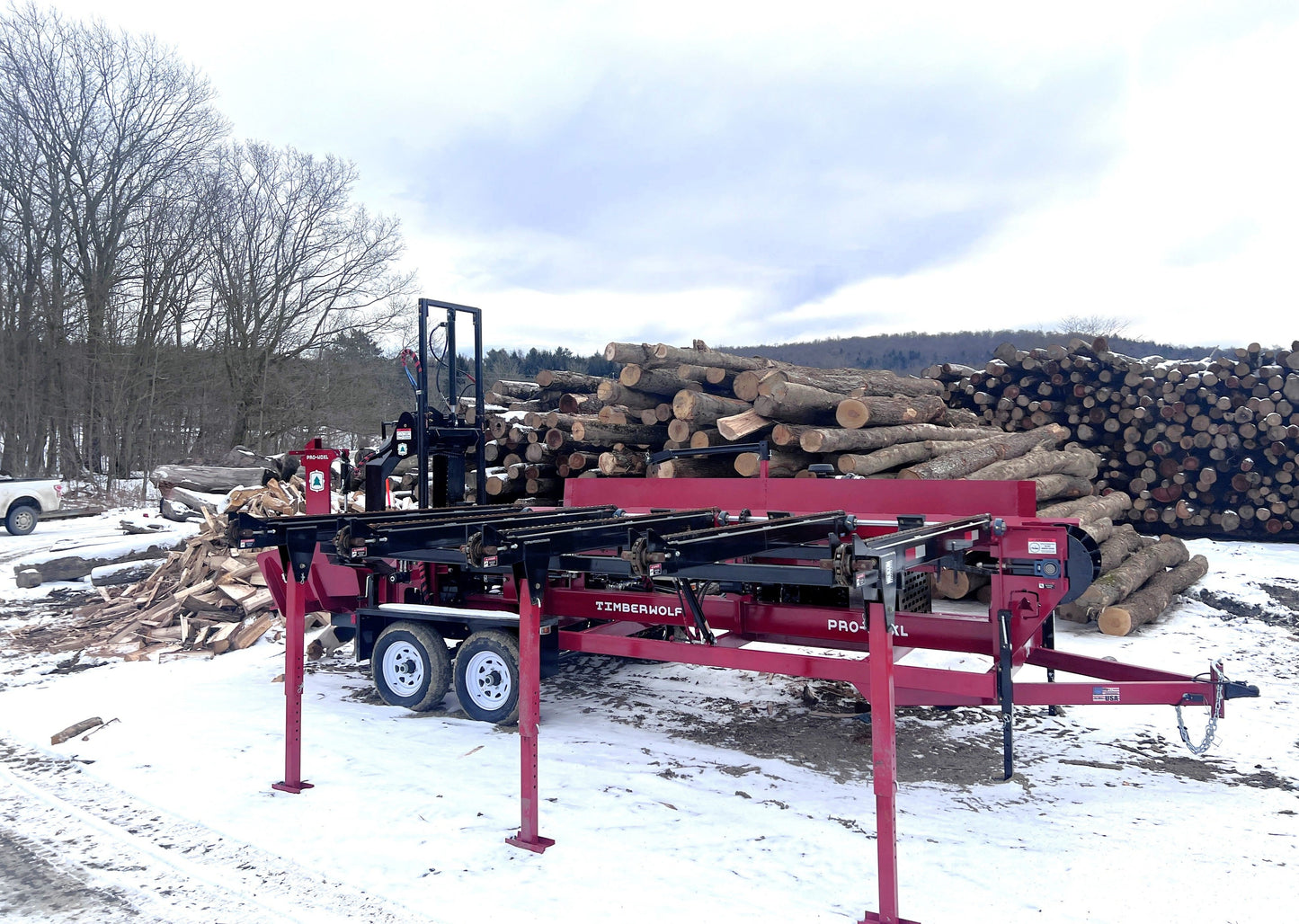

  • The commercial-grade firewood processor comes standard with an 8’ long by 12’ wide 3-strand live deck. The live deck can support a full cord and uses driven roller chains to advance logs onto the feed trough.
  • The commercial firewood processors in our Pro-HD Series are available for sale with a 3-stand live deck as the standard option. However, you also have the option to upgrade to a 5-stand live deck which offers enhanced capability for handling small and/or crooked logs. This is due to the larger surface area it provides, allowing better support for logs that may otherwise fall off or slip through a 3-strand live deck.
  • Both of these live deck options are equipped with a hydraulic lift to make setting up simple. Additionally, the live deck can be stored in a vertical position using the stow bar for transportation.
  • Like all Timberwolf wood processors, the Pro-HD XL can use a 4” or 5” cylinder. But, because of the regeneration manifold and 2:1 cylinder ratio, the fast wood processor’s push block cylinder will cycle every 3/4.5 seconds. The speed of the log processor allows operators to output 4 cords or more per hour.
  • The 74 HP log processor with a chainsaw is equipped with a Permco gear pump, which operates in three stages to control various functions. Each stage has a different pump flow rate, enabling faster and more powerful simultaneous operations throughout the machine.
  • Our firewood splitting wedges are made from AR400 steel, known for their durability and resistance to wear and abrasion. Whether you choose our 4-Way, 6-Way, 8-Way, or 12-Way Wedge, these firewood processing knives will retain their splitting performance, maintaining the same quality as during their first split even after 10,000 splits.

You CAN Afford a Pro-HD XL!

Available Inventory

Ready to bring home your own Pro HD XL? Machines are in stock at Timberwolf Certified Dealers across North America.
Find a Dealer

Innovative Firewood Machinery

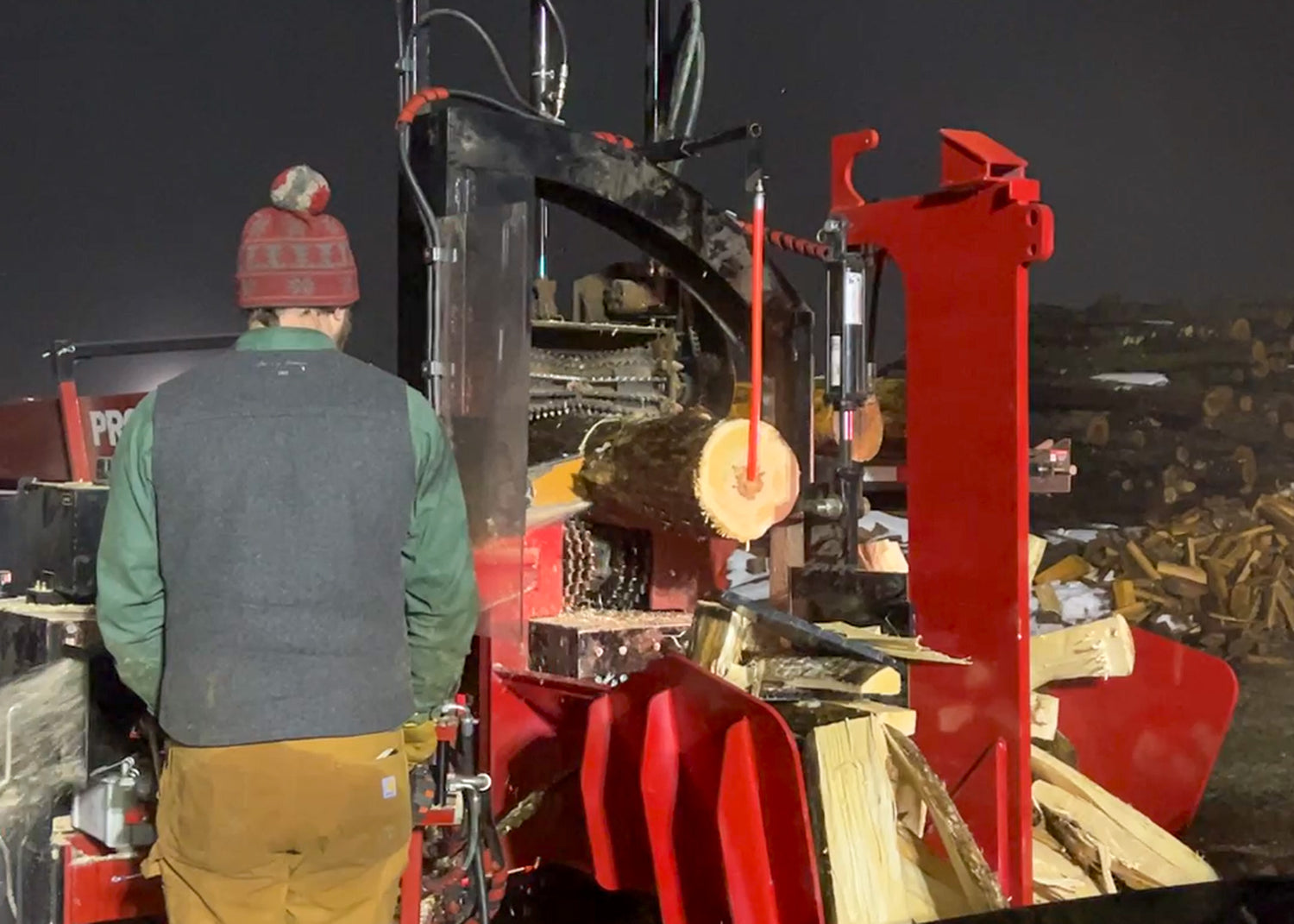

Our patented top roll clamping system allows operators to process 32' long logs through a 16' long feed trough. But, how?

The driven top roll clamping system applies 1,000 pounds of downward pressure on logs being processed, which is enough pressure to leave a few feet of the log hanging off the back roller with full security.

No more cutting down logs before processing them, just get right down to business.

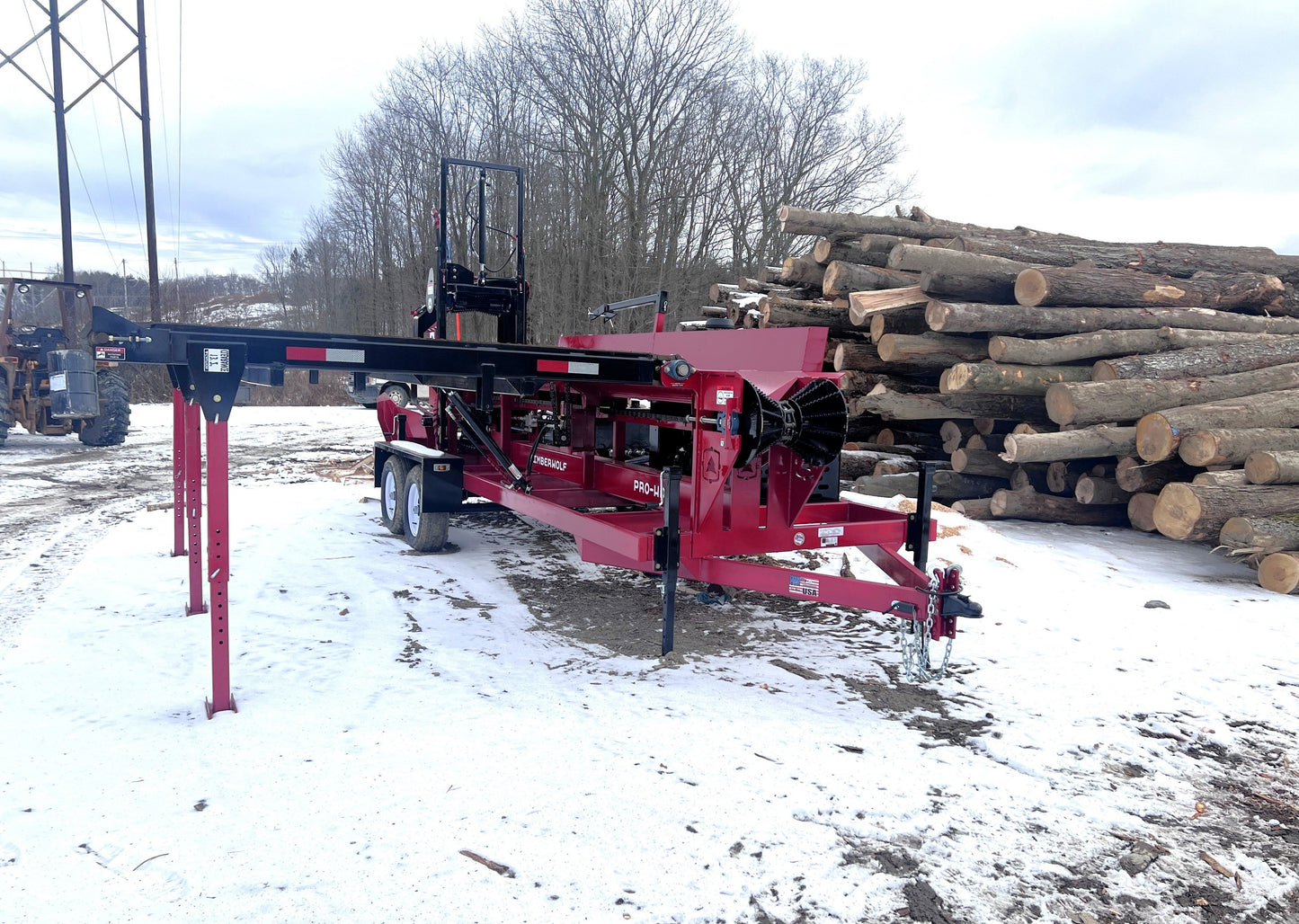

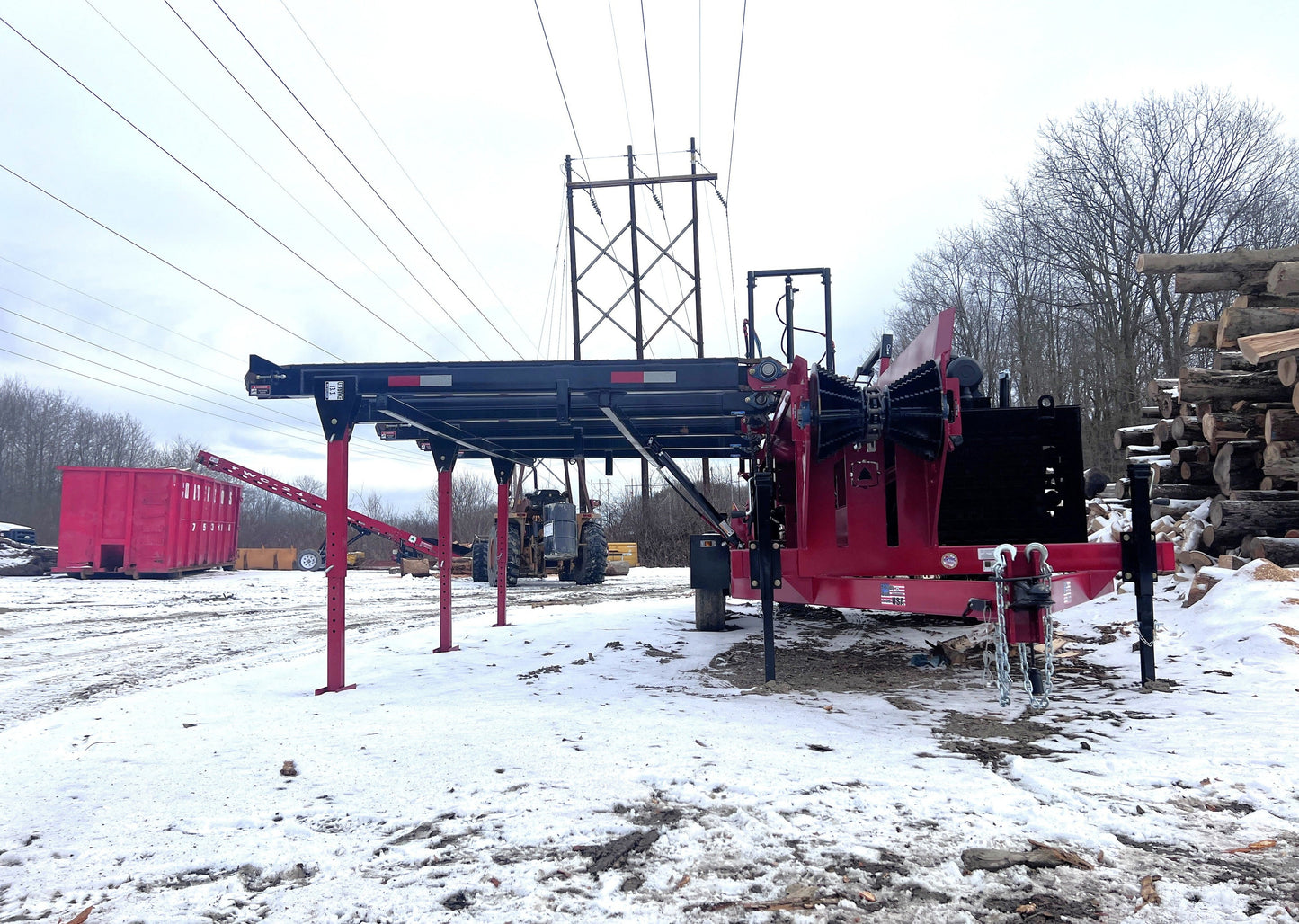

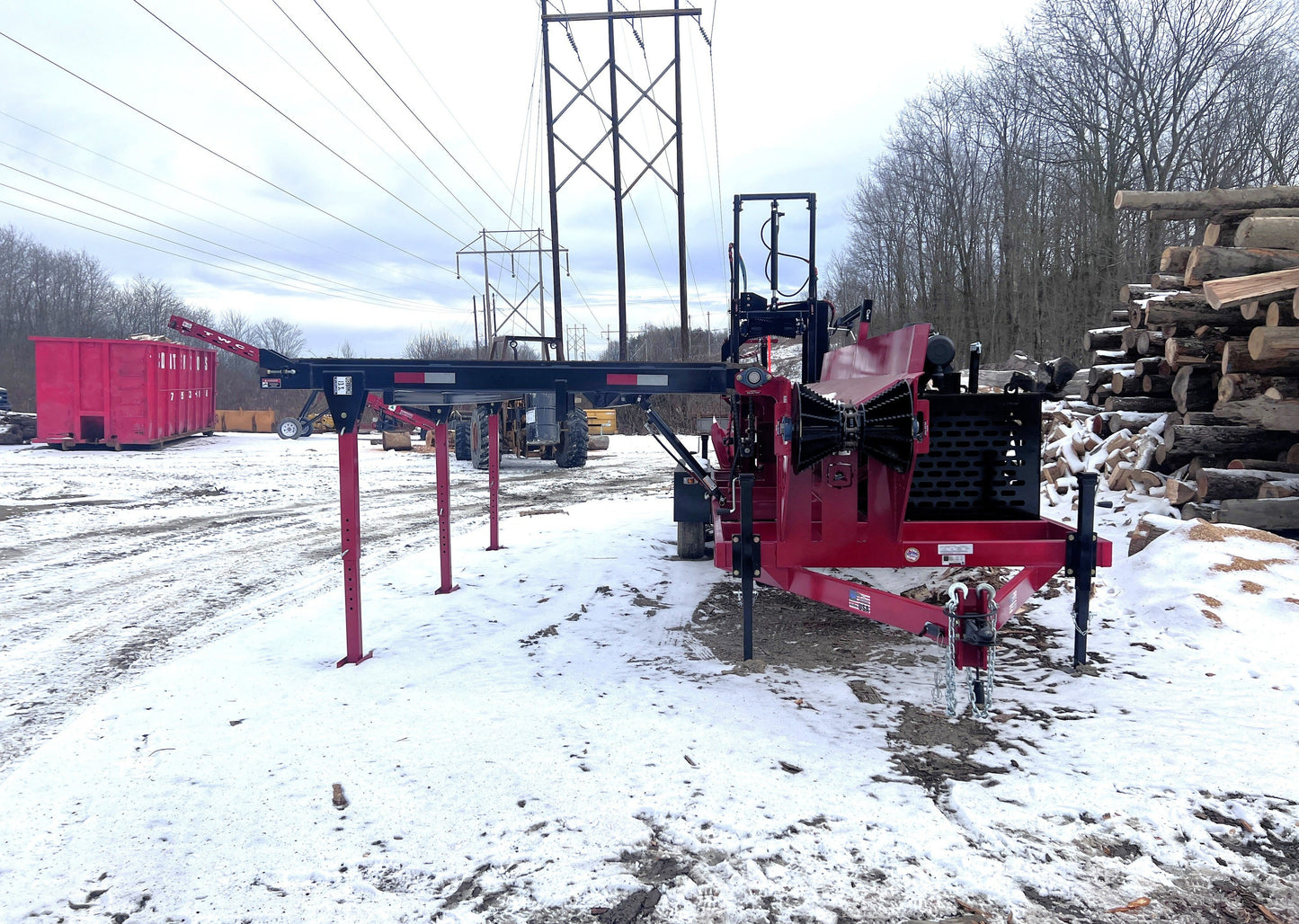

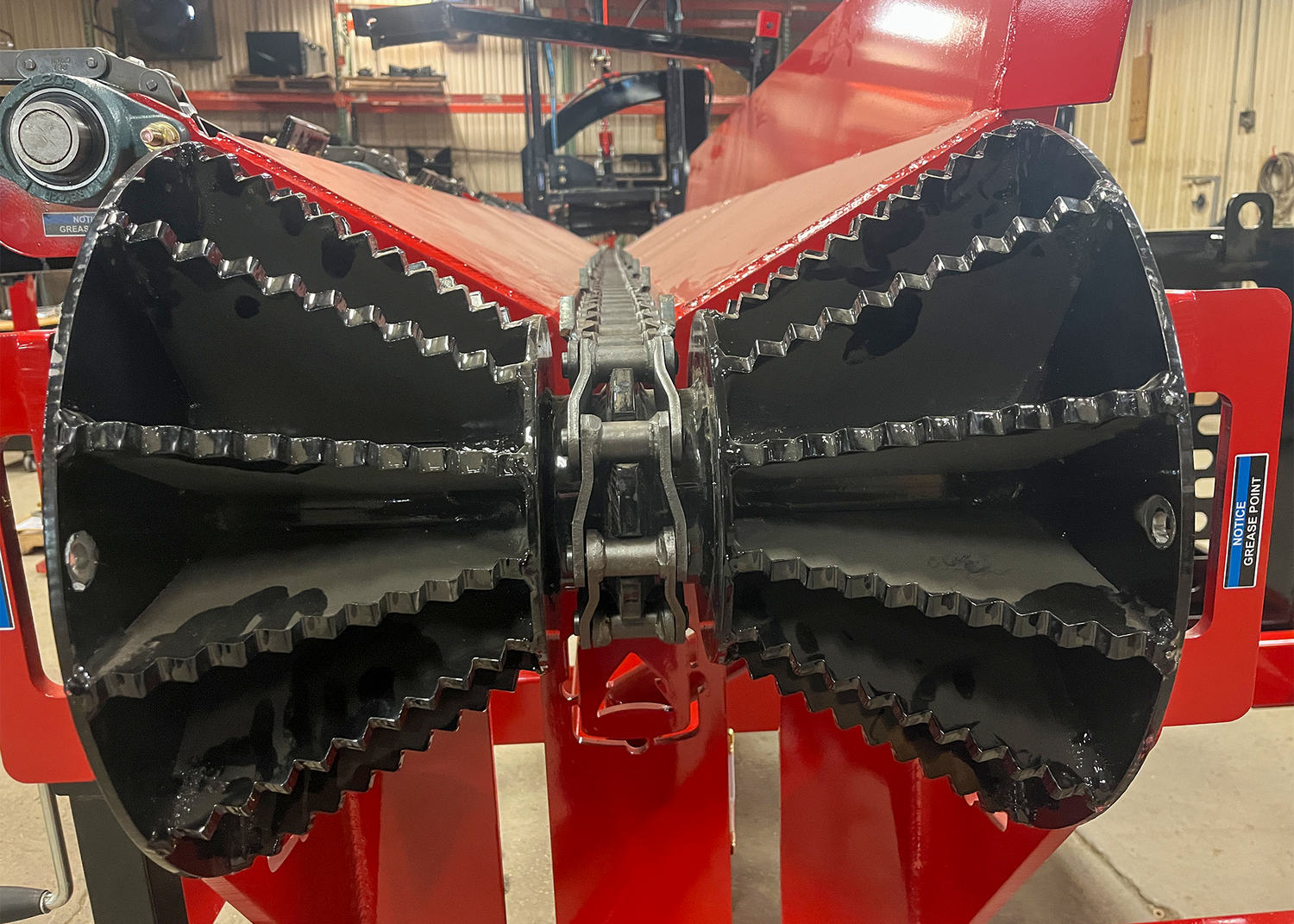

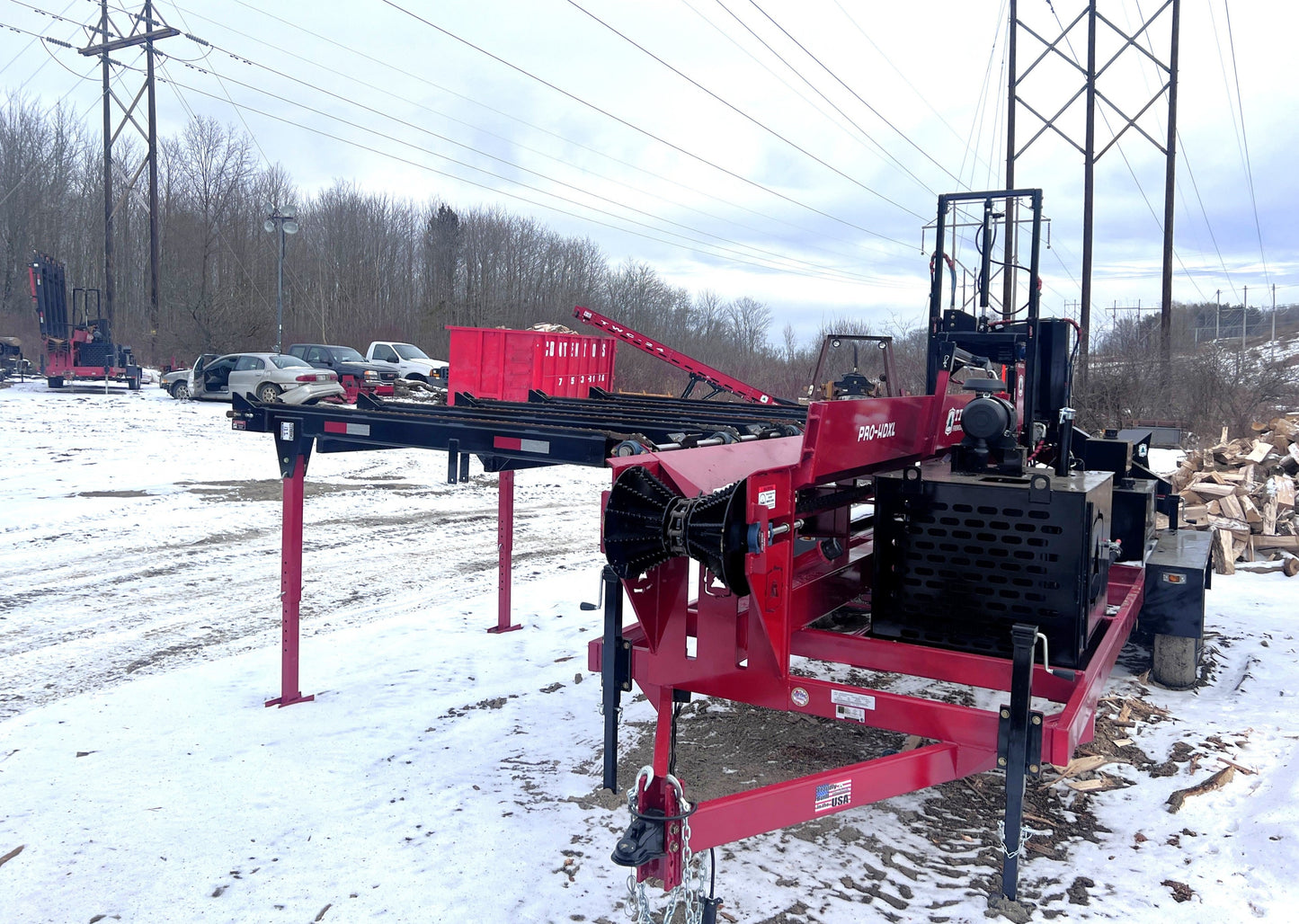

Processor Back Roller for Long Logs

Enhanced Traction on Forward-Moving Logs

The Pro-HD XL processor's hourglass-shaped back roller feeds logs toward the top roll clamping system. The back roller's teeth engage logs and can move them forward or backward for adjustments, so operators can position forward-moving logs with the top roll clamping system for a clean and quick cut.

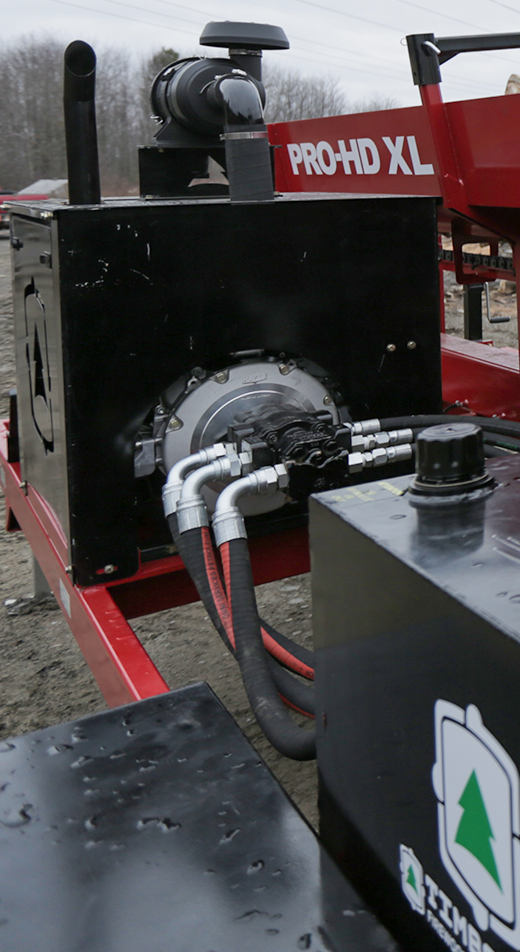

Permco Firewood Processor

Pump Flows For Performance

A 3-stage Permco gear pump controls various functions of the firewood processor with a chainsaw. The first stage has a pump flow of 33 GPM and powers the splitter. The second stage has a pump flow of 22 GPM and powers the saw. The third stage controls the auxiliary functions of the Pro-HD XL wood processor, such as the conveyor, live deck, and feed trough, with a pump flow of 14 GPM. These flow rates allow for faster and more powerful operations, from the feed trough to the power saw.

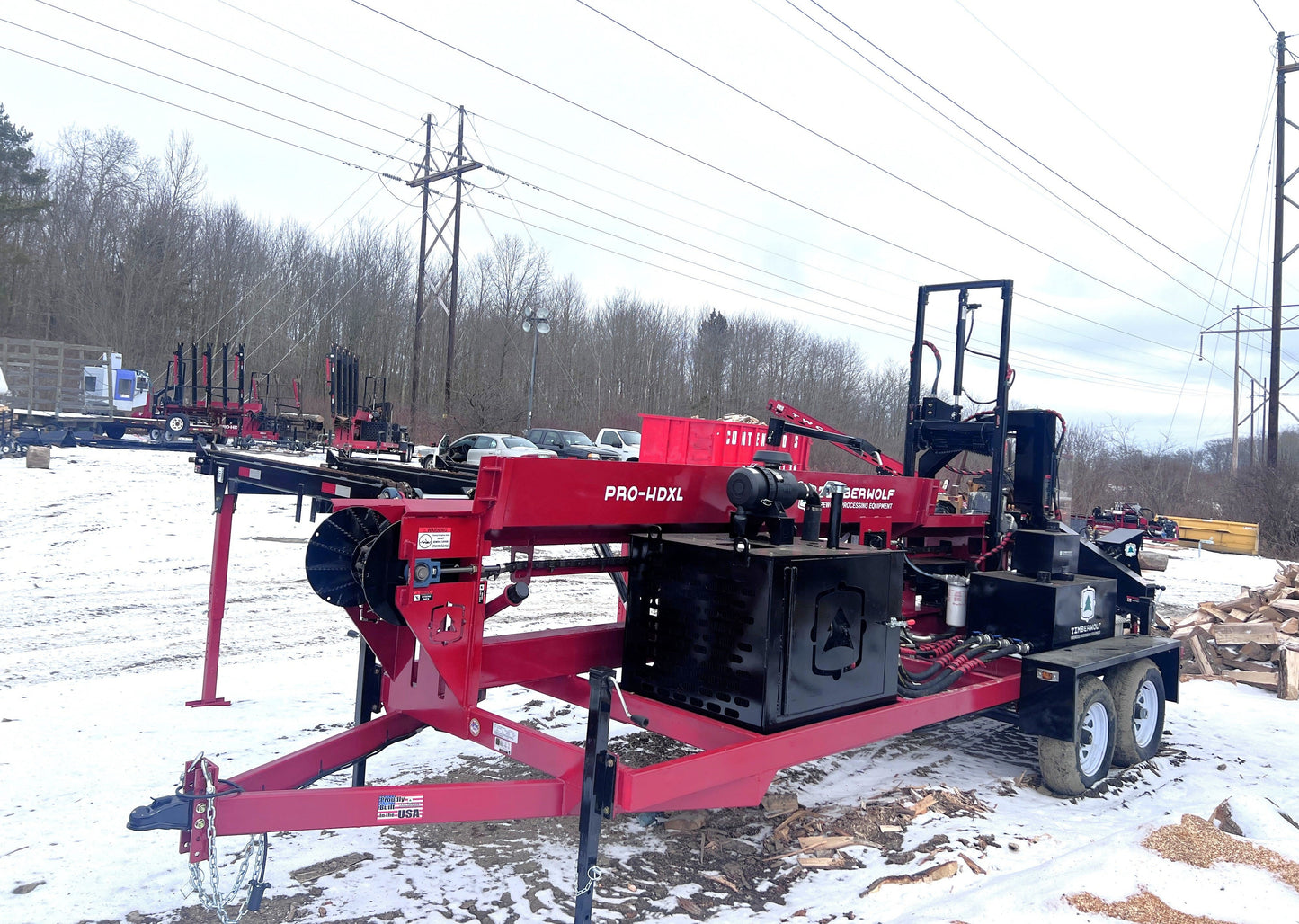

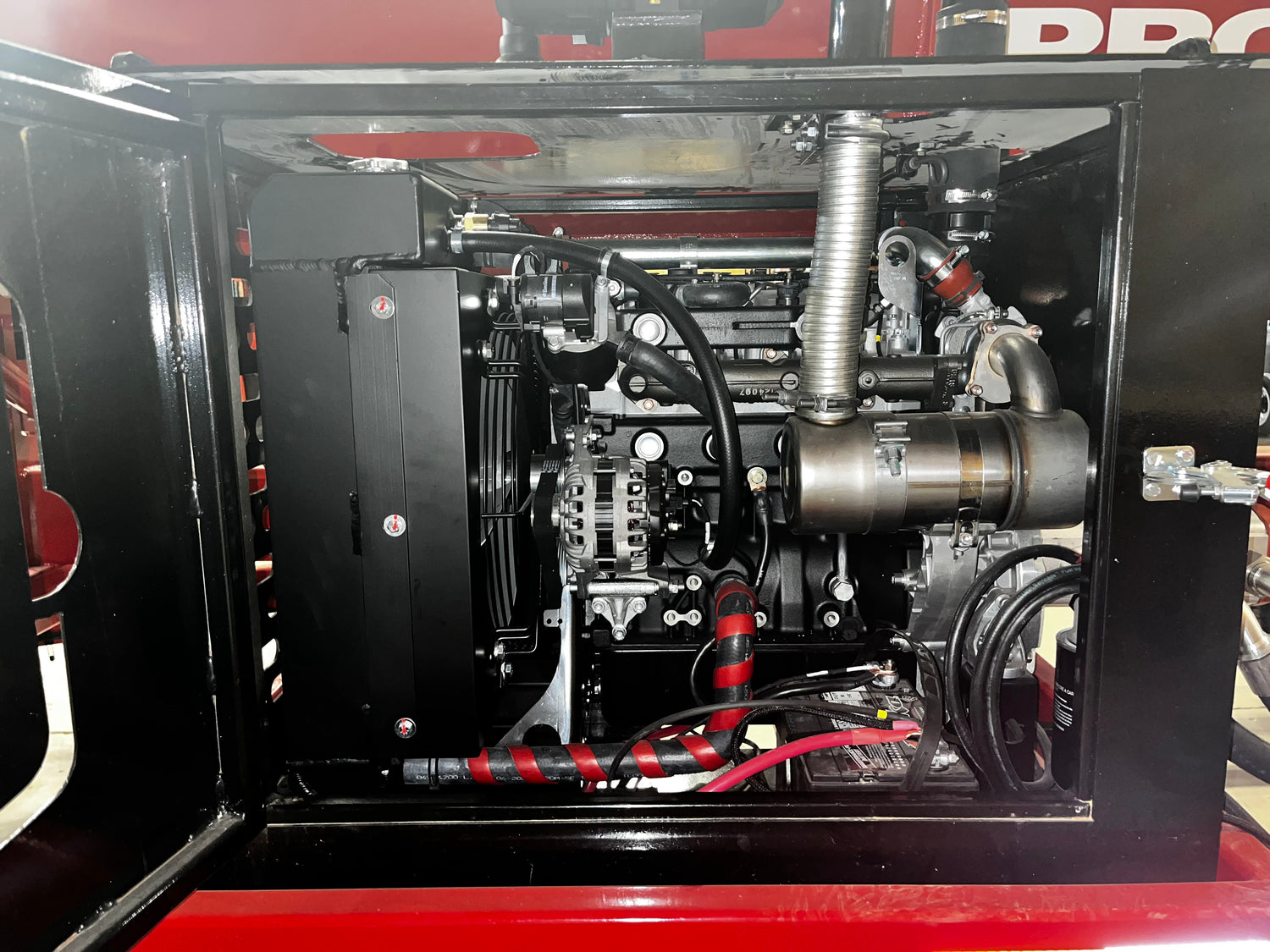

74 HP Diesel Engine

The most powerful of our firewood processor models, the Pro-HD XL runs on a 74 HP Hatz diesel engine. This engine allows for longer run times, which means more production. It drives a 33 GPM splitting pump and provides 3,000 PSI of splitting pressure.

LEARN MORE
Hydraulic Log Processor

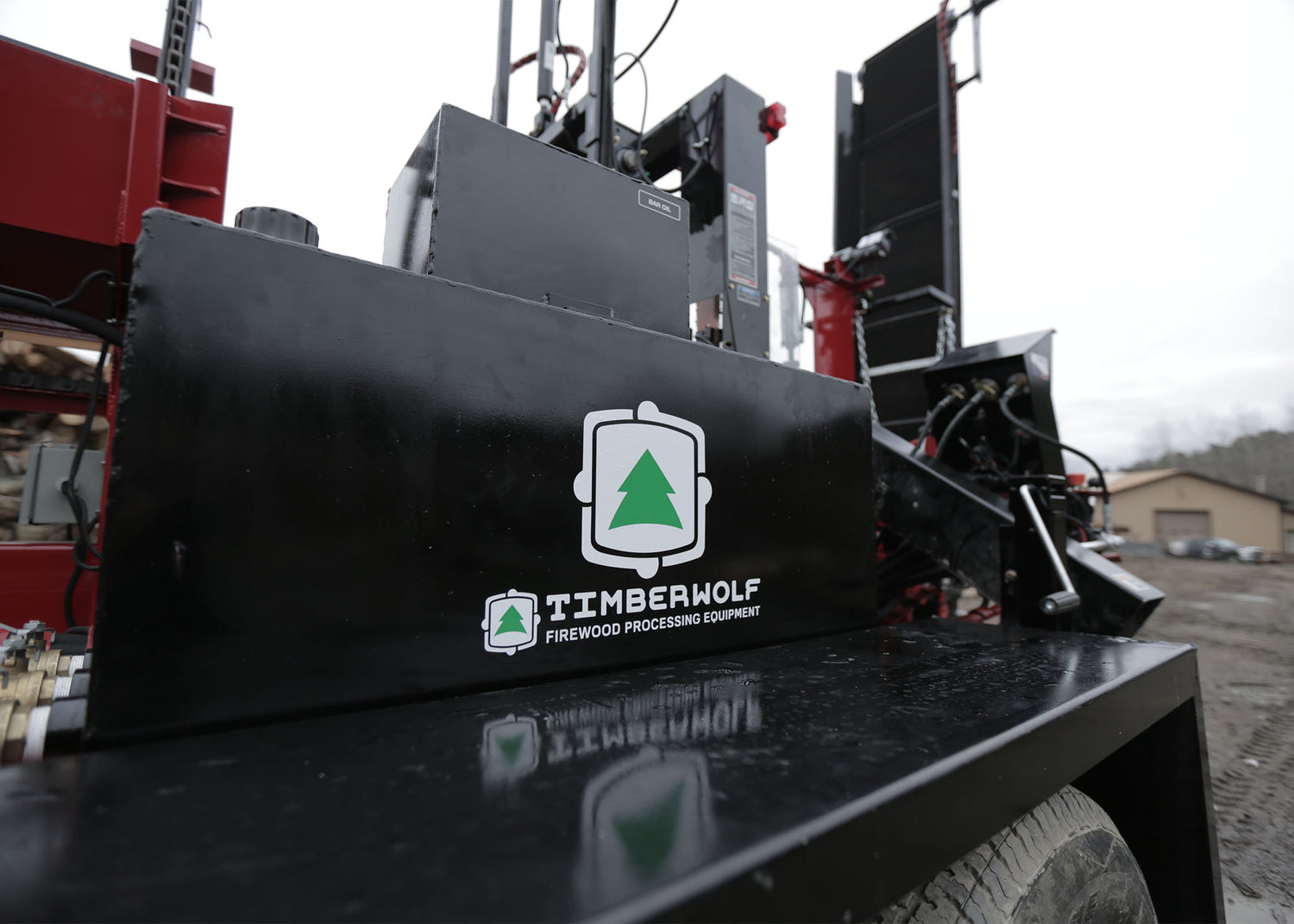

Large Hydraulic Tank

Along with a 74 HP engine, the Pro-HD XL firewood processor has a 70-gallon hydraulic tank. These features combined, allow for maximum power and fast cycle times. The size of the hydraulic tank and filler breather ensures that the contained fluid is cooled and filtered with each stroke, also equipped with internal baffles to eliminate vortices.

Firewood Processor Cycle Time

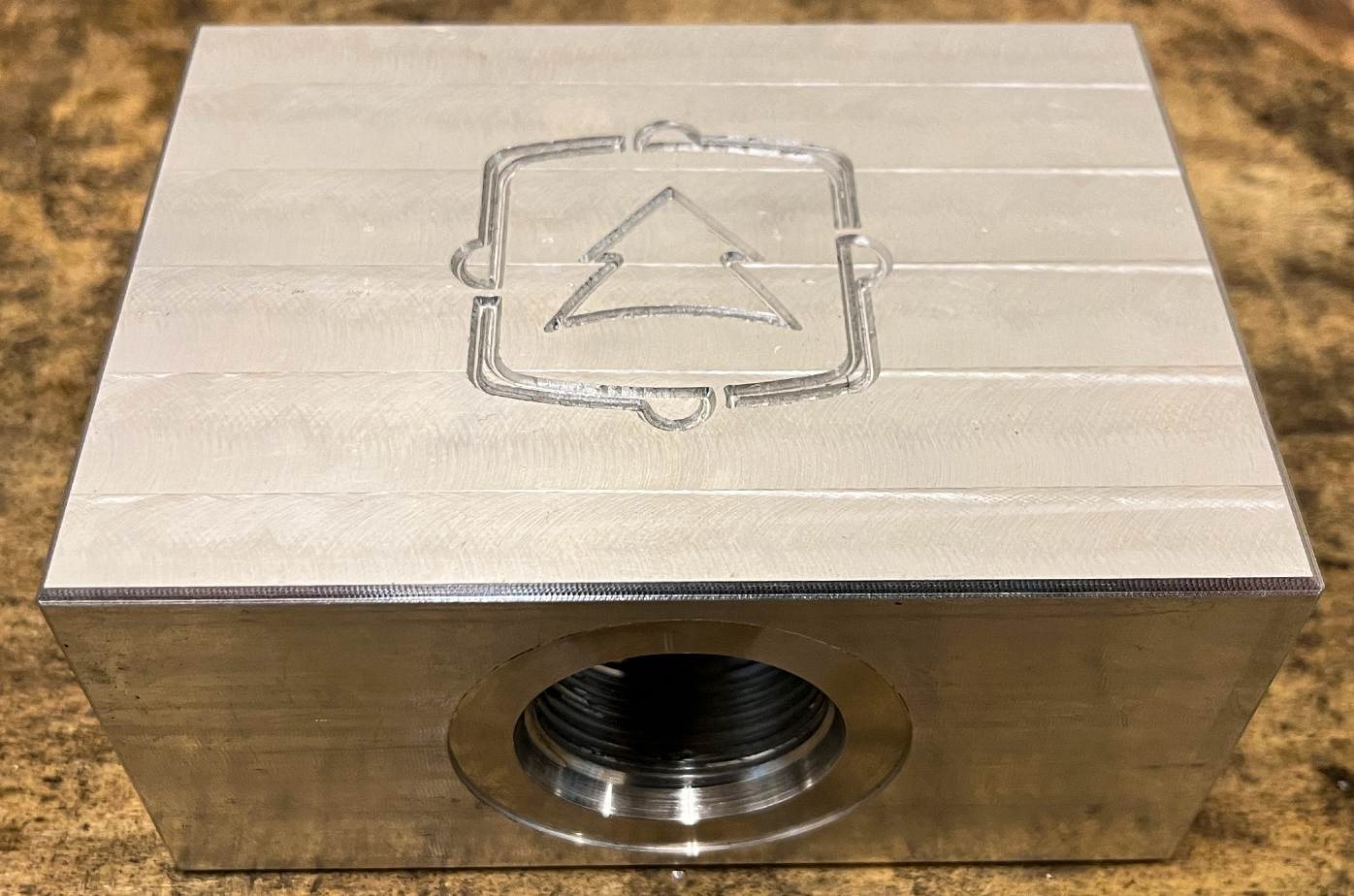

Regeneration Manifold Speed

Equipped to the Pro-HD XL firewood processor, the regeneration manifold drives a regeneration cycle when hydraulics move through the valve. A regeneration cycle is used to decrease the time it takes to extend the rod from the cylinder until it hits the workpiece. This allows a cylinder to be extended more rapidly while using the same pump flow.

In simpler terms, this manifold creates fast cycle times on the wood processor without using more energy.

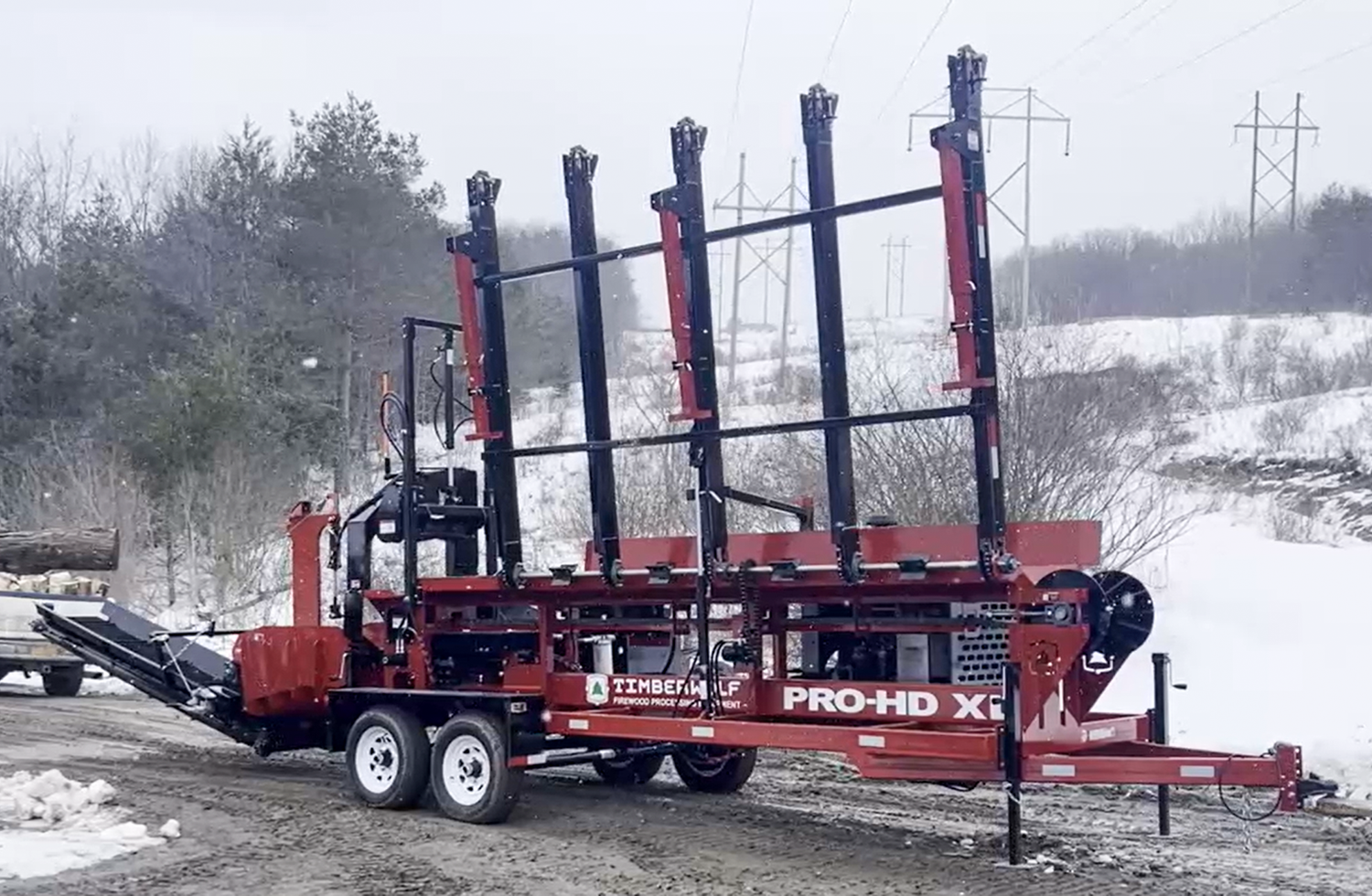

5-Stand Firewood Processor

Why a 5-Strand Live Deck?

Our Pro-HD series firewood processors for sale come standard with a 3-stand live deck, but that can be replaced with a 5-stand live deck.

A 5-stand live deck better handles small and/or crooked logs because of the additional surface area that can support logs that may fall off or through a 3-strand live deck.

Both live deck infeed options are moved via a hydraulic lift and can be stored vertically for transportation.

WATCH VIDEO

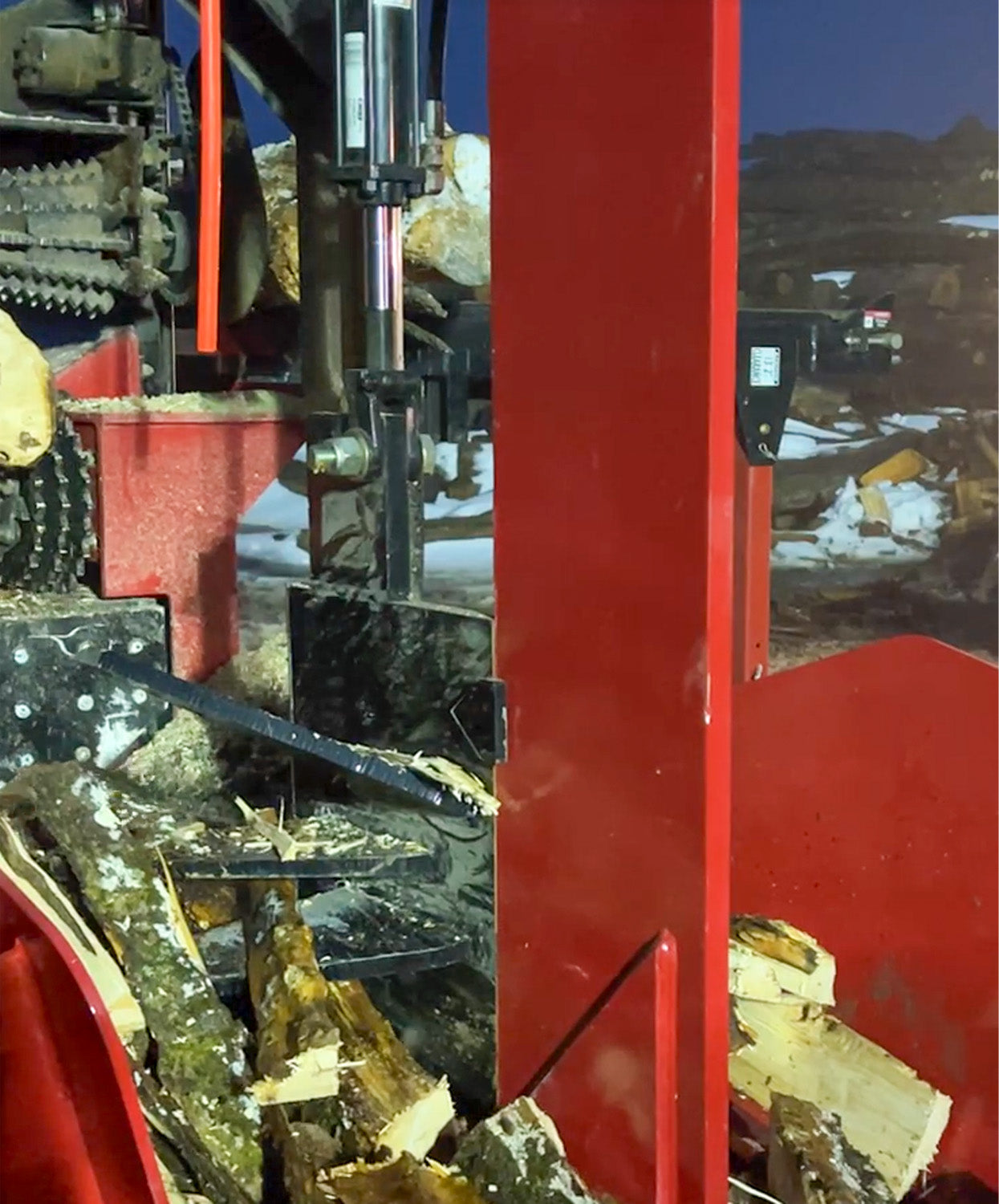

Time-Saving Hydraulic Wedge Lift

With the Pro-HD XL's hydraulic wedge lift operators can raise and lower the firewood processor wedge from the operator's panel. This Pro-HD XL firewood processor function eliminates the need for operators to manually change the wedge height or change out the wedge altogether.

Just size up your block and watch your firewood wedge of choice split the log into uniformly sized firewood. Then do it all again, no matter the size of your block.

Firewood Processor Splitting Wedge

AR400 Steel Constructed Wedges

All of our firewood splitting wedges are constructed from AR400 steel, which is designed for abrasion and wear resistance. Our 4-Way, 6-Way, 8-Way, and 12-Way Wedges will still be splitting with the quality of the first split on their 10,000th split.

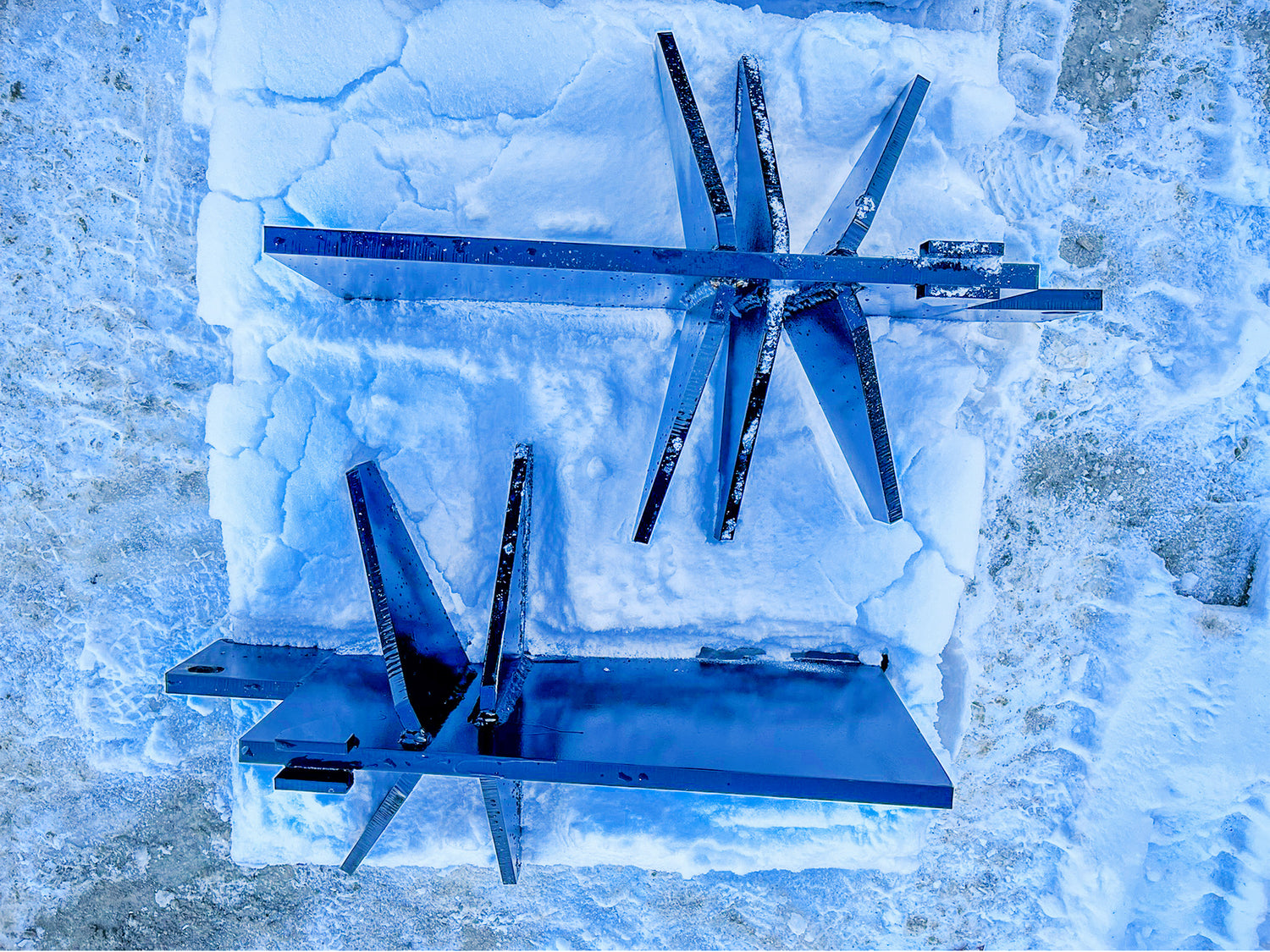

A 6-Way and 8-Way Wedge are shown here.

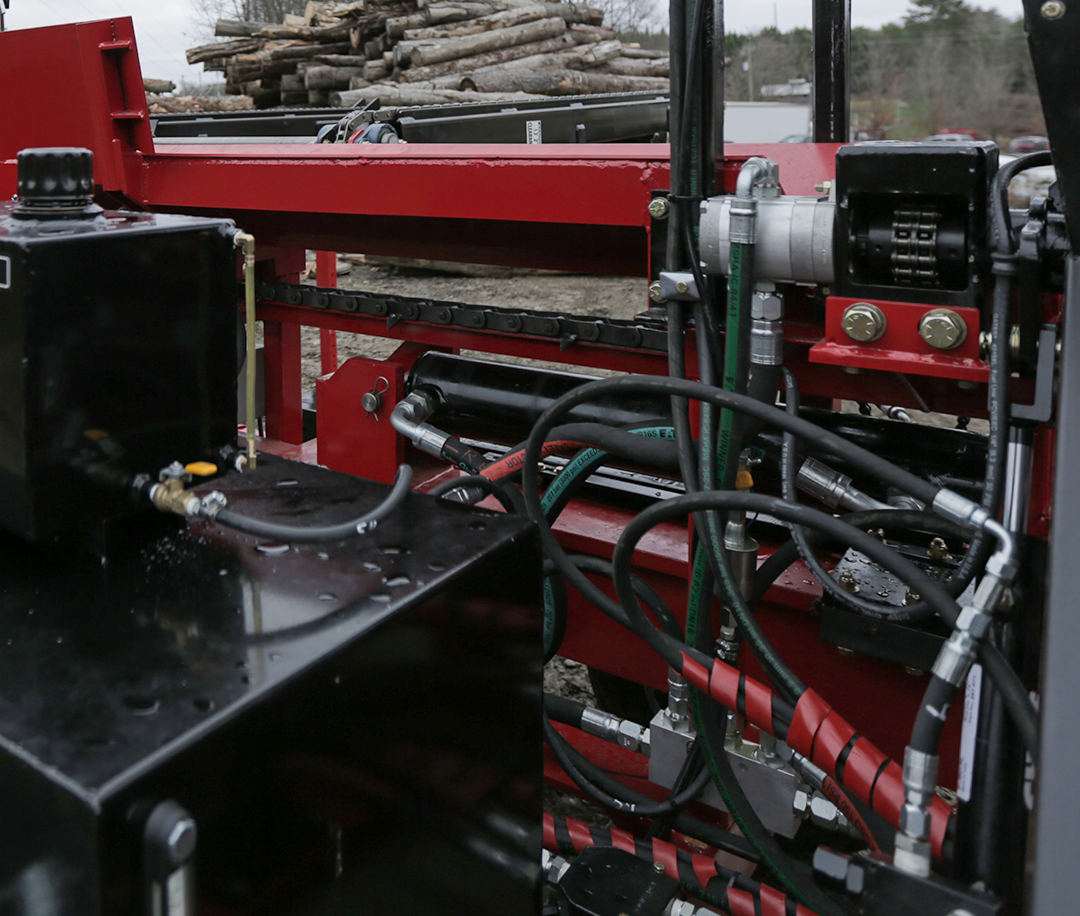

Continental Hydraulic Hoses

Hoses That Handle Everything and More

All Timberwolf firewood processors use Continental hoses to route the flow of hydraulic functions. We use Continental hoses because of their heavy-duty rubber construction, abrasion and kink resistance, and, most importantly, their ability to withstand high-pressure fluids.

Customer safety is a top priority for us, so we use the highest quality materials to ensure your safety.

  • Engine Power (HP) 74
    Pump Flow (GPM) 33-22-14
    Stroke (in) 26
    Trough Length (ft) 16
    Max Log Diameter (in) 24
    Max Log Length (ft) 32
    Cycle Time (sec) 3/4.5
    Average Output (Cord/Hr) 4
    Weight (lbs) 9,200
  • Standard Features

    • Electric autocycle
    • 74 HP Hatz diesel engine
    • 70-gallon hydraulic tank
    • 3-stage Permco gear pump
    • Regen valve
    • Patented driven top roll clamping system
    • Back roller
    • Continental hoses & fittings
    • 3-strand live deck
    • Saw: 25" cut/.404 chain
  • Optional Features

    • Cylinder Options:

    4” bore, 3” rod, 26” stroke

    5” bore, 3.5” rod, 26” stroke

    • 5-strand live deck

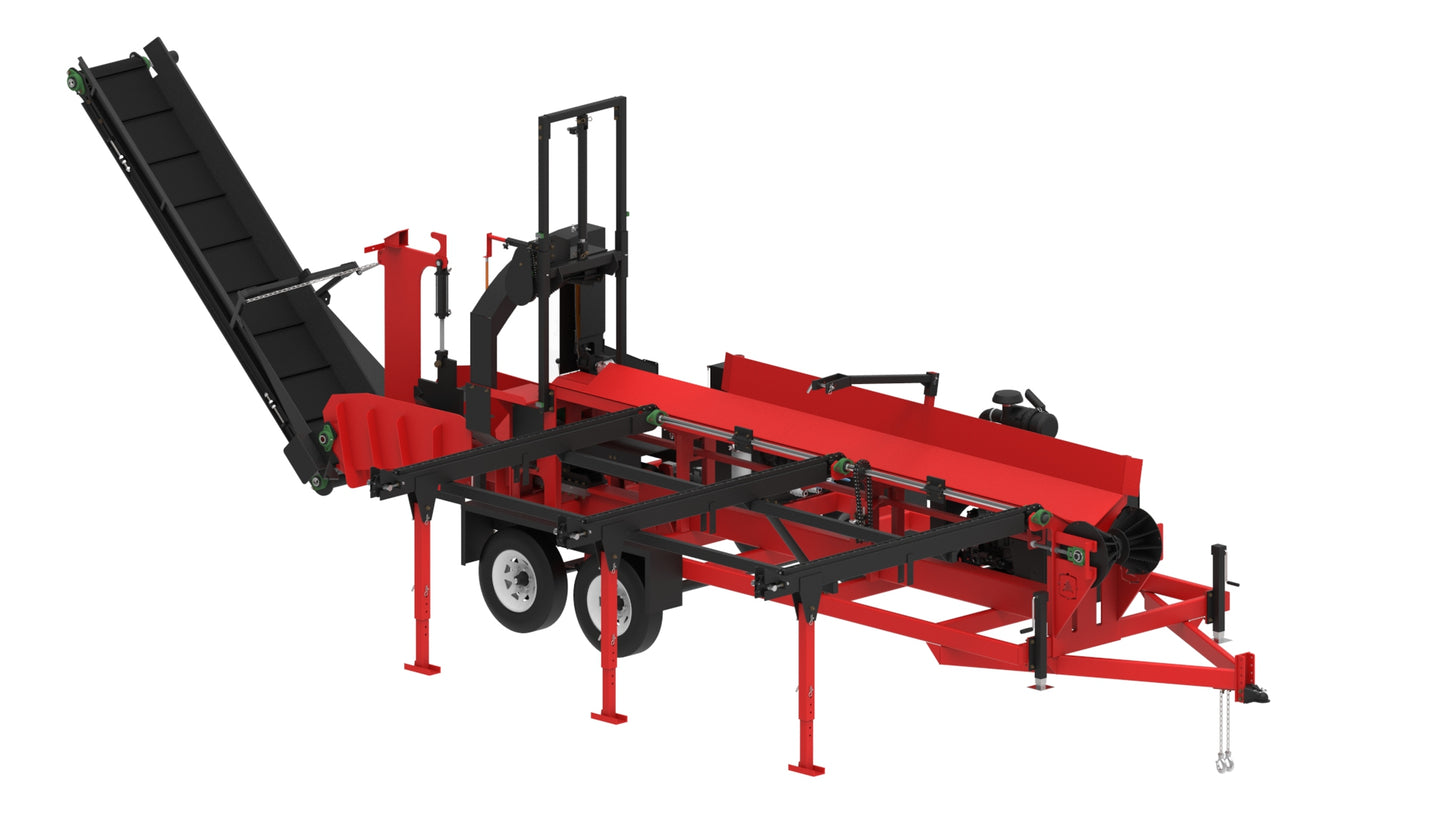

    • Integrated conveyor
  • Integrated Conveyor

    • 12' long with a 10'10" maximum loading height
    • 20" wide paddle belt
    • Fully reversible for simple set up and attachment
